Removal [08/2013 - 08/2016]: Procedure

  1. REMOVE FRONT WHEELS
  2. REMOVE ENGINE UNDER COVER LH
  3. REMOVE ENGINE UNDER COVER RH
  4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID (for CVT)

    Refer to PROCEDURE - Step 5

  5. DRAIN AUTOMATIC TRANSAXLE FLUID (for Automatic Transaxle)

    Refer to PROCEDURE - Step 2

  6. DRAIN MANUAL TRANSAXLE OIL (for Manual Transaxle)

    Refer to PROCEDURE - Step 2

  7. REMOVE FRONT AXLE SHAFT NUT

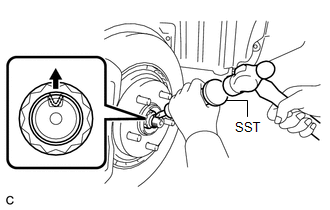

    1. Using SST and a hammer, release the staked part of the front axle shaft nut.
      GTY448760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09930-00010
      NOTE:

      Loosen the staked part of the front axle shaft nut completely, otherwise the threads of the drive shaft may be damaged.

    2. While applying the brakes, remove the front axle shaft nut.
  8. SEPARATE FRONT SPEED SENSOR

    Refer to PROCEDURE - Step 3

  9. SEPARATE TIE ROD END SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. SEPARATE FRONT STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 6

  11. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  12. SEPARATE FRONT DRIVE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

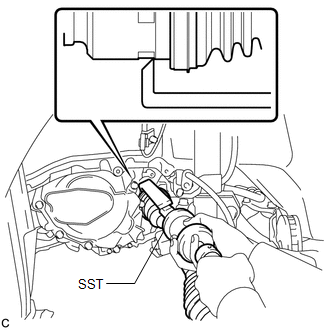

    1. Using SST, remove the front drive shaft assembly LH.
      GTY451160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09520-01010
      • SST: 09520-24010
        1. 09520-32040
      NOTE:
      • Do not damage the front drive shaft oil seal LH.
      • Do not damage the front axle inboard joint boot.
      • Do not drop the front drive shaft assembly LH.
  14. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

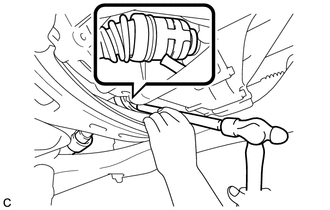

    1. Using a brass bar and hammer, remove the front drive shaft assembly RH.
      GTY205031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not damage the front drive shaft oil seal RH.
      • Do not damage the front axle inboard joint boot.
      • Do not drop the front drive shaft assembly RH.
  15. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING
    1. Using a screwdriver, remove the front drive shaft hole snap ring.
      GTY106453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
