Removal [08/2013 - 08/2016]: Procedure

Refer to PROCEDURE - Step 6

1. Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the automatic transaxle oil pan sub-assembly.
2. Drain automatic transaxle fluid from the automatic transaxle assembly.
3. Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the automatic transaxle oil pan sub-assembly.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

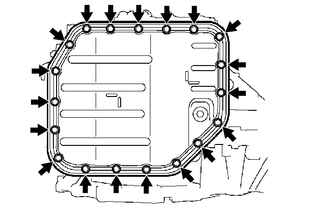

1. Remove the 19 bolts and automatic transaxle oil pan sub-assembly from the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Some fluid will remain in the automatic transaxle oil pan sub-assembly. Remove all the bolts and carefully remove the automatic transaxle oil pan sub-assembly.

2. Remove the automatic transaxle oil pan gasket from the automatic transaxle oil pan sub-assembly.
3. Remove the 2 transmission oil cleaner magnets from the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Oil Cleaner Magnet

4. Examine the particles in the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Collect any steel chips with the removed transmission oil cleaner magnets. Look carefully at the chips and particles in the automatic transaxle oil pan sub-assembly and on the transmission oil cleaner magnets to see the type of wear which might be found in the automatic transaxle assembly.

      Result

      Steel (magnetic)

      Bearing, gear and plate wear

      Brass (non-magnetic)

      Bushing wear

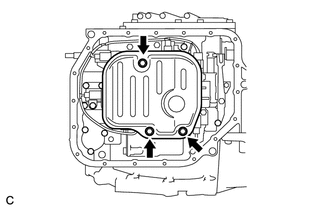

1. Remove the 3 bolts and valve body oil strainer assembly from the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Perform the operation carefully as some fluid will come out from the valve body oil strainer assembly.

2. Remove the oil strainer gasket from the valve body oil strainer assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Oil Strainer Gasket

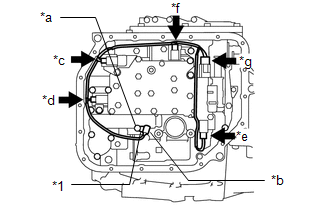

1. Disconnect the shift solenoid valve S1 connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Temperature Sensor Clamp
   *a	Bolt
   *b	ATF Temperature Sensor
   *c	Shift Solenoid Valve S1 Connector
   *d	Shift Solenoid Valve S2 Connector
   *e	Shift Solenoid Valve SLU Connector
   *f	Shift Solenoid Valve ST Connector
   *g	Shift Solenoid Valve SLT Connector

2. Disconnect the shift solenoid valve S2 connector.
3. Disconnect the shift solenoid valve SLU connector.
4. Disconnect the shift solenoid valve ST connector.
5. Disconnect the shift solenoid valve SLT connector.
6. Remove the bolt, temperature sensor clamp and ATF temperature sensor from the transmission valve body assembly.

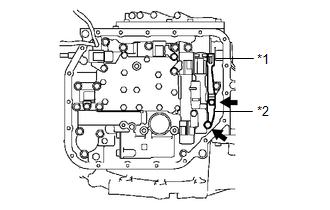

7. Remove the 2 bolts, manual detent spring cover and manual detent spring sub-assembly from the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Manual Detent Spring Sub-assembly
   *2	Manual Detent Spring Cover

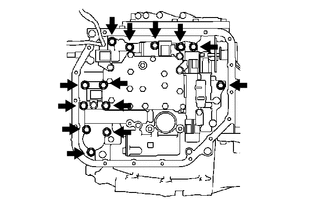

8. Remove the 13 bolts and transmission valve body assembly from the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not drop the check ball body, check ball body compression spring, B-2 accumulator piston, C-2 accumulator piston or C-3 accumulator piston.

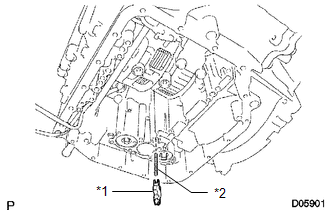

9. Remove the check ball body and check ball body compression spring from the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Check Ball Body
   *2	Check Ball Body Compression Spring

See step  13

See step  14

See step  15

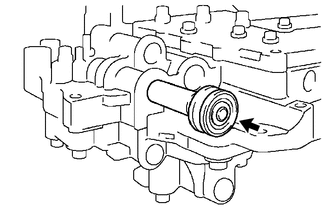

1. Remove the manual valve from the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
