Replacement [08/2013 - ]: Procedure

Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6

1. Stop the vehicle in a level place.
2. Remove the manual transmission filler plug and gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

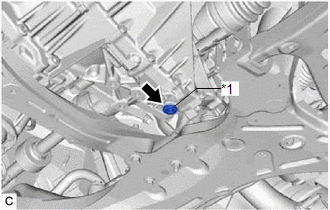

   *1	Manual Transmission Filler Plug

3. Using a 10 mm hexagon socket wrench, remove the manual transmission drain plug and gasket to drain the manual transaxle oil.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

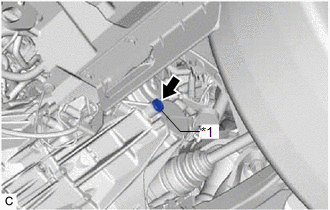

   *1	Manual Transmission Drain Plug

4. Using a 10 mm hexagon socket wrench, install a new gasket and the manual transmission drain plug.

   Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

1. Add manual transaxle oil until the oil level is between 0 and 5 mm (0.197 in.) from the bottom lip of the manual transmission filler plug opening.

   Manual Transaxle Oil

   "TOYOTA Genuine Manual Transmission Gear Oil LV" or "API GL-4 and SAE 75W"

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   0 to 5 mm

   Standard Capacity

   2.4 liters (2.5 US qts, 2.1 Imp.qts)

2. Install a new gasket and the manual transmission filler plug.

   Torque: 39.2 N*m (400 kgf*cm, 29 ft.*lbf)

   NOTE:

   • When adding manual transaxle oil, make sure that the vehicle is level.
   • An excessively large or small amount of manual transaxle oil may cause problems.
   • After adding manual transaxle oil, drive the vehicle and recheck the oil level.

Refer to PROCEDURE - Step 84 Refer to PROCEDURE - Step 84 Refer to PROCEDURE - Step 75
