Removal [08/2013 - ]: Procedure

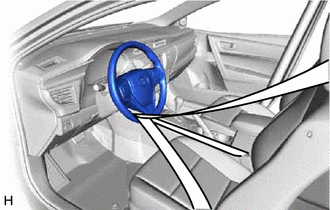

1. Secure the steering wheel with the seat belt in order to prevent rotation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This operation is useful to prevent damage to the spiral cable.

Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9

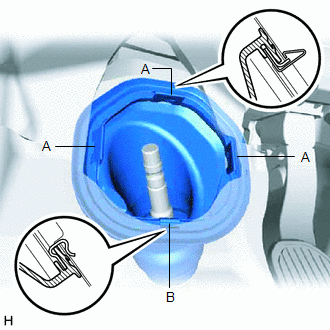

1. Remove the 3 clips (A), disengage the clip (B) from the body and separate the No. 1 steering column hole cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the clips (A) and (B).

1. Remove the cotter pin and nut.

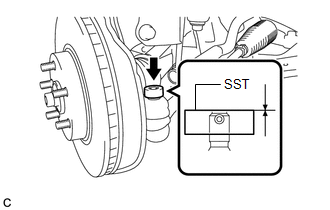

2. Install SST to the tie rod end sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09960-20010
     1. 09961-02060
   NOTE:

   Make sure that the upper ends of the tie rod end sub-assembly LH and SST are aligned.

3. Secure SST using a string.
   NOTE:

   Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.

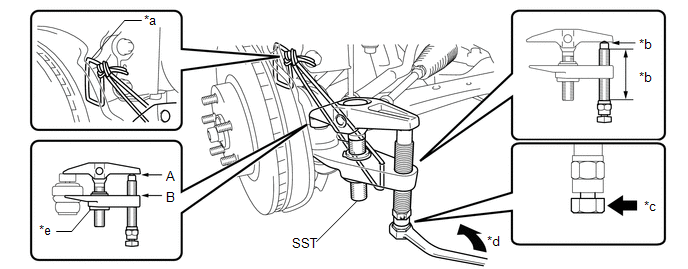

4. Using SST, separate the tie rod end sub-assembly LH from the steering knuckle.
   • SST: 09960-20010
     1. 09961-02010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	String	*b	Molybdenum grease application area
   *c	Place wrench here	*d	Turn
   *e	Center Nut	-	-

   WARNING:

   Apply molybdenum grease to the bolt threads and the tip of SST.

   NOTE:

   • Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
   • Install SST with the center nut so that A and B shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
   • Be sure to place the wrench on the part indicated in the illustration.
   • Do not damage the front disc brake dust cover.
   • Do not damage the ball joint dust cover.
   • Do not damage the steering knuckle.

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 6

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 7

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 15

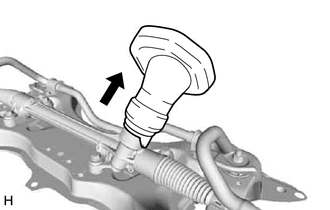

1. Remove the No. 1 steering column hole cover sub-assembly from the steering link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

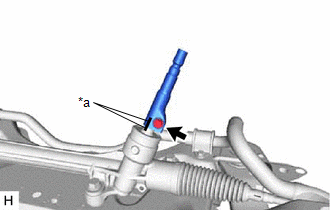

1. Put matchmarks on the steering intermediate shaft and steering link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the bolt and steering intermediate shaft from the steering link assembly.

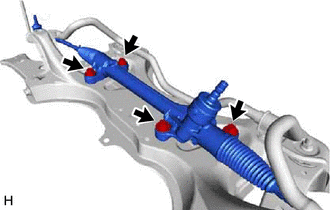

1. Remove the 4 bolts and steering link assembly from the front suspension crossmember sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, secure the steering link assembly in a vise.
   • SST: 09612-00012

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   HINT:

   Tape SST before use.

1. Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the tie rod end sub-assembly LH and lock nut.

HINT:

Perform the same procedure as for the LH side.
