Removal [08/2015 - ]: Procedure

  1. REMOVE ENGINE WIRE

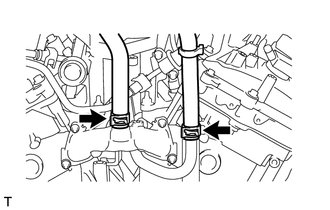

  2. DISCONNECT HEATER WATER HOSE ASSEMBLY
    1. Disconnect the 2 hoses and remove the heater water hose assembly.
      GTY222601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

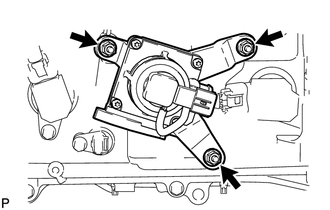

  3. REMOVE NO. 1 EMISSION CONTROL VALVE SET
    1. Remove the 3 nuts and No. 1 emission control valve set.
      GTY292127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

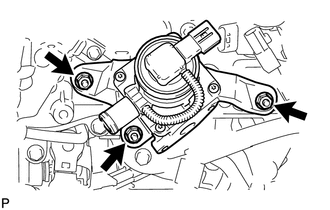

  4. REMOVE NO. 2 EMISSION CONTROL VALVE SET
    1. Remove the 3 nuts and No. 2 emission control valve set.
      GTY292126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

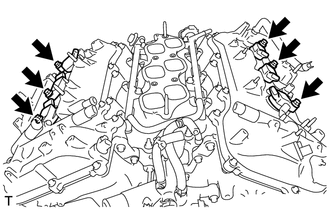

  5. REMOVE IGNITION COIL ASSEMBLY
    1. Remove the 6 bolts and 6 ignition coils.
      GTY182293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 2

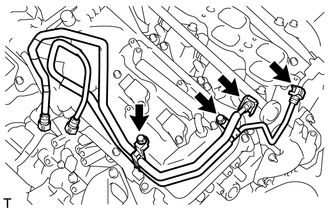

  7. REMOVE FUEL PIPE SUB-ASSEMBLY
    1. Disconnect the 2 fuel pipes (Refer to PRECAUTION [08/2015 - ] ).
      GTY217220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and fuel pipe.
  8. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  10. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 19

  11. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  12. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  14. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 10

  15. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 5

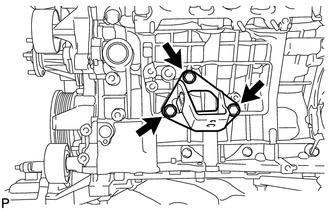

  16. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Remove the 3 bolts and front No. 1 engine mounting bracket LH.
      GTY173018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

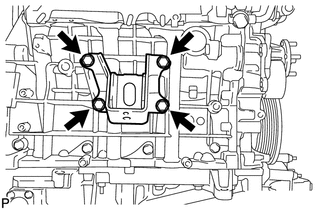

  17. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH.
      GTY173017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
