Removal [10/2014 - ]: Procedure

  1. REMOVE ENGINE HANGERS
    1. Remove the 2 bolts, No. 1 engine hanger and No. 2 engine hanger.

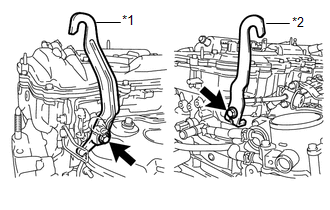

      GTY321695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Engine Hanger
      *2 No. 2 Engine Hanger
  2. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick.

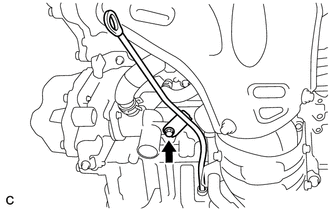

      GTY322913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and engine oil level dipstick guide.
    3. Remove the O-ring from the engine oil level dipstick guide.
  3. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 6

  4. DISCONNECT NO. 1 WATER BY-PASS HOSE

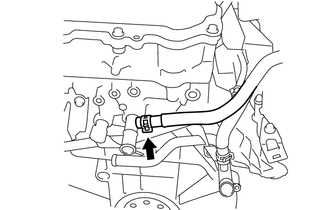

    1. Slide the clamp and disconnect the No. 1 water by-pass hose.
      GTY382387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 5

  7. REMOVE NO. 2 EGR PIPE

    Refer to PROCEDURE - Step 9

  8. REMOVE NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 10

  9. REMOVE MANIFOLD STAY

    Refer to PROCEDURE - Step 11

  10. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 12

  11. REMOVE EGR COOLER ASSEMBLY

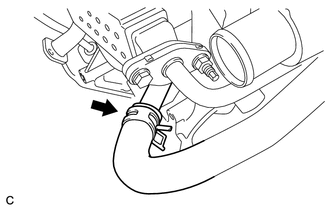

    1. Slide the clamp and disconnect the water by-pass hose.
      GTY315832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and nut.

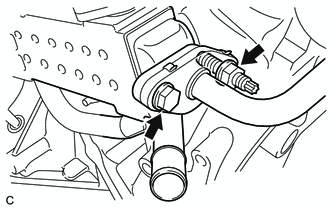

      GTY318891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

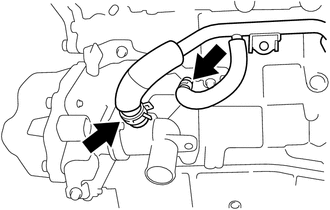

    3. Slide the 2 clamps and disconnect the No. 4 water by-pass hose and No. 6 water by-pass hose.
      GTY320084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

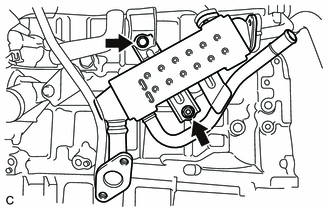

    4. Remove the bolt and nut, and separate the EGR cooler assembly and gasket.
      GTY608294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 EGR PIPE

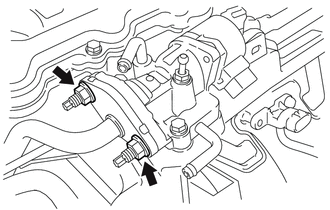

    1. Remove the 2 nuts.
      GTY480816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

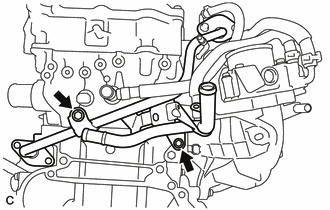

    2. Remove the 2 bolts and No. 1 EGR pipe and gasket.
      GTY319423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE ENGINE WATER PUMP ASSEMBLY

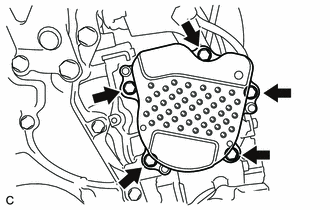

    1. Remove the 5 bolts and engine water pump assembly.
      GTY540079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the engine water pump assembly.
  14. REMOVE WATER INLET SUB-ASSEMBLY
    1. Remove the 2 bolts and water inlet sub-assembly.
      GTY319429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the water inlet sub-assembly.
      GTY540084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE WATER INLET HOUSING

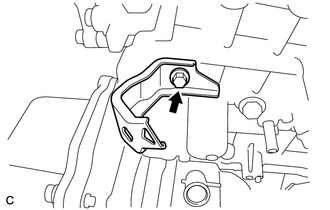

    1. Remove the bolt and harness clamp bracket from the cylinder block sub-assembly.
      GTY322914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and harness clamp bracket from the water inlet housing.
      GTY319428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

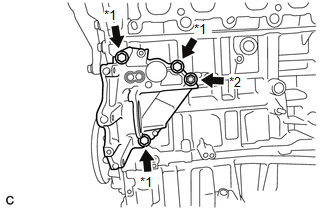

    3. Remove the 3 bolts, nut and water inlet housing.
      GTY573438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bolt
      *2 Nut

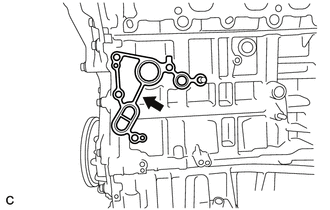

    4. Remove the gasket.
      GTY319430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

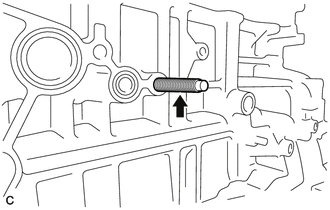

    5. Using an E8 "TORX" socket wrench, remove the stud bolt from the cylinder block sub-assembly.
      GTY322915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using an E5 "TORX" socket wrench, remove the stud bolt from the water inlet housing.
      GTY316633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

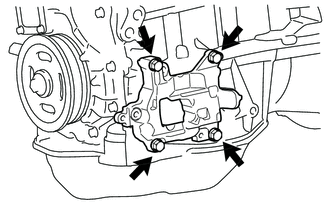

    1. Remove the 4 bolts and No. 1 compressor mounting bracket.
      GTY322919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INTAKE MANIFOLD

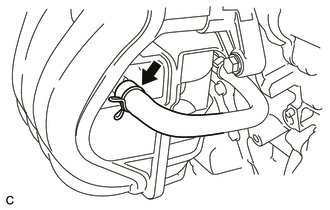

    1. Slide the clip and disconnect the No. 2 ventilation hose from the intake manifold.
      GTY317766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

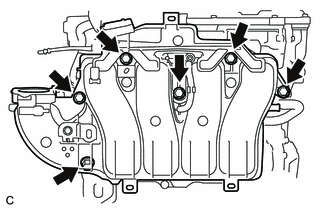

    2. Remove the 6 bolts and intake manifold from the engine assembly.
      GTY317771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

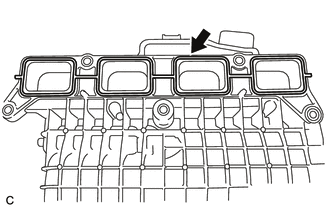

    3. Remove the gasket from the intake manifold.
      GTY317772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 7

  19. REMOVE SENSOR WIRE

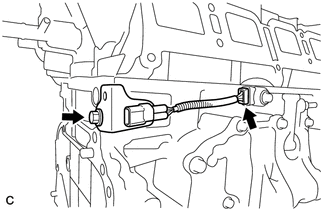

    1. Disconnect the knock control sensor connector.
      GTY319422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor wire.
  20. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2
