Removal [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 18

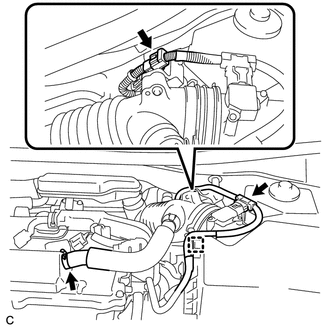

1. Disconnect the mass air flow meter sub-assembly connector and wire harness clamp from the air cleaner cap sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Slide the clip and disconnect the ventilation hose from the cylinder head cover.
3. Disconnect the connector.

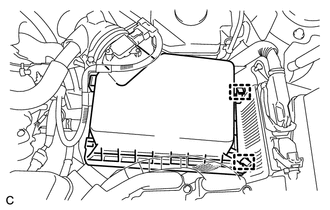

4. Release the 2 clamps and remove the air cleaner cap sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

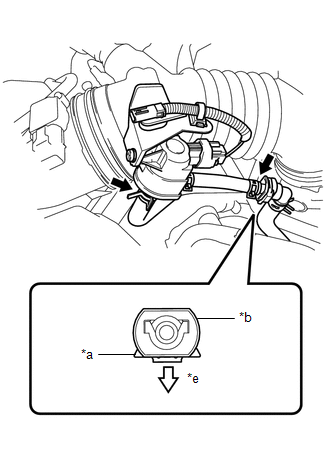

5. Disconnect the 2 fuel vapor feed hoses.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Retainer
   *b	Fuel Tube Connector
   *c	Pipe
   *d	O-ring
   *e	Pull

   NOTE:

   • Remove any dirt or foreign matter on the fuel tube connector before performing this work.
   • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tube connector has an O-ring that seals the pipe.
   • Perform this work by hand. Do not use any tools.
   • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel vapor feed hose.

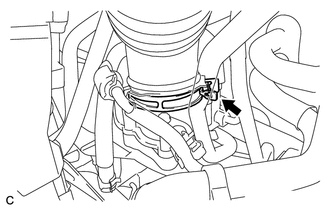

6. Loosen the hose clamp and disconnect the air cleaner cap sub-assembly from the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

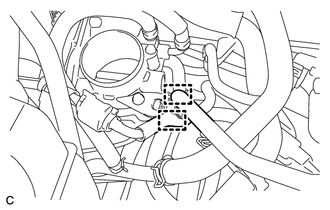

1. Disconnect the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

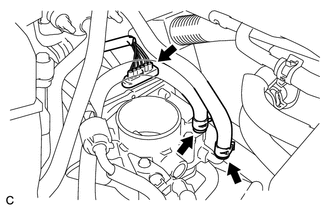

2. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle body with motor assembly.

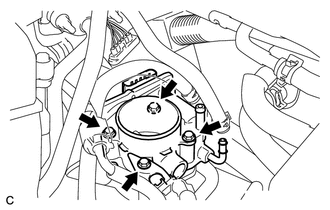

4. Remove the 4 bolts, throttle body with motor assembly and fuel tube bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

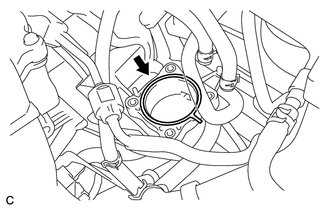

1. Remove the throttle body gasket from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
