Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
  3. REMOVE ENGINE UNDER COVER RH
  4. REMOVE FRONT FENDER APRON SEAL RH
  5. REMOVE CRANKSHAFT PULLEY
    1. Using SST, hold the crankshaft pulley and loosen the pulley bolt. Further loosen the pulley bolt until 2 or 3 threads are screwed into the crankshaft.

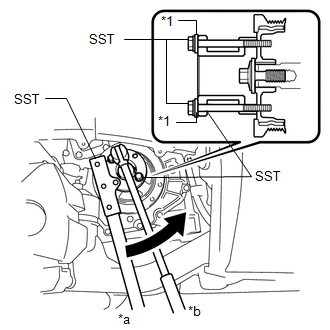

      GTY563255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Washer
      *a Hold
      *b Turn
      • SST: 09213-54015
        1. 09214-00030
      • SST: 09213-70011
      • SST: 09330-00021

      HINT:

      Insert a few washers (thickness: approximately 5 mm (0.197 in.)) between SST(09213-70011) and SST(09214-00030).

    2. Using SST and the pulley bolt, remove the crankshaft pulley and pulley bolt.

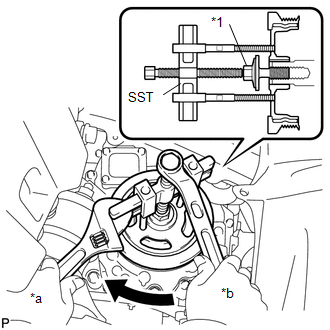

      GTY578043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pulley Bolt
      *a Hold
      *b Turn
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05020
        4. 09954-05011

      HINT:

      Apply a lubricant to the threads and end of SST.

  6. REMOVE TIMING CHAIN COVER OIL SEAL
    1. Using a screwdriver, pry out the timing chain cover oil seal.

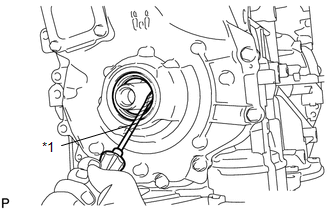

      GTY301109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

      HINT:

      Tape the screwdriver tip before use.
