  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. REMOVE FRONT SEAT ASSEMBLY LH

    HINT:

    Refer to REMOVAL

  3. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Refer to REMOVAL

  4. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY  . Refer to REMOVAL - Step 1
  5. REMOVE REAR SEATBACK ASSEMBLY

    HINT:

    Refer to REMOVAL

  6. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  7. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 3
  8. REMOVE STEERING PAD  . Refer to REMOVAL - Step 5
  9. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 11
  10. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 32
  11. REMOVE POSITION INDICATOR HOUSING ASSEMBLY  . Refer to REMOVAL - Step 33
  12. REMOVE SEAT HEATER SWITCH (w/ Seat Heater)  . Refer to REMOVAL - Step 34
  13. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 35
  14. REMOVE CONSOLE BOX CARPET
  15. REMOVE CONSOLE BOX ASSEMBLY  . Refer to REMOVAL - Step 37
  16. REMOVE FRONT CONSOLE BOX  . Refer to REMOVAL - Step 38
  17. REMOVE FLOOR SHIFT ASSEMBLY  . Refer to REMOVAL - Step 11

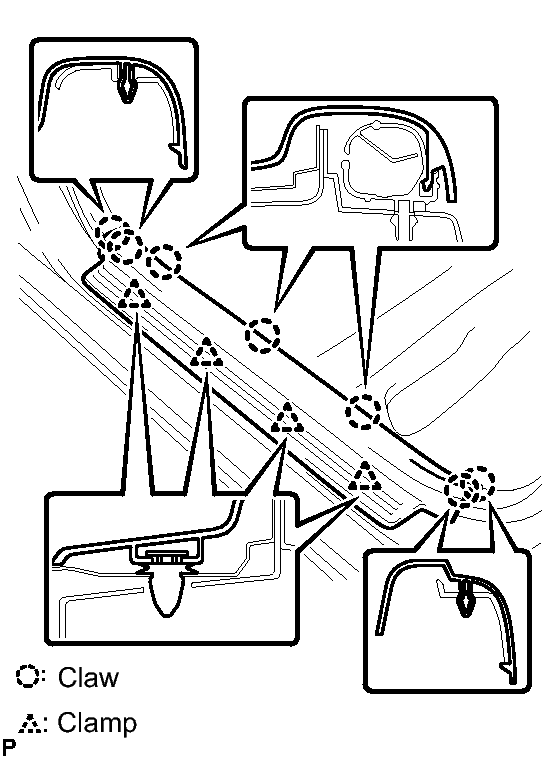

  18. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 4 clips and 7 claws and remove the front door scuff plate LH.
      Fig 1: Locating Front Door Scuff Plate Clips And Claws
      GTY307741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Removal of the front door scuff plate RH is the same as the front door scuff plate LH.

  20. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip (A).
      Fig 2: Locating Cowl Side Trim Clips
      GTY305092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips (B) and remove the cowl side trim sub-assembly LH.
  21. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Removal of the cowl side trim sub-assembly RH is the same as the cowl side trim sub-assembly LH.

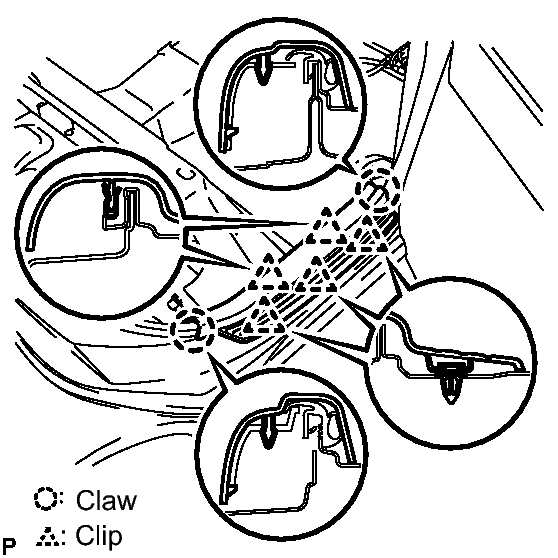

  22. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 5 clips and 2 claws and remove the rear door scuff plate LH.
      Fig 3: Locating Rear Door Scuff Plate Clips And Claws
      GTY307911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Removal of the rear door scuff plate RH is the same as the rear door scuff plate LH.

  24. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  25. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  26. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  27. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  28. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws and remove the lap belt outer anchor cover.
      Fig 4: Locating Lap Belt Outer Anchor Cover Claws
      GTY295420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt.
      Fig 5: Locating Front Seat Outer Belt Bolt
      GTY294817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Removal of the front seat outer belt assembly RH is the same as the front seat outer belt assembly LH.

  31. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 2 clips and 2 claws and remove the center pillar lower garnish LH.
      Fig 6: Locating Center Pillar Lower Garnish Clips And Claws
      GTY308258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Removal of the center pillar lower garnish RH is the same as the center pillar lower garnish LH.

  33. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the bolt.
      Fig 7: Locating Center Pillar Garnish Clips
      GTY304331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the center pillar garnish LH.
  34. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Removal of the center pillar garnish RH is the same as the center pillar garnish LH.

  35. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 4 clips and 2 claws and remove the rear seat side garnish LH.
      Fig 8: Locating Rear Seat Side Garnish Clips And Claws
      GTY294678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Removal of the rear seat side garnish RH is the same as the rear seat side garnish LH.

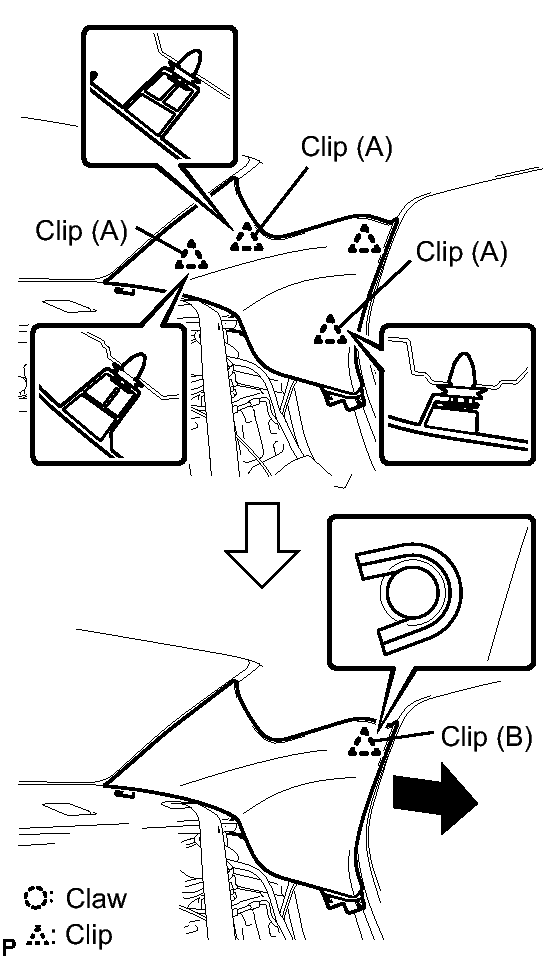

  37. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 3 clips (A).
      Fig 9: Removing Roof Side Inner Garnish Assembly LH
      GTY294709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the roof side inner garnish assembly LH forward, disengaging from the metal clip (B).
    3. Remove the metal clip (B) from the body.
  38. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Removal of the roof side inner garnish assembly RH is the same as the roof side inner garnish assembly LH.

  39. SEPARATE REAR OUTER SEAT BELT ASSEMBLY  . Refer to REMOVAL - Step 16
  40. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH  . Refer to REMOVAL - Step 16
  41. SEPARATE REAR OUTER SEAT BELT ASSEMBLY  . Refer to REMOVAL - Step 16
  42. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY  . Refer to REMOVAL - Step 15
  43. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the garnish from the base of the clips (A) and (B).
      Fig 10: Removing Front Pillar Garnish LH
      GTY302154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make the front pillar garnish LH hang down from the front pillar garnish clip.

    2. Turn the end of the front pillar garnish clip 90° with needle-nosed pliers and remove it from the front pillar garnish LH.
      NOTE:
      • Front pillar garnish clips are reusable if they are not removed from the vehicle and have no damage.
      • Replace the front pillar garnish clips with new ones if they are removed from the vehicle.

      HINT:

      Tape the tips of the needle-nosed pliers before use.

    3. Remove the front pillar garnish LH.
    4. Protect the curtain shield airbag.
      Fig 11: Identifying Protective Cover Dimension
      GTY308316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Cover the curtain shield airbag with the protection cover as soon as the front pillar garnish is removed.

      1. Cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with tape, as shown in the illustration.
  44. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Removal of the front pillar garnish RH is the same as the front pillar garnish LH.

  45. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY
    1. Disengage the 3 claws and remove the cover.
      Fig 12: Locating Front Assist Grip Sub-Assembly Cover Claws
      GTY303902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Slightly push in the clips with your fingers and remove them from the assist grip sub-assembly.
      Fig 13: Removing Assist Grip Sub-Assembly
      GTY296448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clips from the body.
  46. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Removal of the assist grip sub-assembly is the same as the assist grip sub-assembly front.

  47. REMOVE VISOR BRACKET COVER
    1. Using a moulding remover, disengage the 3 claws and remove the visor bracket cover.
      Fig 14: Identifying Visor Bracket Cover Claws
      GTY301574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and the LH visor assembly.
      Fig 15: Remove/Install Visor Assembly Screws
      GTY308206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE VISOR ASSEMBLY RH

    HINT:

    Removal of the RH visor assembly is the same as the LH visor assembly.

  50. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. Using a moulding remover, disengage the 2 clips and remove the roof console box assembly.
      Fig 16: Locating Roof Console Box Assembly Clips
      GTY295463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE REAR INTERIOR LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the 6 claws and remove the rear interior light assembly.
      Fig 17: Locating Rear Interior Light Assembly Claws
      GTY308311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE VISOR HOLDER
    1. Remove the holder of the sun visor by turning it to the left.
      Fig 18: Removing Holder Of Sun Visor
      GTY298643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (W/ Garage Door Opener)  . Refer to REMOVAL - Step 1
  54. REMOVE RAIN SENSOR COVER (w/ Auto Wiper)  . Refer to REMOVAL - Step 1
  55. REMOVE RAIN SENSOR (w/ Auot Wiper)  . Refer to REMOVAL - Step 2
  56. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    1. Remove the sun roof opening trim moulding.
      Fig 19: Remove/Install Sun Roof Opening Trim Moulding
      GTY297085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disengage the 4 clips.
      Fig 20: Locating Roof Headlining Assembly Clips
      GTY296206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the roof headlining assembly from the passenger's door.
      Fig 21: Removing Roof Headlining Assembly From Passenger's Door
      GTY308256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

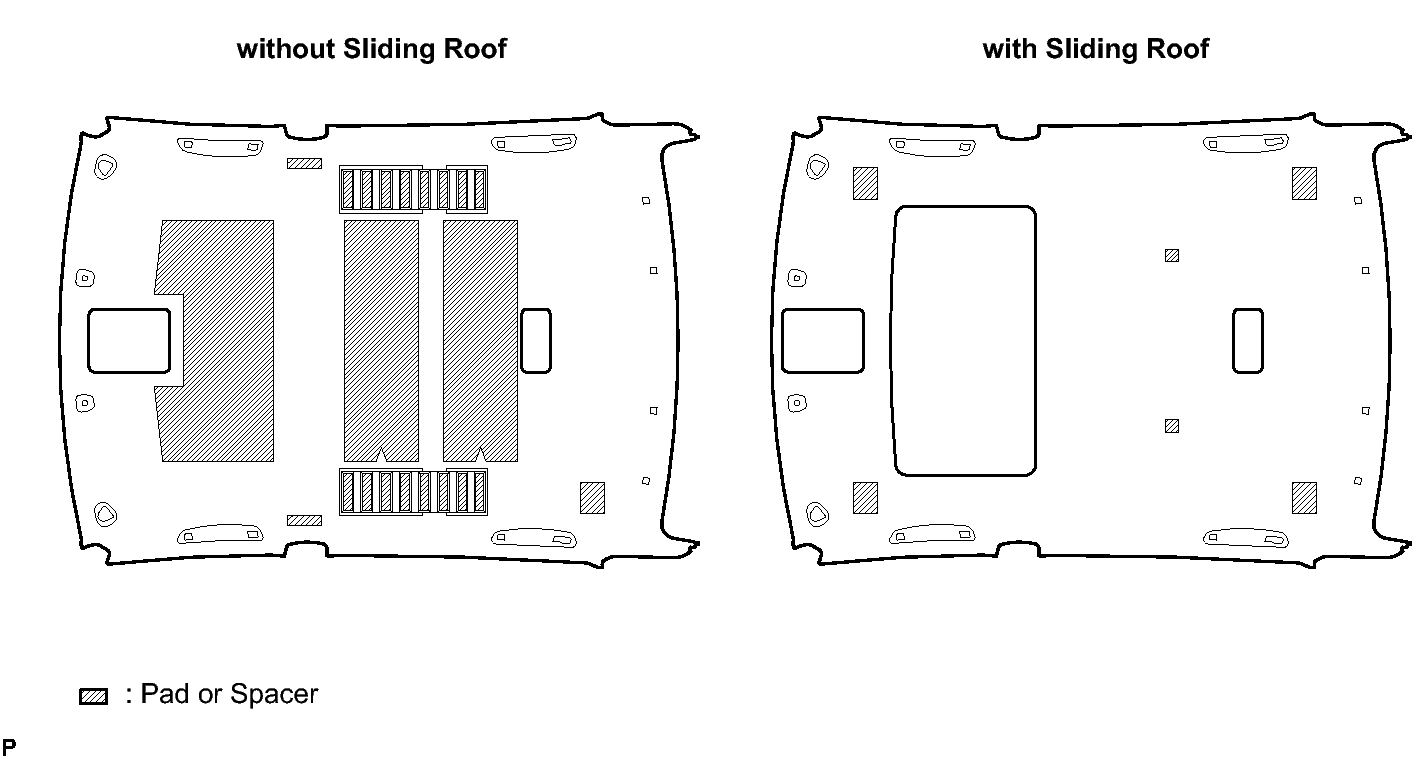

    3. Remove the pad from the roof headlining assembly.
      Fig 22: Locating Roof Headlining Assembly Pads
      GTY306880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

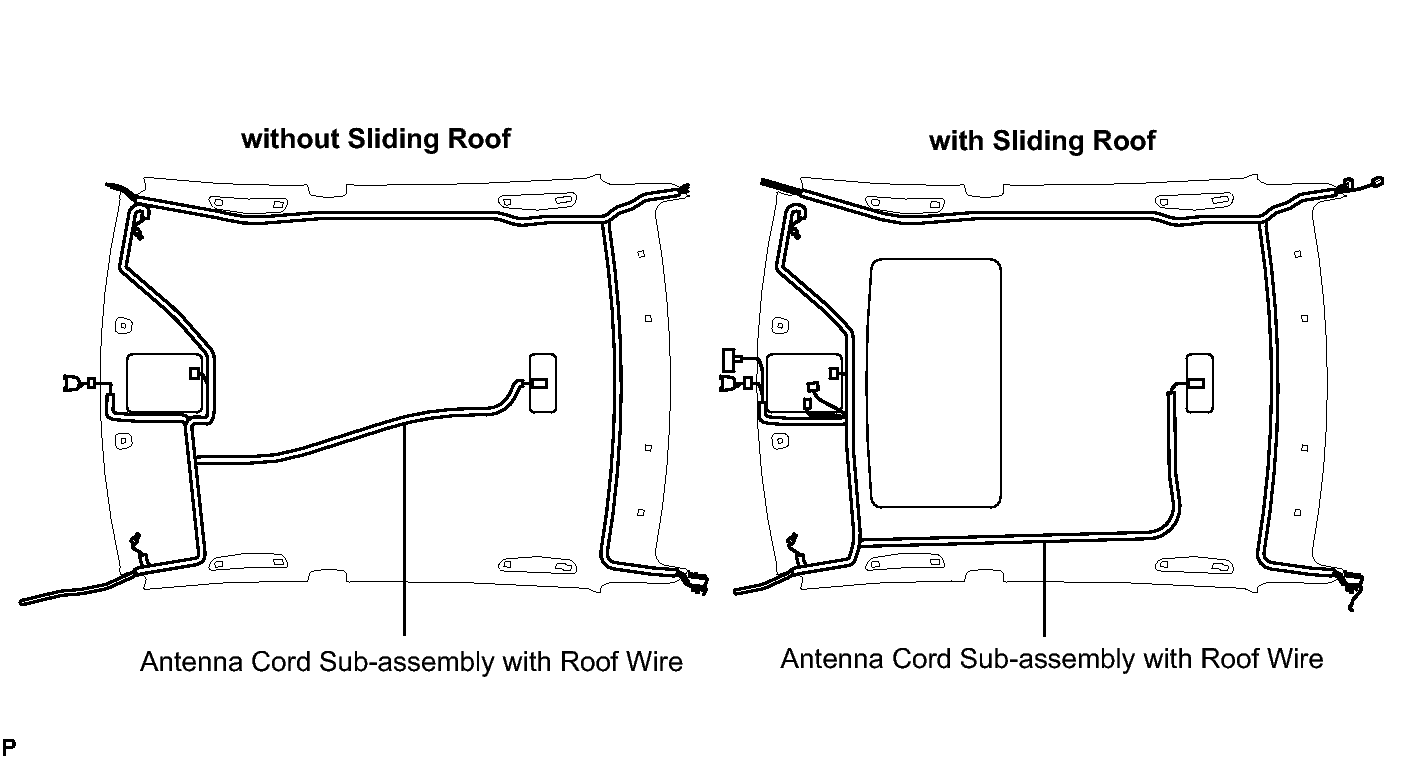

    4. Remove the antenna cord sub-assembly with roof wire.
      Fig 23: Identifying Antenna Cord Sub-Assembly With Roof Wire Routing
      GTY306334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
