Removal (To 12/2010): Removal

PRECAUTION
WARNING:
Be sure to read the "PRECAUTION" thoroughly before servicing. Refer to PRECAUTION .
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE STEERING WHEEL COVER LOWER NO. 3
1. Using a screwdriver, remove the steering wheel cover lower No. 3.

  Fig 1: Remove/Install Steering Wheel Cover Lower No. 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape up the screwdriver tip before use.
REMOVE STEERING WHEEL COVER LOWER NO. 2
1. Using a screwdriver, remove the steering wheel cover lower No. 2.

  Fig 2: Remove/Install Steering Wheel Cover Lower No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape up the screwdriver tip before use.
REMOVE STEERING PAD
1. Using a "TORX" socket wrench (T30), loosen the 2 "TORX" screws until the groove along the screw circumference catches on the screw case.

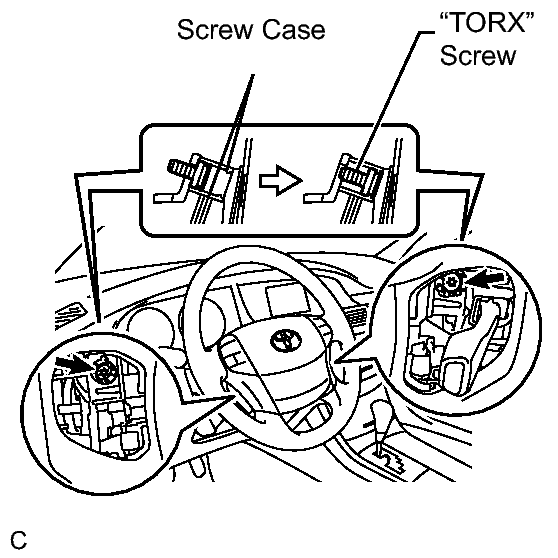

  Fig 3: Locating TORX Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand as shown in the illustration.

  Fig 4: Locating Steering Pad Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the horn connector.
4. Disconnect the 2 connectors from the steering pad.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the steering pad.
