Removal (To 12/2010): Removal

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   HINT:

   Refer to PRECAUTION

2. REMOVE REAR SEAT CUSHION ASSEMBLY  . Refer to REMOVAL - Step 1
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SHELF COVER CAP  . Refer to REMOVAL - Step 3
5. REMOVE REAR SEATBACK ASSEMBLY LH  . Refer to REMOVAL - Step 4
6. REMOVE REAR SEATBACK ASSEMBLY RH  . Refer to REMOVAL - Step 5
7. REMOVE REAR DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 22
8. REMOVE REAR DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 23
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. REMOVE REAR SEAT SIDE GARNISH LH  . Refer to REMOVAL - Step 35
12. REMOVE REAR SEAT SIDE GARNISH RH  . Refer to REMOVAL - Step 36
13. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH  . Refer to REMOVAL - Step 37
14. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH  . Refer to REMOVAL - Step 38
15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Remove the bolt and disconnect the rear seat belt assembly outer.
       Fig 1: Locating Rear Seat Belt Assembly Outer Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Use the same procedures for the RH side and LH side.

    2. Remove the nut and disconnect the rear seat inner w/ center belt assembly RH.
       Fig 2: Locating Rear Seat Inner W/ Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and the rear seat shoulder belt cover.
       Fig 3: Locating Rear Seat Shoulder Belt Cover Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Use the same procedures for the RH side and LH side.

    4. Disengage the 4 claws and the rear seat shoulder belt cover.
       Fig 4: Locating Rear Seat Shoulder Belt Cover Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

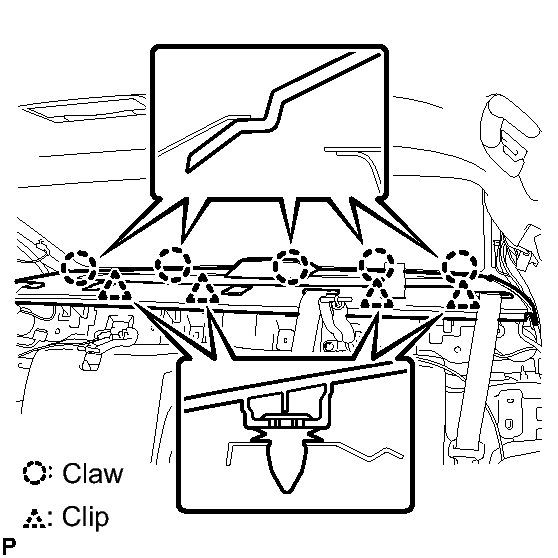

    5. Disengage the 5 claws, 4 clips, and the package tray panel assembly.
       Fig 5: Locating Package Tray Panel Assembly Claws And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the connector and remove the package tray panel assembly.
16. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Remove the bolt and the rear seat inner w/ center belt assembly RH.
       Fig 6: Locating Rear Seat Inner W/ Center Belt Bolt (RH)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Remove the bolt and remove the rear seat inner w/ center belt assembly LH.
       Fig 7: Locating Rear Seat Inner W/ Center Belt Bolt (LH)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
