FRONT SUSPENSION MEMBER (for 2WD): Removal

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
SECURE STEERING WHEEL (See REMOVAL )
REMOVE COLUMN HOLE COVER SILENCER SHEET (See REMOVAL )
SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See REMOVAL )
SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE ENGINE UNDER COVER LH
REMOVE ENGINE UNDER COVER RH
REMOVE FRONT WHEELS
SEPARATE TIE ROD END SUB-ASSEMBLY LH (See REMOVAL )
SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT:

Perform the same procedure as the LH side.
SEPARATE FRONT STABILIZER LINK ASSEMBLY LH (See REMOVAL )
SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as the LH side.
SEPARATE FRONT LOWER SUSPENSION ARM LH (See REMOVAL )
SEPARATE FRONT LOWER SUSPENSION ARM RH
HINT:

Perform the same procedure as the LH side.
REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
1. Remove the 3 bolts and 3 nuts.

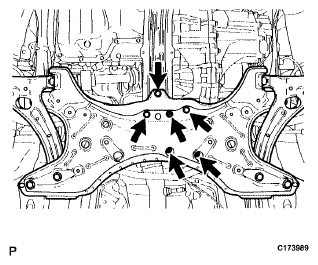

  Fig 1: Locating Front Suspension Crossmember Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a transmission jack or equivalent, support the front suspension crossmember sub-assembly.

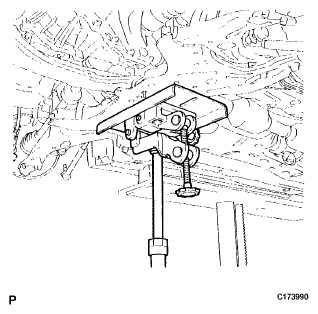

  Fig 2: Supporting Front Suspension Crossmember Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts and front suspension crossmember sub-assembly.

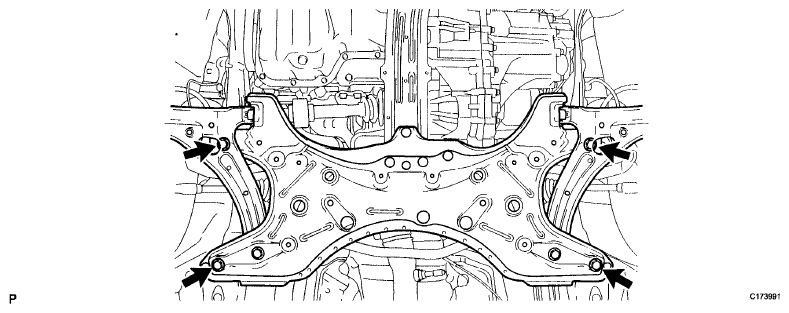

  Fig 3: Locating Front Suspension Crossmember Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT HOOK ASSEMBLY
1. Using a transmission jack or equivalent, support the transmission.

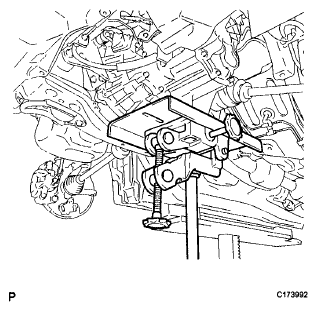

  Fig 4: Supporting Transmission
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and remove the front hook assembly.

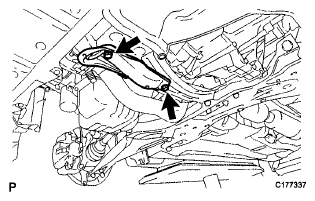

  Fig 5: Locating Front Hook Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY
1. Remove the 4 bolts and remove the center engine mounting sub-assembly.

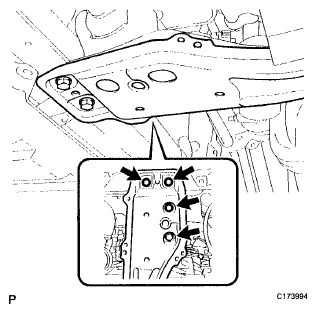

  Fig 6: Locating Center Engine Mounting Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SUSPENSION MEMBER DYNAMIC DAMPER (for 2ZR-FE)
1. Remove the front suspension member dynamic damper.
REMOVE FRONT STABILIZER BAR (See REMOVAL )
REMOVE STEERING LINK ASSEMBLY (See REMOVAL )
REMOVE FRONT LOWER SUSPENSION ARM LH (See REMOVAL )

Fig 7: Identifying Front Suspension Member Dynamic Damper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT LOWER SUSPENSION ARM RH
HINT:

Perform the same procedure as the LH side.
