STEERING GEAR (for 2WD): Removal

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
SECURE STEERING WHEEL
1. Secure the steering wheel with the seat belt in order to prevent rotation.
  HINT:

  This operation is useful to prevent damage to the spiral cable.
REMOVE COLUMN HOLE COVER SILENCER SHEET (See REMOVAL )
SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See REMOVAL )

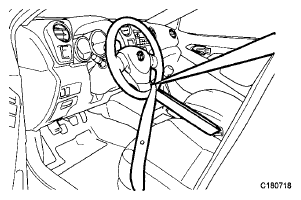

Fig 1: Securing Steering Wheel With Seat Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
1. Remove clips A and the No. 1 steering column hole cover sub-assembly and disengage clip B from the body.
  NOTE: Do not damage clips A and B.
REMOVE FRONT WHEELS
REMOVE ENGINE UNDER COVER LH
REMOVE ENGINE UNDER COVER RH
SEPARATE TIE ROD END SUB-ASSEMBLY LH
1. Remove the cotter pin and the nut.

  Fig 2: Identifying No. 1 Steering Column Hole Cover Sub-Assembly With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install SST to the tie rod end.
  SST 09960-20010 (09961-02060)

  NOTE: Make sure that the upper ends of the tie rod end and SST are aligned.

  Fig 3: Installing SST To Tie Rod End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, separate the tie rod end from the steering knuckle.

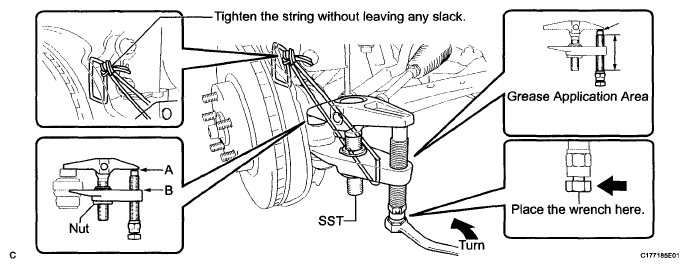

  Fig 4: Separating Tie Rod End From Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09960-20010 (09961-02010)

  CAUTION: Apply grease to the bolt threads and the tip of SST.
  NOTE:
  - Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
  - Install SST with the center nut so that A and B are parallel. Otherwise, the dust cover may be damaged.
  - Be sure to place the wrench on the part indicated in the illustration.
  - Do not damage the front disc brake dust cover.
  - Do not damage the ball joint dust cover.
  - Do not damage the steering knuckle.
SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT:

Use the same procedure for the LH side.
SEPARATE FRONT STABILIZER LINK ASSEMBLY LH (See REMOVAL )
SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedure for the LH side.
SEPARATE FRONT LOWER SUSPENSION ARM LH (See REMOVAL )
SEPARATE FRONT LOWER SUSPENSION ARM RH
HINT:

Use the same procedure for the LH side.
REMOVE FRONT SUSPENSION CROSSMEMBER (See REMOVAL )
REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
1. Remove the No. 1 steering column hole cover sub-assembly from the steering link assembly.

  Fig 5: Removing No. 1 Steering Column Hole Cover Sub-Assembly From Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING INTERMEDIATE SHAFT
1. Put matchmarks on the steering intermediate shaft and the steering link assembly.
2. Remove the bolt and the steering intermediate shaft from the steering link assembly.

  Fig 6: Identifying Matchmarks On Steering Intermediate Shaft And Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING LINK ASSEMBLY
1. Remove the 4 bolts and steering link assembly from the front suspension crossmember sub-assembly.

  Fig 7: Locating Steering Link Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SECURE STEERING LINK ASSEMBLY
1. Using SST, secure the steering link assembly in a vise.
  SST 09612-00012

  HINT:

  Tape SST before use.

  Fig 8: Securing Steering Link Assembly In Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIE ROD END SUB-ASSEMBLY LH
1. Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.
2. Remove the tie rod end sub-assembly LH and lock nut.
REMOVE TIE ROD END SUB-ASSEMBLY RH
HINT:

Use the same procedure for the LH side.

Fig 9: Identifying Matchmarks On Tie Rod End Sub-Assembly LH And Steering Gear Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
