Front Lower Ball Joint: Removal

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure listed is for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT AXLE SHAFT NUT (for 2AZ-FE)  (See REMOVAL )
3. REMOVE FRONT AXLE SHAFT NUT (for 2ZR-FE)  (See REMOVAL )
4. SEPARATE FRONT SPEED SENSOR
   1. Remove the clamp and separate the front speed sensor from the front shock absorber.
      Fig 1: Identifying Front Speed Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt and separate the front speed sensor and flexible hose from the front shock absorber bracket.
      Fig 2: Locating Front Speed Sensor Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt and separate the front speed sensor from the steering knuckle.
      NOTE:

      • Keep the front speed sensor tip and installation surfaces free of foreign matter.
      • Remove the front speed sensor without turning it from its original installation angle.
5. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY  (See FRONT AXLE HUB BOLT )
6. REMOVE FRONT DISC  (See REMOVAL )
   Fig 3: Locating Front Speed Sensor Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. SEPARATE TIE ROD END SUB-ASSEMBLY (for 2WD)  (See REMOVAL )
8. SEPARATE TIE ROD END SUB-ASSEMBLY (for 4WD)  (See REMOVAL )
9. SEPARATE FRONT LOWER SUSPENSION ARM
   1. Remove the bolt and 2 nuts, and separate the front lower suspension arm from the lower ball joint.
10. REMOVE FRONT AXLE ASSEMBLY  (See REMOVAL )
11. REMOVE FRONT LOWER BALL JOINT
    1. Secure the front axle assembly in a vise.
       NOTE: When using a vise, do not overtighten it.
    2. Remove the cotter pin and nut.
       Fig 4: Locating Front Lower Suspension Arm Bolt And Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install 2 SST to the front lower ball joint as shown in the illustration.

       SST 09960-20010 (09961-02050, 09961-02050)

       NOTE: Check that the clearance measurement between SST and the front axle assembly is 1 mm (0.0394 in.).

       HINT:

       Use 2 SST of the same type as shown in the illustration.

       Fig 5: Checking Clearance Measurement Between SST And Front Axle Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the front lower ball joint from the front axle assembly as shown in the illustration.

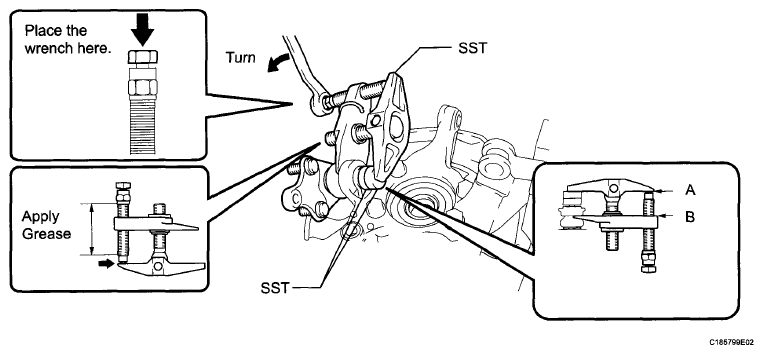

       Fig 6: Removing Front Lower Ball Joint From Front Axle Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       SST 09960-20010 (09961-02010, 09961-02050, 09961-02050)

       CAUTION: Apply grease to the threads and end of the SST bolt.
       NOTE:

       • Install SST so that A and B are parallel.
       • Be sure to place a wrench on the part indicated in the illustration.
       • Do not damage the front lower bail joint dust cover.

       HINT:

       Use 2 SST of the same type as shown in the illustration.
