REAR AXLE HUB (for 2WD): Installation

INSTALL REAR AXLE CARRIER SUB-ASSEMBLY
1. Temporarily install the rear axle carrier sub-assembly with the 2 bolts and the 2 nuts.

  Fig 1: Locating Rear Axle Carrier Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear axle carrier sub-assembly with the 2 bolts and the 2 nuts.
Torque: 290 N*m (2956 kgf*cm, 213 ft.*lbf)
TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY (See INSTALLATION )

Fig 2: Locating Rear Axle Carrier Sub-Assembly Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
1. Install the parking brake assembly and the rear axle hub and bearing assembly with the 4 bolts.
Torque: 75 N*m (764 kgf*cm, 55 ft.*lbf)

NOTE: Do not twist the No. 3 parking brake cable assembly when installing it.

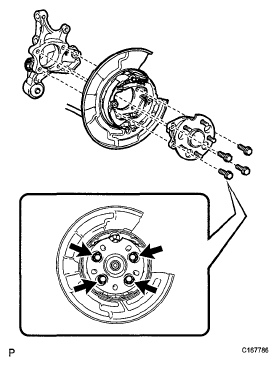

Fig 3: Locating Rear Axle Hub And Bearing Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR AXLE HUB BEARING LOOSENESS (See ON-VEHICLE INSPECTION )
INSPECT REAR AXLE HUB RUNOUT (See ON-VEHICLE INSPECTION )
INSTALL REAR SPEED SENSOR WIRE (See INSTALLATION )
INSTALL REAR DISC (See INSPECTION )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See REAR AXLE HUB (FOR 2WD) )
INSTALL REAR FLEXIBLE HOSE (See DISPOSAL )
STABILIZE SUSPENSION (See INSTALLATION )
FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY
1. Fully tighten the bolt.
Torque: 112 N*m (1141 kgf*cm, 82 ft.*lbf)
NOTE:
- Since a stopper nut is used, fully tighten the bolt.
- The final torque must be applied under standard vehicle height conditions.
Fig 4: Locating Rear No. 1 Suspension Arm Assembly Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY
1. Fully tighten the bolt.
Torque: 112 N*m (1141 kgf*cm, 82 ft.*lbf)
NOTE:
- Since a stopper nut is used, fully tighten the bolt.
- The final torque must be applied under standard vehicle height conditions.
Fig 5: Locating Rear No. 2 Suspension Arm Assembly Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR STRUT ROD ASSEMBLY (See INSTALLATION )
INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY (See INSTALLATION )
INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
HINT:

See REAR WHEEL ALIGNMENT
CHECK FOR SPEED SENSOR SIGNAL
HINT:

See TEST MODE PROCEDURE
