FRONT SEATBACK HEATER (for Power Seat): Installation

  1. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
    1. Using hog ring pliers, install the separate type front seatback cover with 7 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
  2. INSTALL FRONT SEATBACK COVER WITH PAD  (See REASSEMBLY )
  3. INSTALL FRONT SEAT CUSHION INNER SHIELD  (See INSTALLATION )

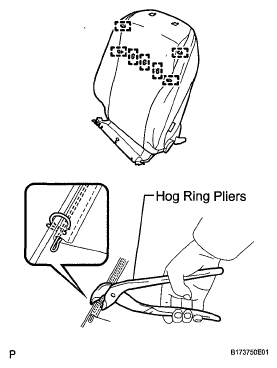

    Fig 1: Installing Front Seatback Cover With Hog Rings
    G05421491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
  5. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY  (See INSTALLATION )
  6. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See INSTALLATION )
  7. INSTALL RECLINING POWER SEAT SWITCH KNOB  (See INSTALLATION )
  8. INSTALL FRONT SEAT ASSEMBLY  (See INSTALLATION )
  9. INSTALL REAR INNER SEAT TRACK COVER  (See INSTALLATION )
  10. INSTALL REAR OUTER SEAT TRACK COVER  (See INSTALLATION )
  11. INSTALL FRONT INNER SEAT TRACK COVER  (See INSTALLATION )
  12. INSTALL FRONT OUTER SEAT TRACK COVER  (See INSTALLATION )
  13. INSTALL FRONT SEAT HEADREST ASSEMBLY  (See INSTALLATION )
  14. INSPECT FRONT SEAT ASSEMBLY  (See INSTALLATION )
  15. INSPECT SRS WARNING LIGHT

    (See INSTALLATION )
