PARKING BRAKE CABLE (for Rear Disc Brake): Installation

INSTALL NO. 3 PARKING BRAKE CABLE CLAMP
1. Engage the 2 claws together to install a new No. 3 parking brake cable clamp to the No. 3 parking brake cable assembly.
INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
1. Install the No. 3 parking brake cable assembly with the 2 bolts.

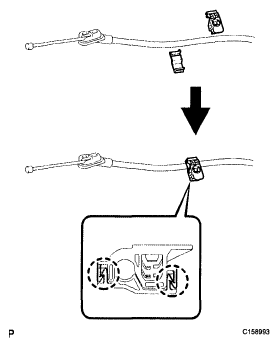

  Fig 1: Locating No. 3 Parking Brake Cable Clamp And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

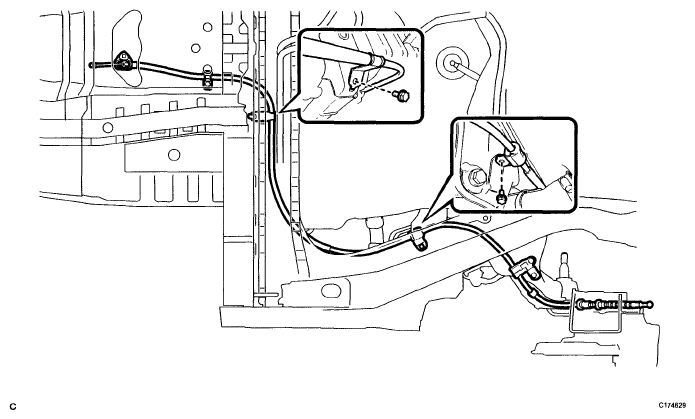

  Fig 2: Identifying No. 3 Parking Brake Cable Assembly With Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
2. Insert the No. 3 parking brake cable assembly into the body.
3. Install the bolt.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  Fig 3: Inserting No. 3 Parking Brake Cable Assembly Into Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the No. 3 parking brake cable clamp.

  Fig 4: Identifying No. 3 Parking Brake Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly LH.
  HINT:

  Be sure to engage the No. 3 parking brake cable assembly clip onto the rear disc brake cylinder assembly LH as shown in the illustration.

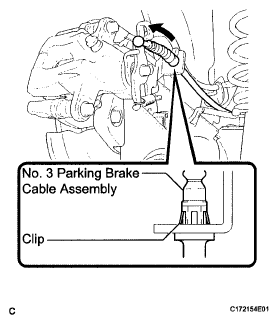

  Fig 5: Installing No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly LH.

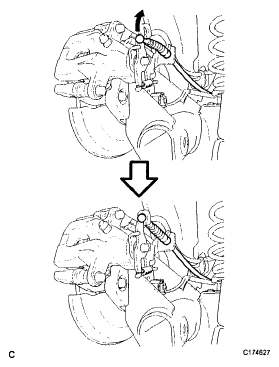

  Fig 6: Connecting No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the bolt.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
8. Engage the clamp to the No. 3 parking brake cable assembly.

  Fig 7: Identifying No. 3 Parking Brake Cable Assembly Clamp And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE LEVER PROTECTOR
1. Install the parking brake lever protector to the No. 3 parking brake cable assembly.

  Fig 8: Identifying Parking Brake Lever Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 2 FLOOR HEAT INSULATOR
1. Install the front No. 2 floor heat insulator with the 2 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 9: Locating Front No. 2 Floor Heat Insulator Mounting Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
1. Install the front No. 1 floor heat insulator with the 3 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2ZR-FE) (See INSTALLATION )
INSTALL CENTER EXHAUST PIPE ASSEMBLY (for 2AZ-FE) (See INSTALLATION )
INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (See INSTALLATION )
INSTALL PARKING BRAKE CABLE END STOPPER (See INSTALLATION )
INSTALL PARKING BRAKE EQUALIZER (See INSTALLATION )

Fig 10: Locating Front No. 1 Floor Heat Insulator Mounting Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE LEVER ASSEMBLY (See INSTALLATION )
CONNECT PARKING BRAKE EQUALIZER (See INSTALLATION )
INSTALL NO. 3 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY (See INSTALLATION )
ADJUST PARKING BRAKE TRAVEL (See PARKING BRAKE SYSTEM )
INSTALL CONSOLE BOX ASSEMBLY
HINT:

Refer to the instructions for Installation of the front console box (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
HINT:

Refer to the instructions for Installation of the front seat assembly (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
HINT:

Refer to the instructions for Installation of the front seat assembly (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

Perform the same procedure for the LH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
HINT:

See DIAGNOSIS SYSTEM .
INSPECT FOR EXHAUST GAS LEAK
INSTALL REAR WHEELS
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
