FRONT SEAT ASSEMBLY (for Power Seat): Installation

1. Place the front seat assembly in the cabin.
   NOTE: Be careful not to damage the vehicle body.

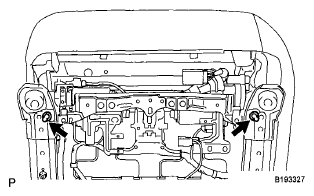

   Fig 1: Locating Seat Adjuster Cover Caps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors under the seat.
3. Connect the cable to the negative (-) battery terminal.
4. Temporarily install the front seat assembly with the 4 bolts.
5. Operate the power seat switch knob and move the seat to the rearmost position.
6. Tighten the 2 bolts on the front side of the seat.

Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

HINT:

Tighten the bolts in the order indicated in the illustration.

7. Operate the power seat switch knob and move the seat to the foremost position.

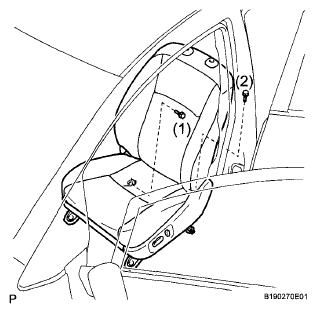

   Fig 2: Identifying Front Seat Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Tighten the 2 bolts on the rear side of the seat.

Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

HINT:

Tighten the bolts in the order indicated in the illustration.

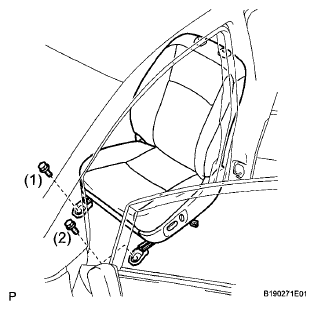

Fig 3: Identifying On Bolts Rear Side Of Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the inner seat track cover.

Fig 4: Identifying Inner Seat Track Cover Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the outer seat track cover.

1. Inspect the power seat operation.

HINT:

Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).

Fig 5: Identifying Outer Seat Track Cover Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
