FRONT SEAT ASSEMBLY (for Manual Seat): Installation

1. Place the front seat assembly in the cabin.
   NOTE: Be careful not to damage the vehicle body.
2. Connect the connectors under the seat.
3. Temporarily install the front seat assembly with the 4 bolts.
4. Lift up the seat track adjusting handle and move the seat to the rearmost position.
5. Tighten the 2 bolts on the front side of the seat.

Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

HINT:

Tighten the bolts in the order indicated in the illustration.

6. Lift up the seat track adjusting handle and move the seat to the foremost position.

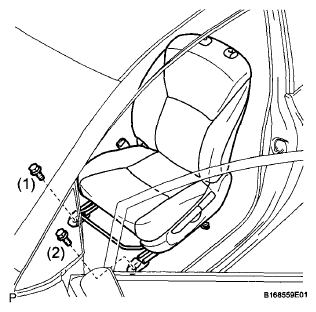

   Fig 1: Identifying Front Seat Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Tighten the 2 bolts on the rear side of the seat.

Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

HINT:

Tighten the bolts in the order indicated in the illustration.

1. While sliding the front seat, check that the left and right adjusters move together smoothly and lock simultaneously.

If the seat adjusters do not lock simultaneously, loosen the bolts securing the seat to adjust the adjuster position.

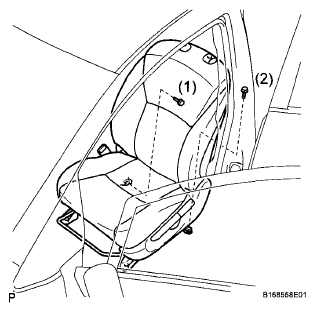

Fig 2: Identifying Front Seat Slide Adjuster Lock Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Lift up the seat track adjusting handle and move the seat to the rearmost position.
2. Engage the 2 claws and install the inner seat track cover.

Fig 3: Identifying Inner Seat Track Cover Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the outer seat track cover.

HINT:

If the occupant classification ECU has been replaced, perform registration (See REGISTRATION ).

Fig 4: Identifying Outer Seat Track Cover Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
