Parking Brake Lever: Installation

INSTALL PARKING BRAKE SWITCH ASSEMBLY
1. Install the parking brake switch assembly to the parking brake lever sub-assembly with the screw.
  Torque: 0.9 N*m (9 kgf*cm, 8 in.*lbf)

  Fig 1: Identifying Parking Brake Switch Assembly And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
1. Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

  Fig 2: Identifying No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Bend the parking brake lever claw.

  Fig 3: Bending Parking Brake Lever Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the adjusting nut and the lock nut to the No. 1 parking brake cable assembly.

  Fig 4: Identifying Adjusting Nut And Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CABLE END STOPPER
1. Install the parking brake cable end stopper to the No. 1 parking brake cable assembly.

  Fig 5: Identifying Parking Brake Cable End Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE EQUALIZER

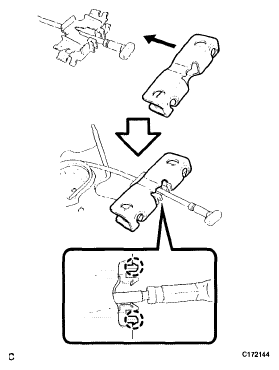

1. Engage the 2 claws to install the parking brake equalizer to the parking brake cable end stopper.

  Fig 6: Installing Parking Brake Equalizer To Parking Brake Cable End Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

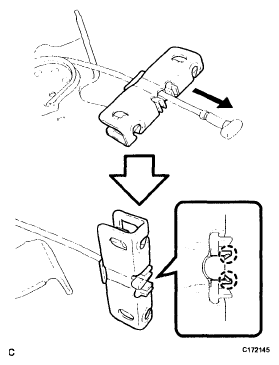

2. Engage the 2 claws to install the parking brake cable end stopper to the No. 1 parking brake cable assembly.

  Fig 7: Installing Parking Brake Cable End Stopper To No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE LEVER ASSEMBLY
1. Install the parking brake lever assembly with the 2 bolts.
  Torque: 15 N*m (148 kgf*cm, 11 ft.*lbf)

  Fig 8: Identifying Parking Brake Lever Assembly Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the parking brake switch connector.

  Fig 9: Locating Parking Brake Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PARKING BRAKE EQUALIZER

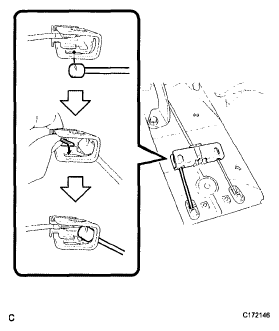

1. Connect the parking brake equalizer to the No. 3 parking brake cable assembly as shown in the illustration.
2. Connect the parking brake equalizer to the No. 2 parking brake cable assembly.
  HINT:

  Perform the same procedure for the No. 3 parking brake cable assembly.

  Fig 10: Connecting Parking Brake Equalizer To No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY
1. Install the No. 3 belt anchor reinforcement sub-assembly with the 5 bolts.
  Torque: 27 N*m (275 kgf*cm, 19 ft.*lbf)
2. Install the floor carpet.

  Fig 11: Identifying No. 3 Belt Anchor Reinforcement Sub-Assembly Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY
1. Install the No. 2 belt anchor reinforcement sub-assembly with the 4 bolts.
  Torque: 27 N*m (275 kgf*cm, 19 ft.*lbf)
ADJUST PARKING BRAKE LEVER TRAVEL (See PARKING BRAKE SYSTEM )
INSPECT BRAKE WARNING LIGHT (See ADJUSTMENT )

Fig 12: Identifying No. 2 Belt Anchor Reinforcement Sub-Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX ASSEMBLY
HINT:

Refer to the instructions for Installation of the front console box (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
HINT:

Refer to the instructions for Installation of the front seat assembly (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
HINT:

Refer to the instructions for Installation of the front seat assembly (See INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

Perform the same procedure for the LH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
HINT:

See DIAGNOSIS SYSTEM .
