Roof Headlining: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. REMOVE FRONT SEAT ASSEMBLY LH

    HINT:

    See REMOVAL

  3. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    See REMOVAL

  4. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  5. REMOVE REAR SEATBACK ASSEMBLY

    HINT:

    See REMOVAL

  6. REMOVE LOWER NO.2 STEERING WHEEL COVER  (See REMOVAL )
  7. REMOVE LOWER NO.3 STEERING WHEEL COVER  (See REMOVAL )
  8. REMOVE STEERING PAD  (See REMOVAL )
  9. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  10. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  11. REMOVE POSITION INDICATOR HOUSING ASSEMBLY  (See REMOVAL )
  12. REMOVE SEAT HEATER SWITCH (w/ Seat Heater)  (See REMOVAL )
  13. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  14. REMOVE CONSOLE BOX CARPET
  15. REMOVE CONSOLE BOX ASSEMBLY  (See REMOVAL )
  16. REMOVE FRONT CONSOLE BOX  (See REMOVAL )
  17. REMOVE FLOOR SHIFT ASSEMBLY  (See REMOVAL )

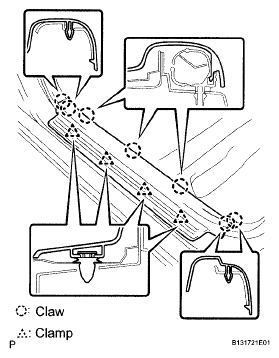

  18. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 4 clips and 7 claws and remove the front door scuff plate LH.
  19. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Removal of the front door scuff plate RH is the same as the front door scuff plate LH.

    Fig 1: Identifying Front Door Scuff Plate Clips And Claws
    G05007009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip (A).
    2. Disengage the 2 clips (B) and remove the cowl side trim sub-assembly LH.
  21. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Removal of the cowl side trim sub-assembly RH is the same as the cowl side trim sub-assembly LH.

    Fig 2: Identifying Cowl Side Trim Clips
    G05007010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 5 clips and 2 claws and remove the rear door scuff plate LH.
  23. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Removal of the rear door scuff plate RH is the same as the rear door scuff plate LH.

    Fig 3: Identifying Rear Door Scuff Plate Clips And Claws
    G05007011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  25. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  26. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  27. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  28. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws and remove the lap belt outer anchor cover.
      Fig 4: Identifying Lap Belt Outer Anchor Cover Claws
      G05007012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt.
  30. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Removal of the front seat outer belt assembly RH is the same as the front seat outer belt assembly LH.

    Fig 5: Identifying Front Seat Outer Belt Bolt
    G05007013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 2 clips and 2 claws and remove the center pillar lower garnish LH.
  32. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Removal of the center pillar lower garnish RH is the same as the center pillar lower garnish LH.

    Fig 6: Identifying Center Pillar Lower Garnish Clips And Claws
    G05007014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the bolt.
    2. Disengage the 2 clips and remove the center pillar garnish LH.
  34. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Removal of the center pillar garnish RH is the same as the center pillar garnish LH.

    Fig 7: Identifying Center Pillar Garnish Clips
    G05007015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 4 clips and 2 claws and remove the rear seat side garnish LH.
  36. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Removal of the rear seat side garnish RH is the same as the rear seat side garnish LH.

    Fig 8: Identifying Rear Seat Side Garnish Clips And Claws
    G05007016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

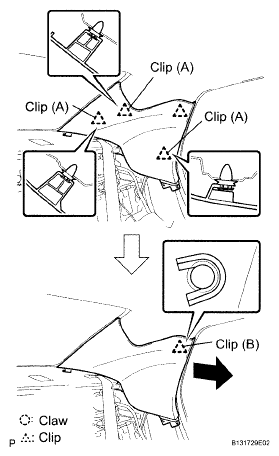

  37. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 3 clips (A).
    2. Pull the roof side inner garnish assembly LH forward, disengaging from the metal clip (B).
    3. Remove the metal clip (B) from the body.
  38. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Removal of the roof side inner garnish assembly RH is the same as the roof side inner garnish assembly LH.

    Fig 9: Removing Roof Side Inner Garnish Assembly LH
    G05007017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. SEPARATE REAR OUTER SEAT BELT ASSEMBLY  (See REMOVAL )
  40. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH  (See REMOVAL )
  41. SEPARATE REAR OUTER SEAT BELT ASSEMBLY  (See REMOVAL )
  42. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY  (See REMOVAL )
  43. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper of the garnish towards the inside of the cabin and disengage clips (A) and (B).
    2. Turn clip (A) 90 degrees with needle-nosed pliers as shown in the illustration and remove it from the front pillar garnish RH.

      HINT:

      If clip A cannot be disengaged easily, cut it off with nippers, etc.

    3. Remove clip (A) from the front pillar.
      Fig 10: Removing Front Pillar Garnish LH
      G05007018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Protect the curtain shield airbag.
      NOTE: Cover the curtain shield airbag with the protection cover as soon as the front pillar garnish is removed.
      1. Cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with tape, as shown in the illustration.
        Fig 11: Identifying Protective Cover Dimension
        G05007019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Removal of the front pillar garnish RH is the same as the front pillar garnish LH.

  45. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY
    1. Disengage the 3 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 12: Identifying Cover Claws
      G05007020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slightly push in the clips with your fingers and remove them from the assist grip sub-assembly.
    3. Remove the clips from the body.
  46. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Removal of the assist grip sub-assembly is the same as the assist grip sub-assembly front.

    Fig 13: Removing Clips
    G05007021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE VISOR BRACKET COVER
    1. Using a moulding remover, disengage the 3 claws and remove the visor bracket cover.
      Fig 14: Identifying Visor Bracket Cover Claws
      G05007022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and the LH visor assembly.
  49. REMOVE VISOR ASSEMBLY RH

    HINT:

    Removal of the RH visor assembly is the same as the LH visor assembly.

    Fig 15: Identifying Visor Assembly Screws
    G05007023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. Using a moulding remover, disengage the 2 clips and remove the roof console box assembly.
      Fig 16: Identifying Roof Console Box Assembly Clips
      G05007024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE REAR INTERIOR LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the 6 claws and remove the rear interior light assembly.
      Fig 17: Identifying Rear Interior Light Assembly Claws
      G05007025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE VISOR HOLDER
    1. Remove the holder of the sun visor by turning it to the left.
  53. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (W/ Garage Door Opener)  (See REMOVAL )
  54. REMOVE RAIN SENSOR COVER (w/Auto Wiper)  (See REMOVAL )
  55. REMOVE RAIN SENSOR (w/Auto Wiper)  (See REMOVAL )
    Fig 18: Removing Holder Of Sun Visor
    G05007026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    1. Remove the sun roof opening trim moulding.
      Fig 19: Identifying Sun Roof Opening Trim Moulding
      G05007027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disengage the 4 clips.
      Fig 20: Identifying Roof Headlining Assembly Clips
      G05007028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the roof headlining assembly from the passenger's door.
      Fig 21: Removing Roof Headlining Assembly From Passenger's Door
      G05007029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

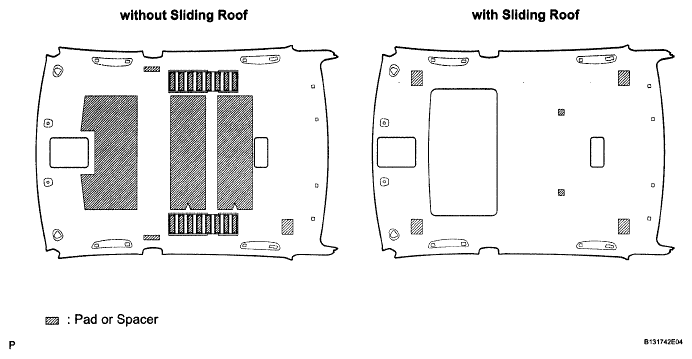

    3. Remove the pad from the roof headlining assembly.
      Fig 22: Identifying Pad
      G05007030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

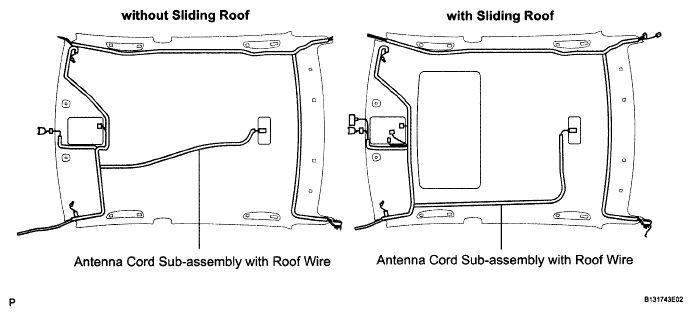

    4. Remove the antenna cord sub-assembly with roof wire.
      Fig 23: Identifying Antenna Cord Sub-Assembly With Roof Wire
      G05007031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
