Rear Seat Assembly: Removal

HINT:

Only installation procedures requiring additional information are included.

1. REMOVE REAR SEAT CUSHION ASSEMBLY
   1. Pull up the 2 portions of the rear seat cushion assembly as shown in the illustration and remove it.

      A:

      100 mm (3.94 in.) or less

      NOTE: In this case, hold the base of the clip up to prevent the cushion frame from being distorted.
      Fig 1: Locating Rear Seat Cushion Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect each wire of the reclining adjuster arm sub-assembly RH and remove the rear seat cushion assembly.
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEATBACK LOCK COVER CAP
   1. Disengage the 6 claws and remove the 2 RR shelf cover caps.

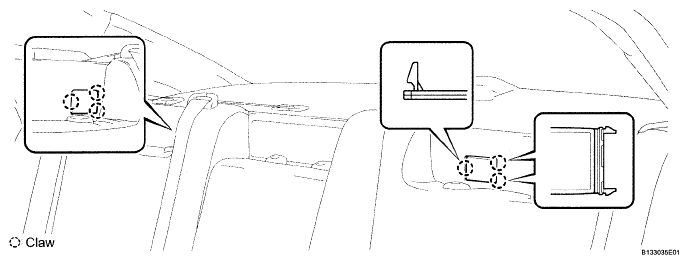

   Fig 2: Locating Rear Seatback Lock Cover Caps And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE REAR SEATBACK ASSEMBLY LH
   1. Remove the rear seat belt from the rear seat shoulder belt guide LH.
      Fig 3: Locating Rear Seat Shoulder Belt Guide LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt, 2 nuts and the rear seatback assembly LH.
   Fig 4: Locating Rear Seatback Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR SEATBACK ASSEMBLY RH
   1. Remove the rear seat belt from the rear seat shoulder belt guide RH.
      Fig 5: Locating Rear Seat Shoulder Belt Guide RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the rear seat belt from the rear seat shoulder belt guide center.
      Fig 6: Identifying Rear Seat Shoulder Belt Guide Center

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt, 2 nuts and the rear seatback assembly RH.
   Fig 7: Identifying Rear Seatback Assembly RH And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
