Differential Mount Cushion: Removal

  1. REMOVE REAR WHEELS
  2. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY  (See REMOVAL )
  3. REMOVE TAIL EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  4. REMOVE CENTER EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  5. REMOVE REAR SPEED SENSOR LH  (See REMOVAL )
  6. REMOVE REAR SPEED SENSOR RH

    HINT:

    Perform the same procedure as the LH side.

  7. REMOVE REAR AXLE SHAFT NUT LH  (See REMOVAL )
  8. REMOVE REAR AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as the LH side.

  9. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH  (See REPLACEMENT )
  10. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  11. REMOVE REAR DISC (for LH Side)  (See DISASSEMBLY )
  12. REMOVE REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  13. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH  (See REMOVAL )
  14. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  15. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY  (See REMOVAL )
  16. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as the No. 3 parking brake cable assembly.

  17. REMOVE REAR STRUT ROD ASSEMBLY (for LH Side)  (See REMOVAL )
  18. REMOVE REAR STRUT ROD ASSEMBLY (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  19. REMOVE REAR AXLE CARRIER SUB-ASSEMBLY LH  (See REMOVAL )
  20. REMOVE REAR AXLE CARRIER SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  21. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See REMOVAL )
  22. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  23. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH  (See REMOVAL )
  24. REMOVE REAR DRIVE SHAFT ASSEMBLY LH  (See REMOVAL )
  25. REMOVE REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  26. REMOVE REAR DRIVE SHAFT SNAP RING LH  (See REMOVAL )
  27. REMOVE REAR DRIVE SHAFT SNAP RING RH

    HINT:

    Perform the same procedure as the LH side.

  28. REMOVE REAR SUSPENSION MEMBER  (See INSTALLATION )
  29. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY  (See REMOVAL  )
  30. REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
    1. Using SST, remove the rear No. 1 differential mount cushion.

      SST 09570-24011, 09316-12010

      NOTE:
      • Do not bring SST into contact with the sub-frame.
      • Do not slant the SST bolt.
      • Do not set SST in the wrong direction.
      • Tighten the 2 SST bolt equally into the 2 No. 1 rear differential mount cushion hole.

      HINT:

      Perform this operation only if the No. 1 rear differential mount cushion is damaged.

    Fig 1: Removing Rear No. 1 Differential Mount Cushion
    G05611240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR NO. 2 DIFFERENTIAL MOUNT CUSHION
    1. Using SST, remove the rear No. 2 differential mount cushion.

      SST 09570-24011, 09316-12010

      NOTE:
      • Do not bring SST into contact with the sub-frame.
      • Do not slant the SST bolts.
      • Do not set SST in the wrong direction.

      HINT:

      Perform this operation only if the No. 2 rear differential mount cushion is damaged.

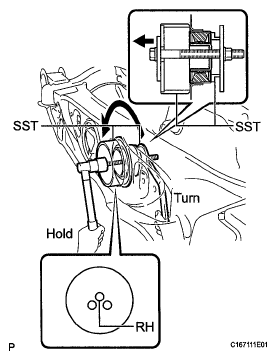

      Fig 2: Identifying Rear No. 2 Differential Mount Cushion
      G05611241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
