Rear Seat Inner Belt Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT: Refer to appropriate step(s) under "Removal and Disassembly".

  1. REMOVE REAR SEAT LEG COVER
  2. REMOVE REAR NO. 2 SEAT LEG SIDE COVER
  3. REMOVE REAR NO. 3 SEAT LEG SIDE COVER (w/Rear No. 2 Seat) (See  REMOVAL  )
  4. REMOVE REAR NO. 3 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat) (See  REMOVAL  )
  5. REMOVE REAR NO. 4 SEAT LEG SIDE COVER
  6. REMOVE REAR NO. 5 SEAT LEG SIDE COVER
  7. REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/o Rear No. 2 Seat)
    1. Remove the bolt and seat belt.
      Fig 1: Removing Rear Seat Lap Type Belt Assembly Center RH (W/O Rear No. 2 Seat)
      G04490577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/Rear No. 2 Seat)
    1. Remove the bolt and seat belt.
      Fig 2: Removing Rear Seat Lap Type Belt Assembly Center RH (W/Rear No. 2 Seat)
      G04490578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR NO. 1 SEAT ASSEMBLY LH (See  REMOVAL  )
  10. REMOVE REAR SEAT REAR BRACKET COVER LH (See  DISASSEMBLY  )
  11. REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY CENTER LH
    1. Remove the bolt and the seat belt.

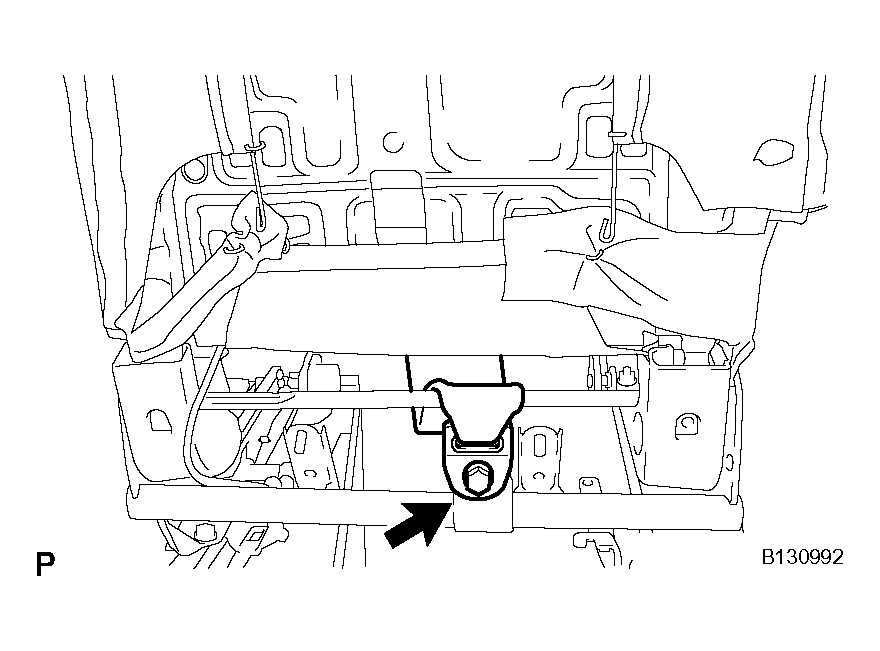

      Fig 3: Removing Rear Seat Lap Type Belt Assembly Center LH
      G04490579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT INNER BELT ASSEMBLY RH (for 60/40 Split Seat Type LH Side)
    1. Remove the bolt and the seat belt.

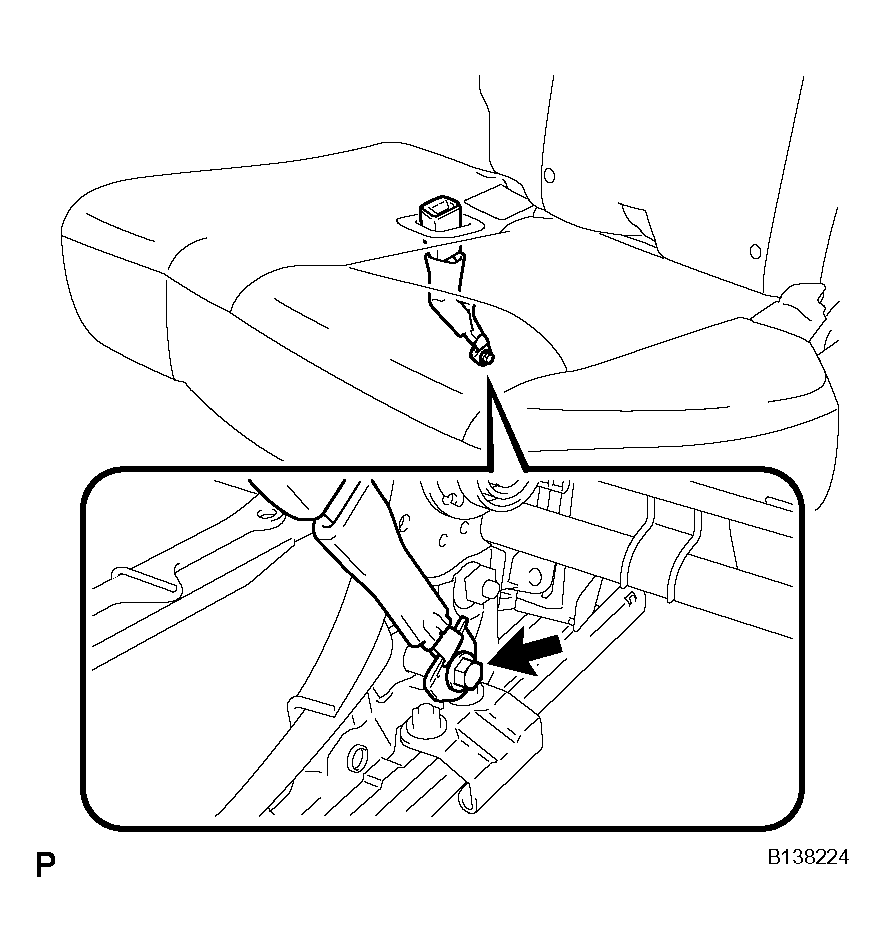

      Fig 4: Removing Rear Seat Inner Belt Assembly RH (For 60/40 Split Seat Type LH Side)
      G04490580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR NO. 1 SEAT ASSEMBLY RH (See  REMOVAL  )
  14. REMOVE REAR SEAT INNER BELT ASSEMBLY RH (for 60/40 Split Seat Type RH Side)
    1. Remove the bolt and the seat belt.

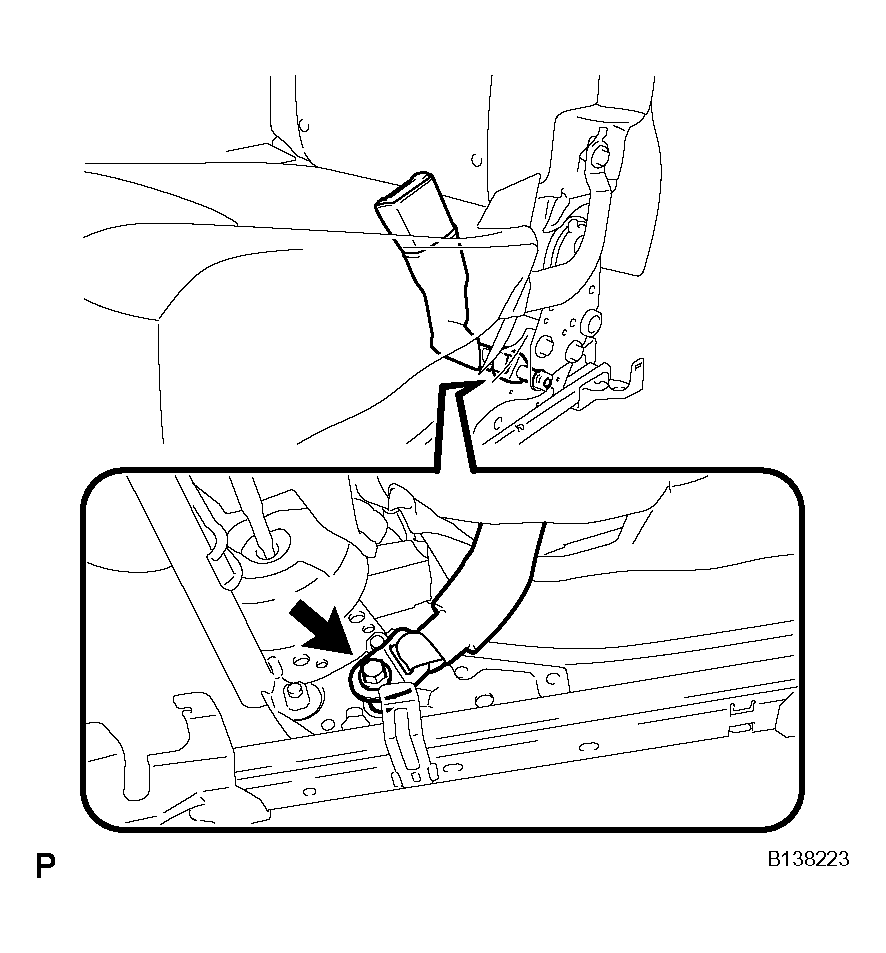

      Fig 5: Removing Rear Seat Inner Belt Assembly RH (For 60/40 Split Seat Type RH Side)
      G04490581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 SEAT HINGE COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  16. REMOVE NO. 2 SEAT LEG COVER (w/Rear No. 2 Seat) (See  REMOVAL  )
  17. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  18. REMOVE REAR NO. 2 SEAT RECLINING COVER LH (w/Rear No. 2 Seat) (See  DISASSEMBLY  )
  19. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Remove the bolt and seat belt.
      Fig 6: Removing Rear No. 2 Seat Inner Belt Assembly LH (W/Rear No. 2 Seat)
      G04490582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
