REAR NO. 1 SEAT ASSEMBLY (for LH Side): Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
  2. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
  3. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  4. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  5. REMOVE REAR FLOOR NO. 3 BOARD (w/o Rear No. 2 Seat)
  6. REMOVE REAR FLOOR NO. 2 BOARD (w/o Rear No. 2 Seat)
  7. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  8. REMOVE BACK DOOR WEATHERSTRIP (w/o Rear No. 2 Seat)
  9. REMOVE REAR FLOOR FINISH PLATE (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  10. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat)
    1. Using a screwdriver, detach the 6 claws and remove the bezel.

      HINT:

      Tape the screwdriver tip before use.

  11. REMOVE TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )
  12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See appropriate step(s) under  REMOVAL  )

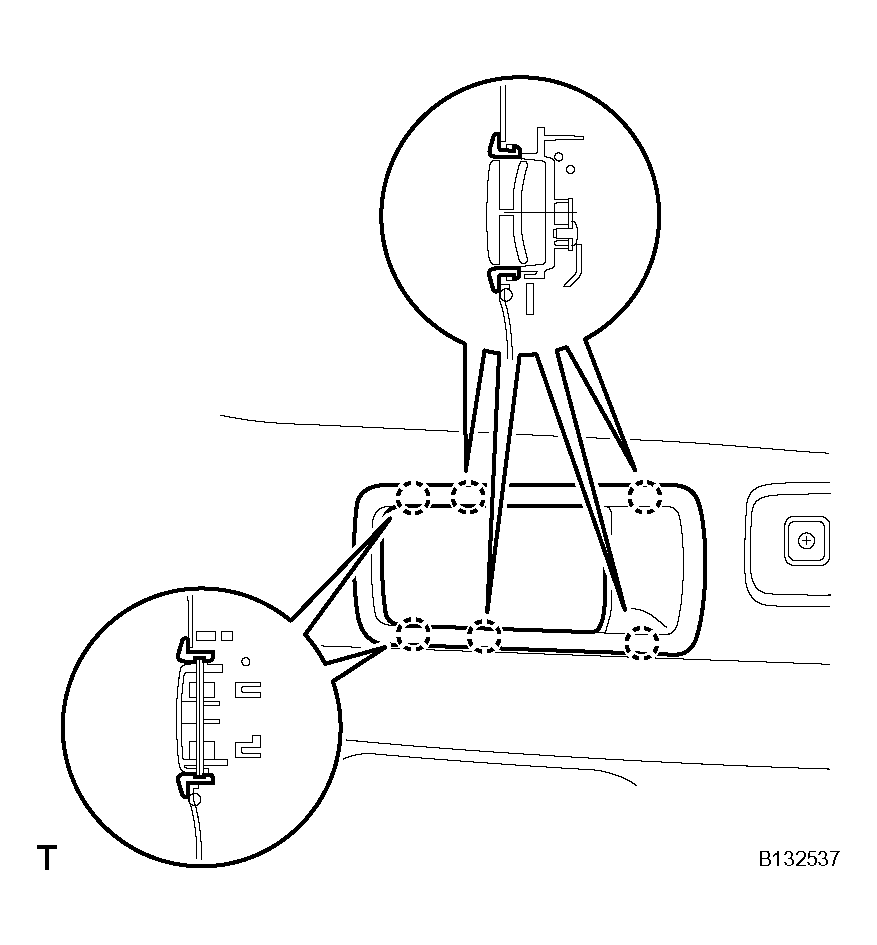

    Fig 1: Removing Bezel
    G04491710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (w/o Rear No. 2 Seat)
    1. Remove the 2 bolts and lever.
    2. Disconnect the rear No. 1 seat lock cable from the lever.
      Fig 2: Removing Bolts And Lever
      G04491711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR NO. 5 SEAT LEG SIDE COVER
    1. Using a screwdriver, detach the 3 claws and clip, and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

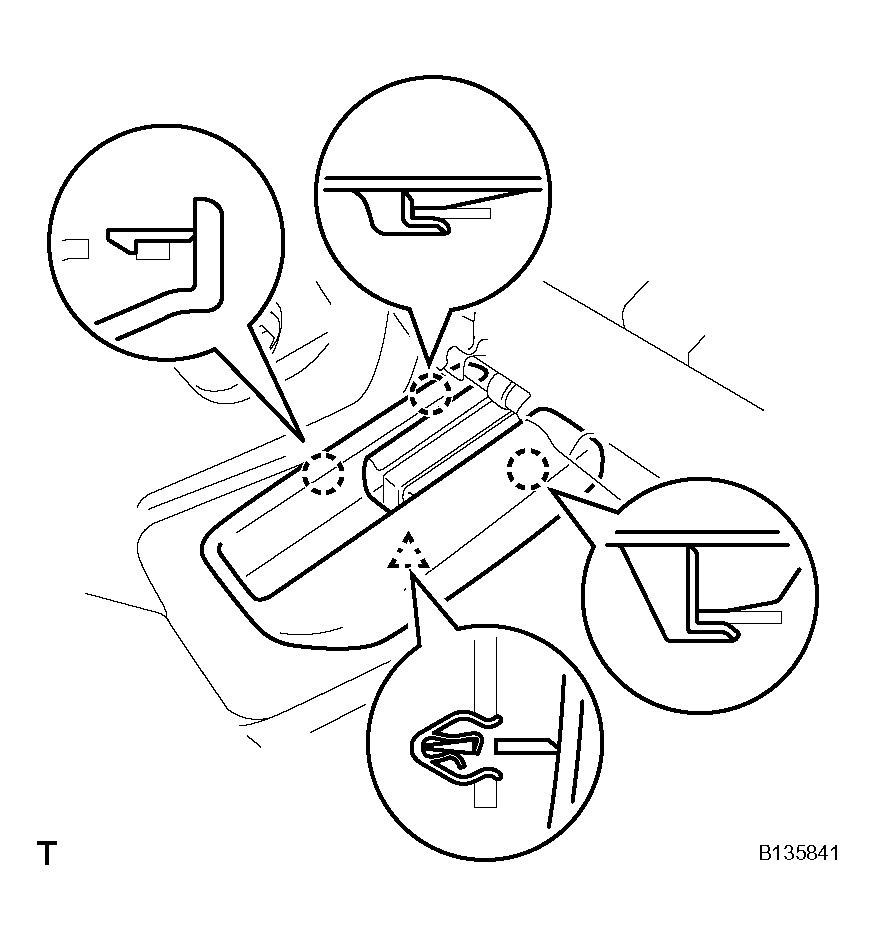

      Fig 3: Detaching Claws And Clip And Removing Rear No. 5 Seat Leg Side Cover
      G04491712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR NO. 4 SEAT LEG SIDE COVER (w/Rear No. 2 Seat)
    1. Using a screwdriver, detach the 4 claws and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

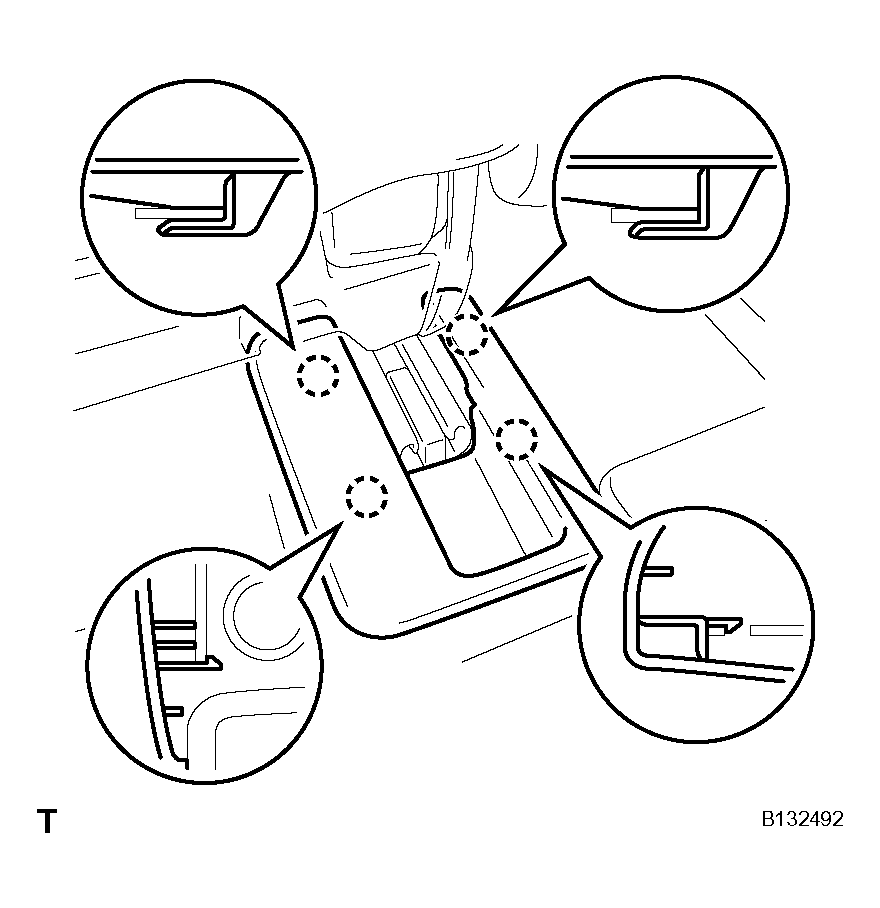

      Fig 4: Removing Rear No. 4 Seat Leg Side Cover (W/Rear No. 2 Seat)
      G04491713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR NO. 4 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat)
    1. Using a screwdriver, detach the 4 claws and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

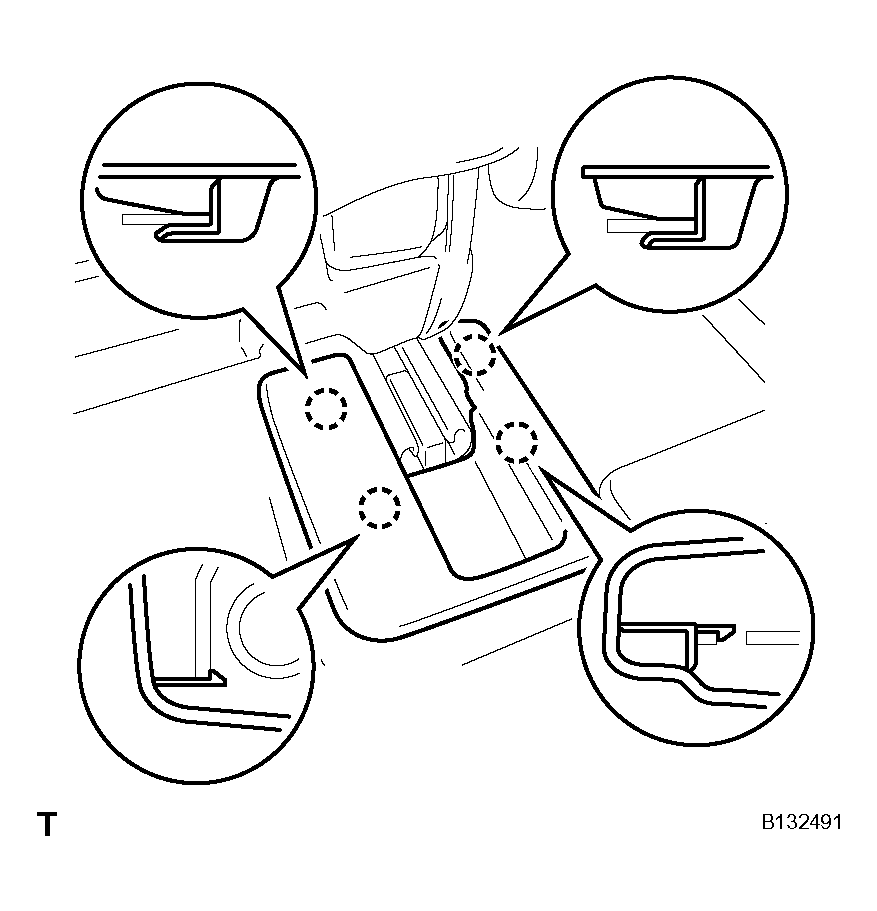

      Fig 5: Removing Rear No. 4 Seat Leg Side Cover (W/O Rear No. 2 Seat)
      G04491714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR NO. 3 SEAT LEG SIDE COVER (w/Rear No. 2 Seat)
    1. Using a screwdriver, detach the 4 claws and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

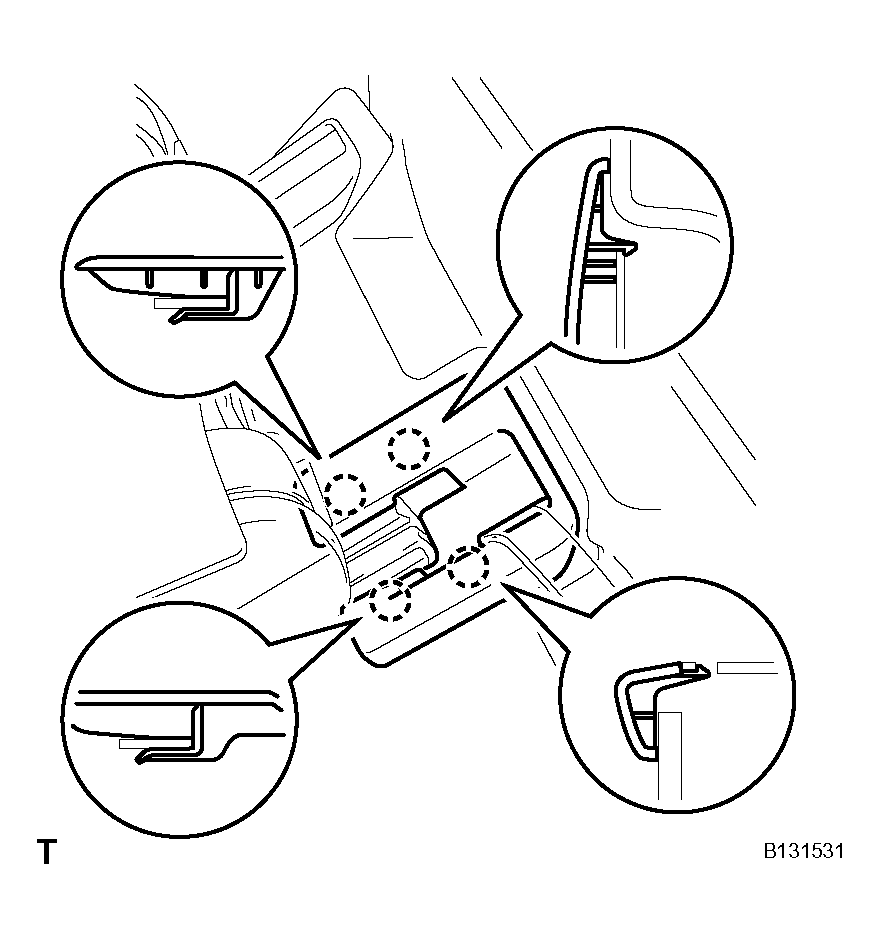

      Fig 6: Removing Rear No. 3 Seat Leg Side Cover (W/Rear No. 2 Seat)
      G04491715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR NO. 3 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat)
    1. Using a screwdriver, detach the 4 claws and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

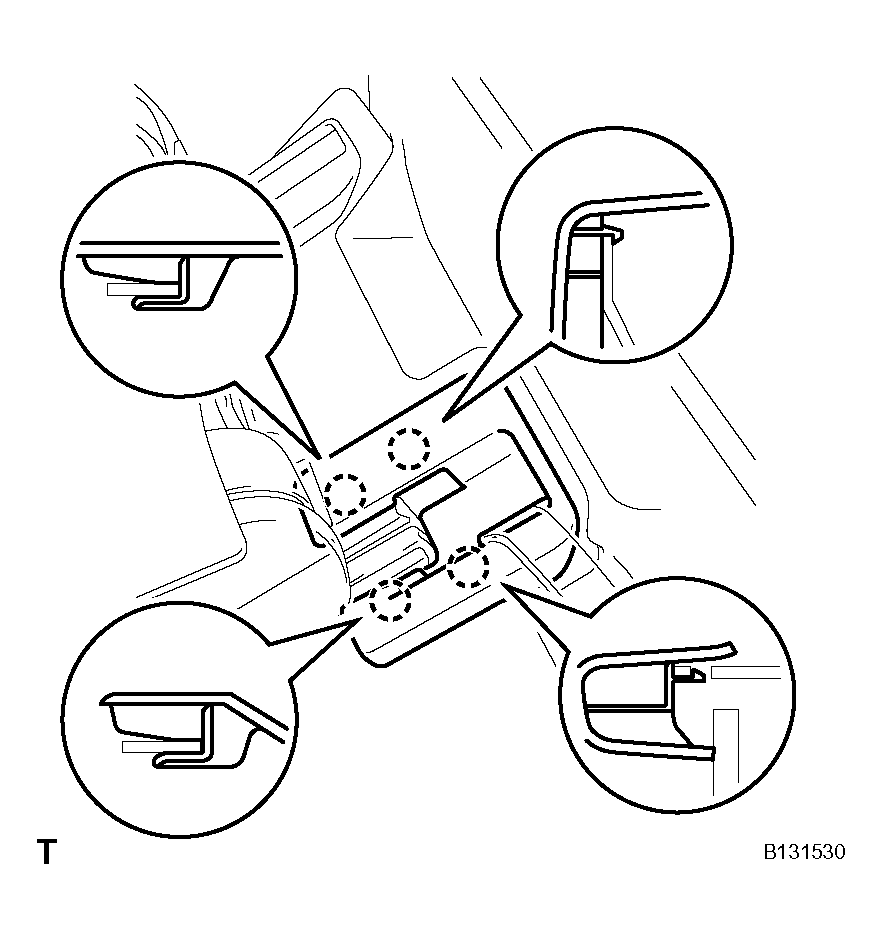

      Fig 7: Removing Rear No. 3 Seat Leg Side Cover (W/O Rear No. 2 Seat)
      G04491716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR SEAT LEG COVER
    1. Using a screwdriver, detach the 8 claws and remove the 2 leg covers.

      HINT:

      Tape the screwdriver tip before use.

      Fig 8: Removing Rear Seat Leg Cover
      G04491717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/Rear No. 2 Seat) (See  REMOVAL  )
  21. REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  22. REMOVE REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/o Rear No. 2 Seat)
    1. Disconnect the lock cable from the seat.
      1. Raise the adjuster's lock piece to release the lock.

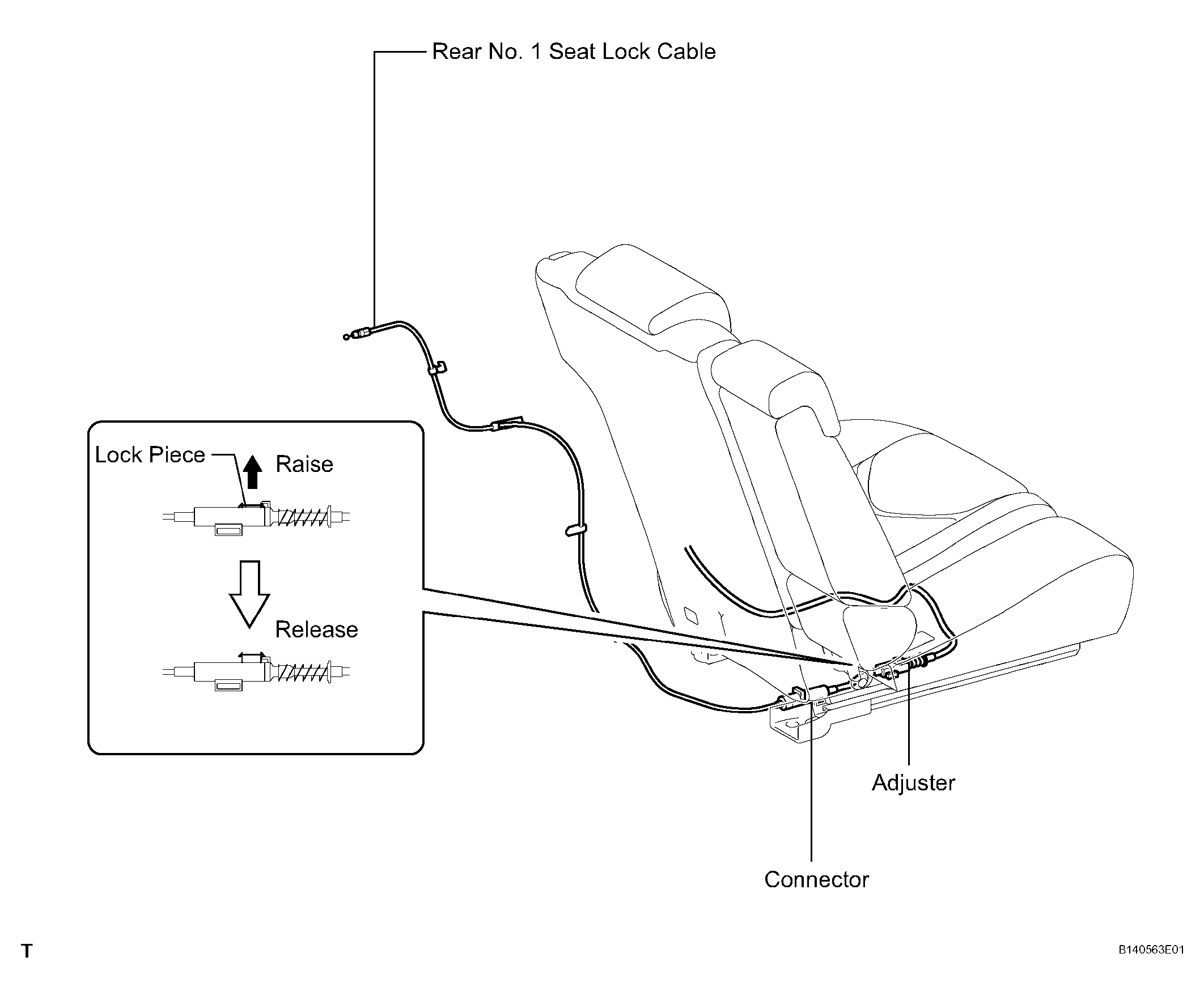

        Fig 9: Removing Rear No. 1 Seat Lock Cable Assembly (W/O Rear No. 2 Seat)
        G04491718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Slide the seat forward and tilt the seatback forward.
        Fig 10: Sliding Seat Forward And Tilt Seatback Forward
        G04491719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the seat's cap from the connector case.
        Fig 11: Removing Seat'S Cap From Connector Case
        G04491720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Pull the seat's cap toward the outside of the vehicle. Then remove the cable from the connector case's slit.
        Fig 12: Removing Cable From Connector Case'S Slit
        G04491721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Remove the body's cap from the connector case.
        Fig 13: Removing Body'S Cap From Connector Case
        G04491722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamps and remove the lock cable.

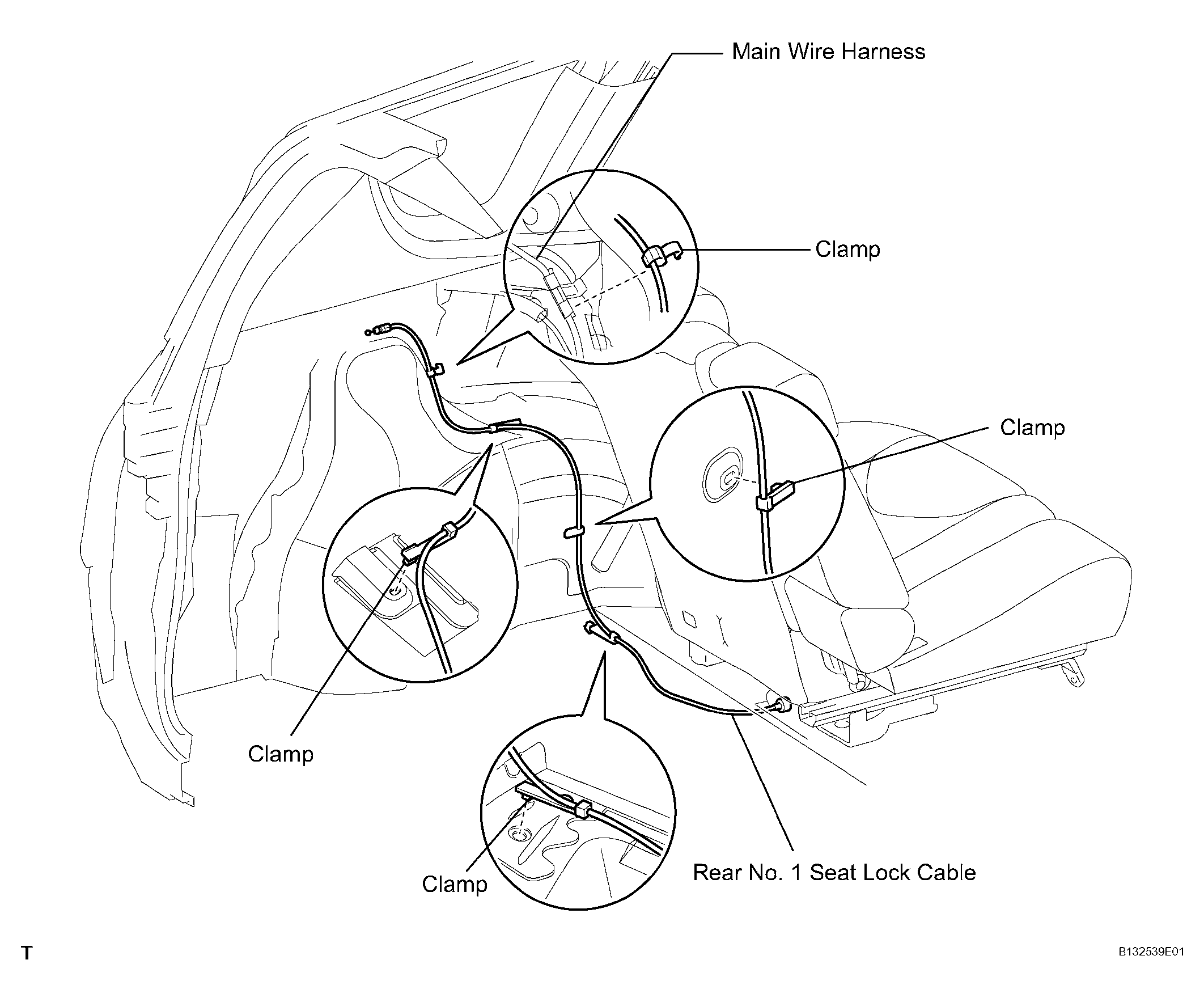

      Fig 14: Detaching Clamps And Removing Lock Cable
      G04491723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
    1. Lift up the seat track adjusting handle and move the seat to the rearmost position.
    2. Remove the 2 bolts on the front side of the seat.
    3. Lift up the seat track adjusting handle and move the seat to the foremost position.
      Fig 15: Removing Bolts On Front Side Of Seat
      G04491724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 bolts on the rear side of the seat.
    5. Fully tilt the seatback forward. Then remove the seat.
      NOTE: Be careful not to damage the vehicle body,
      Fig 16: Removing Bolts On Rear Side Of Seat
      G04491725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
