Rear No. 2 Seat Assembly: Disassembly

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

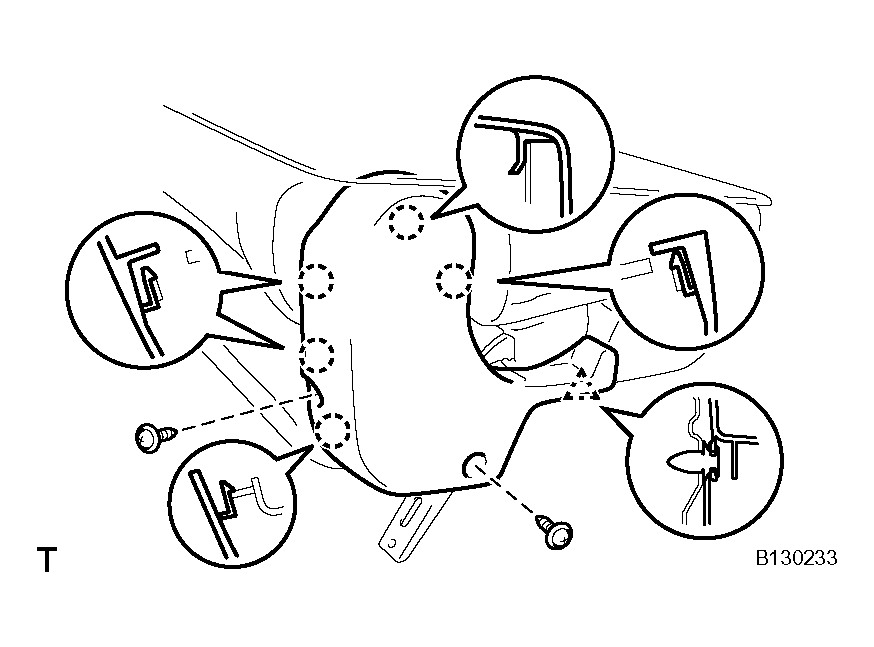

1. REMOVE NO. 1 REAR SEAT RECLINING COVER LH
   1. Remove the 2 screws.
   2. Using a screwdriver, detach the 5 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 1: Removing No. 1 Rear Seat Reclining Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE NO. 2 REAR SEAT RECLINING COVER LH
   1. Remove the 2 screws.
   2. Using a screwdriver, detach the 5 claws and clip, and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Removing No. 2 Rear Seat Reclining Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR NO. 2 SEAT CUSHION ASSEMBLY
   1. Using a clip remover, remove the 2 clips of the seat cushion back side. Then open the seat cushion cover.

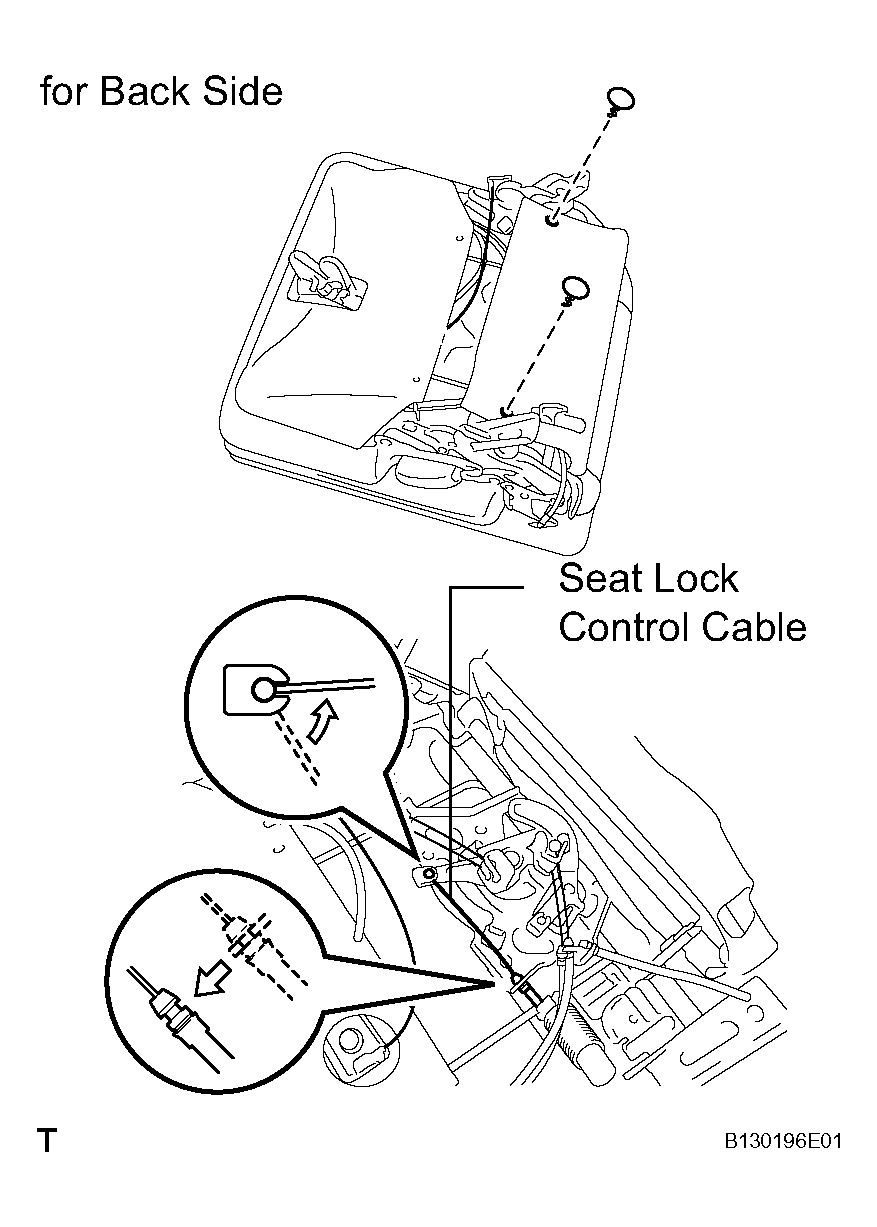

   2. Disconnect the seat lock control cable on the back side from the seat cushion as shown in the illustration.
      Fig 3: Disconnecting Seat Lock Control Cable On Back Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

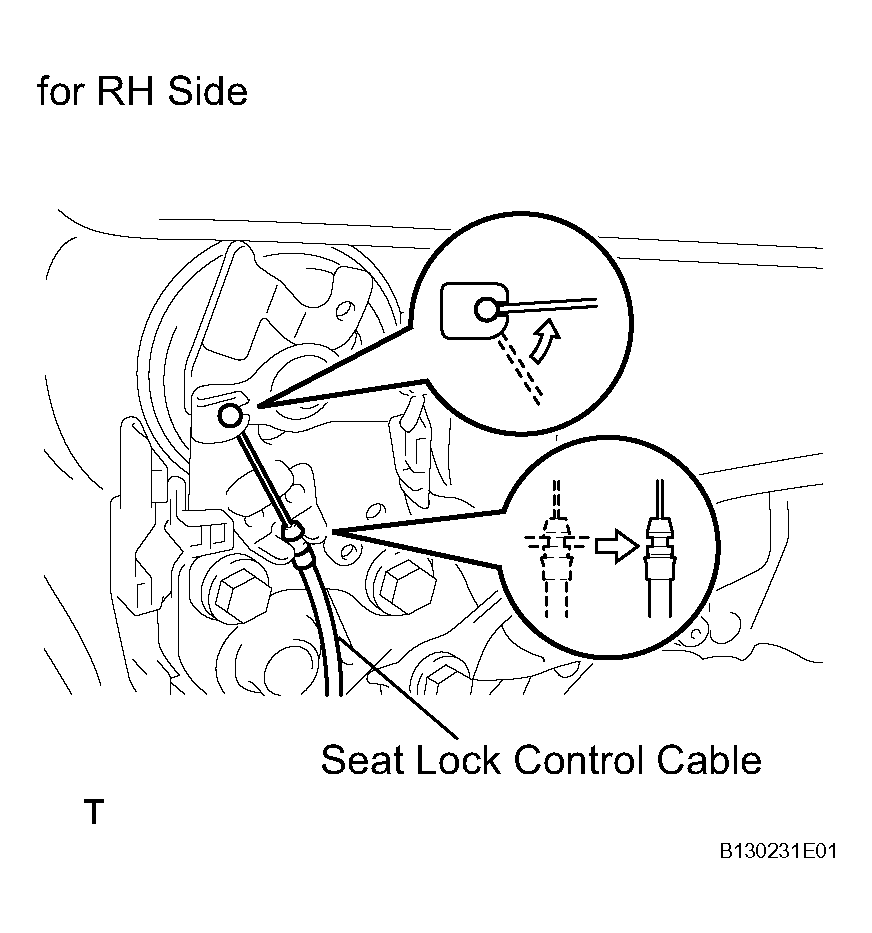

   3. Disconnect the seat lock control cable on the RH side from the seatback as shown in the illustration.
      Fig 4: Disconnecting Seat Lock Control Cable On RH Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

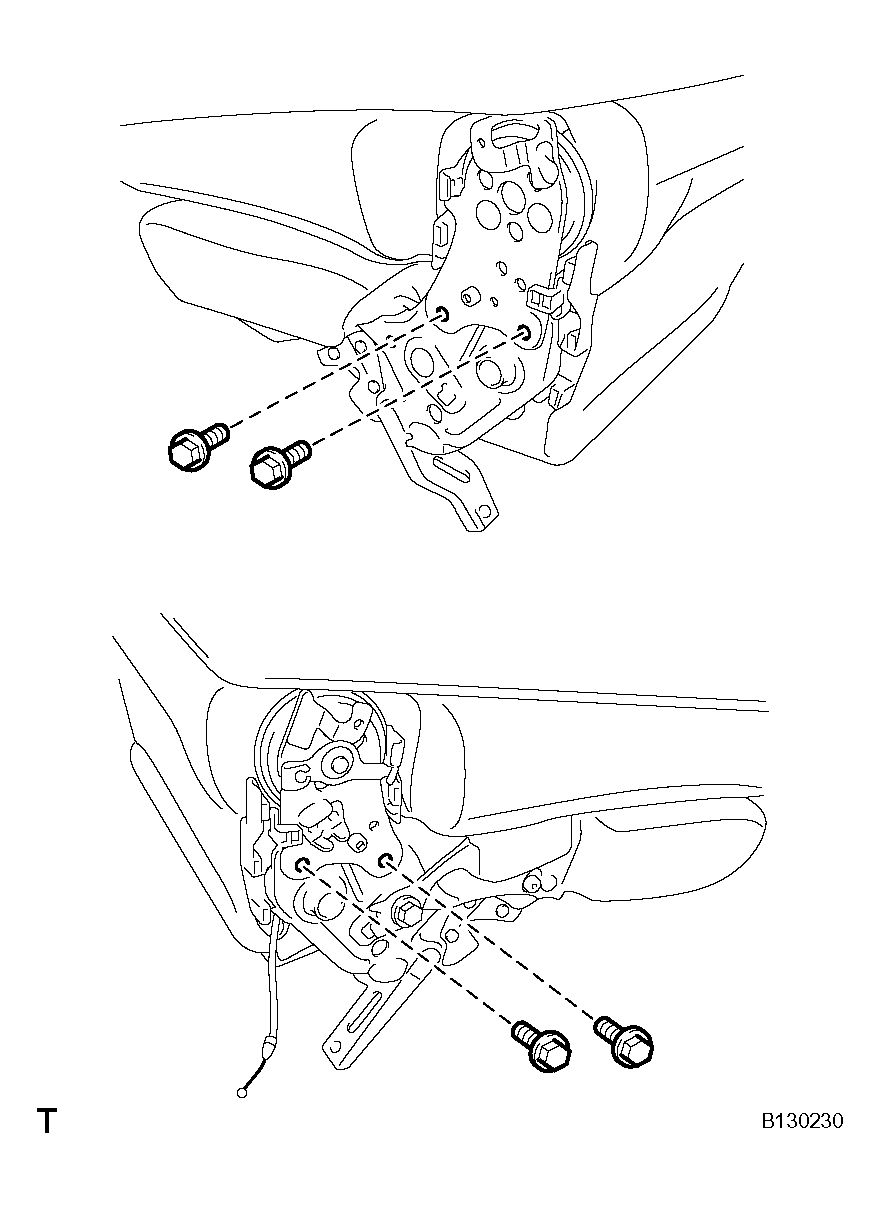

   4. Remove the 4 bolts and seat cushion.
4. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY LH (See  REMOVAL  )
   Fig 5: Removing Bolts And Seat Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR NO. 2 SEAT CUSHION COVER LH
   1. Using a clip remover, remove the 2 clips.
   2. Using a screwdriver, detach the 5 hooks.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Detaching Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

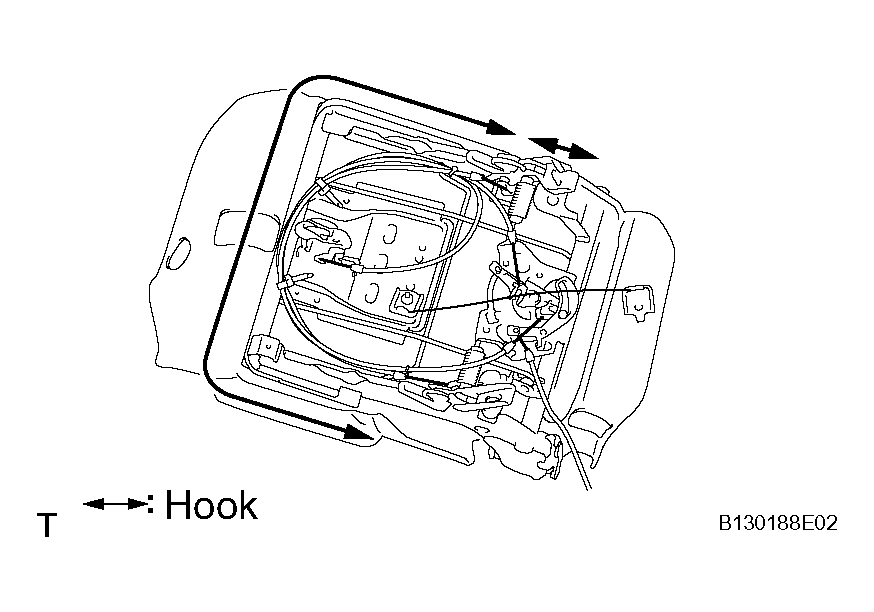

   3. Using a screwdriver, detach the hooks and remove the seat cushion cover (with pad) from the seat cushion spring.
      Fig 7: Identifying Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

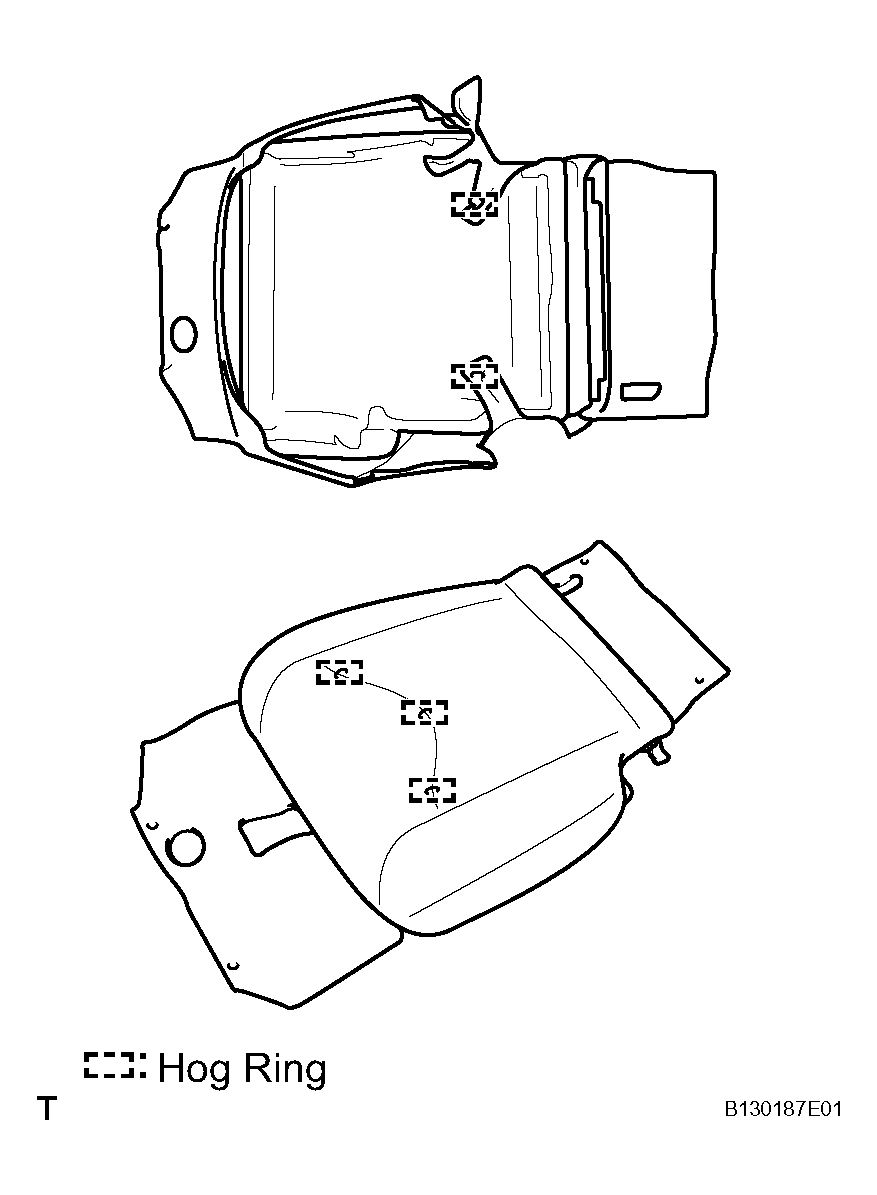

   4. Remove the 5 hog rings and seat cushion cover from the seat cushion pad.
      Fig 8: Removing Hog Rings And Seat Cushion Cover From Seat Cushion Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

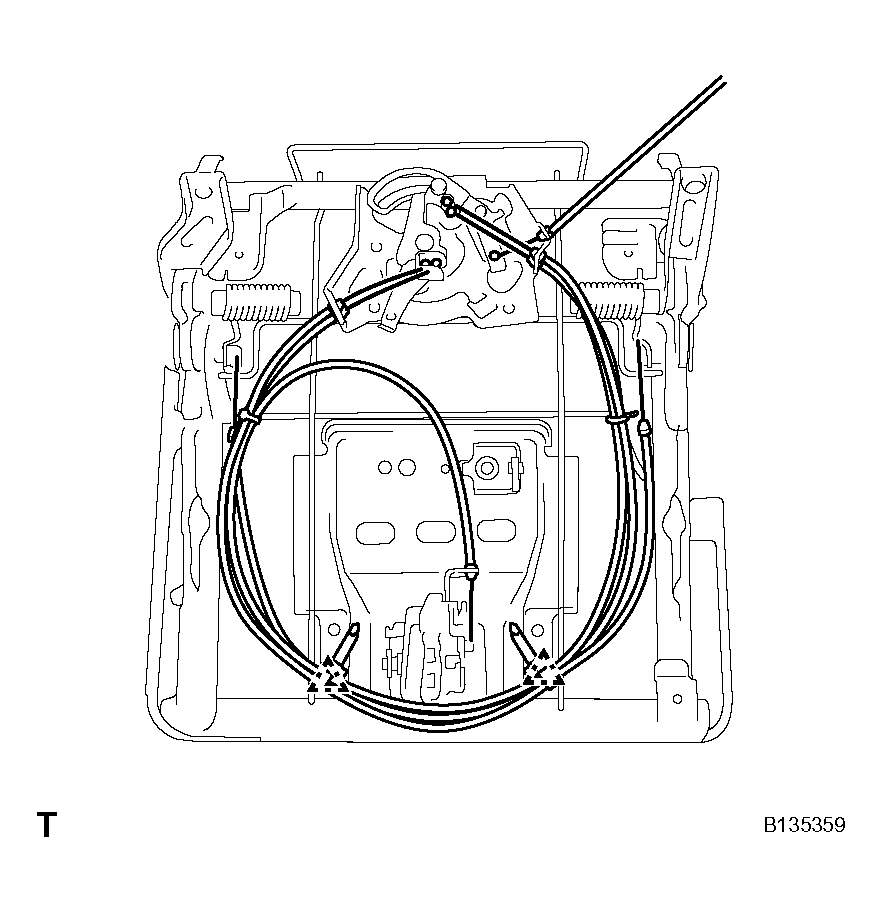

6. REMOVE SEAT LOCK CONTROL CABLE ASSEMBLY

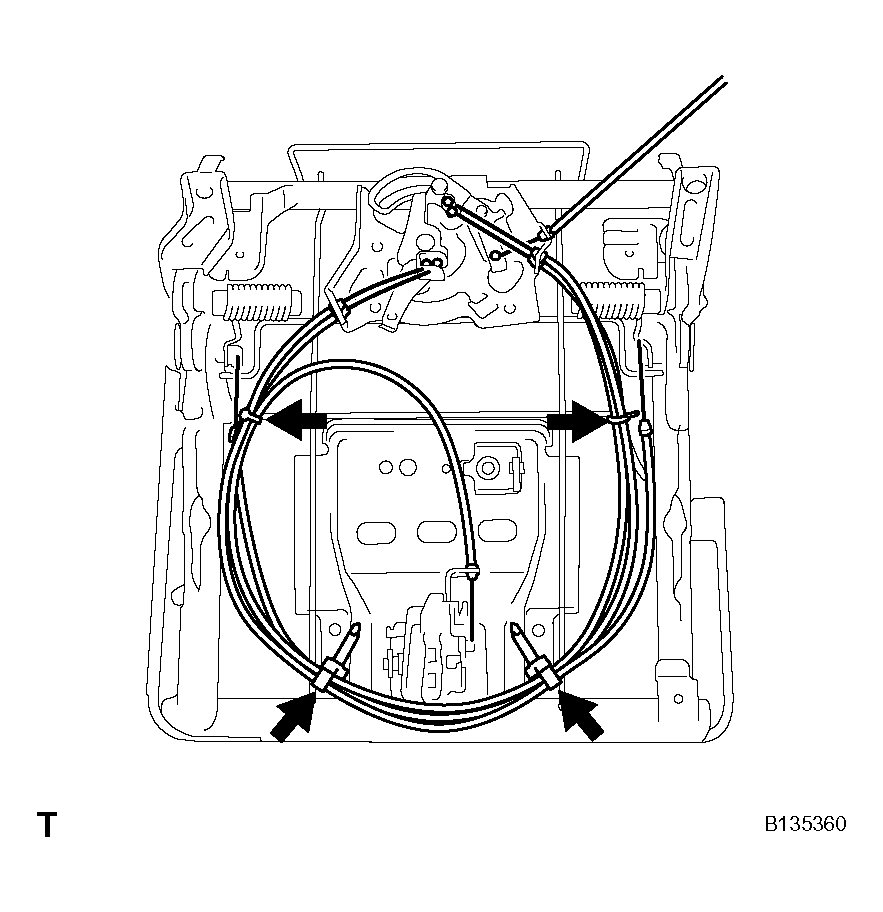

   1. Using a screwdriver, detach the 2 clamps of the cable tie.
      Fig 9: Detaching Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Cut the 4 cable ties.
   3. Remove the 5 cables from the seat cushion spring.
7. REMOVE REAR SEAT CUSHION WIRE SUB-ASSEMBLY
   1. Remove the nut and wire.
8. REMOVE REAR NO. 2 SEAT HEADREST ASSEMBLY
   Fig 10: Removing Nut And Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR SEATBACK LOCK CONTROL BEZEL
   1. Remove the 4 seatback lock hooks.
      Fig 11: Removing Seatback Lock Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 screws.
   3. Detach the 2 claws and remove the bezel.
      Fig 12: Removing Screw And Bezel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH
    1. Using a clip remover, detach the 9 clips and remove the seatback board carpet.
       NOTE: Be careful not to damage the seatback board carpet.
       Fig 13: Identifying Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE REAR NO. 2 SEATBACK COVER
    1. Remove the 19 hog rings.
       Fig 14: Removing Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 claws and remove the 2 headrest supports.
    3. Remove the seatback cover (with pad) from the seatback frame.
       Fig 15: Removing Seatback Cover (With Pad) From Seatback Frame

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 hog rings and seatback cover from the seatback pad.
       Fig 16: Removing Hog Rings And Seatback Cover From Seatback Pad

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

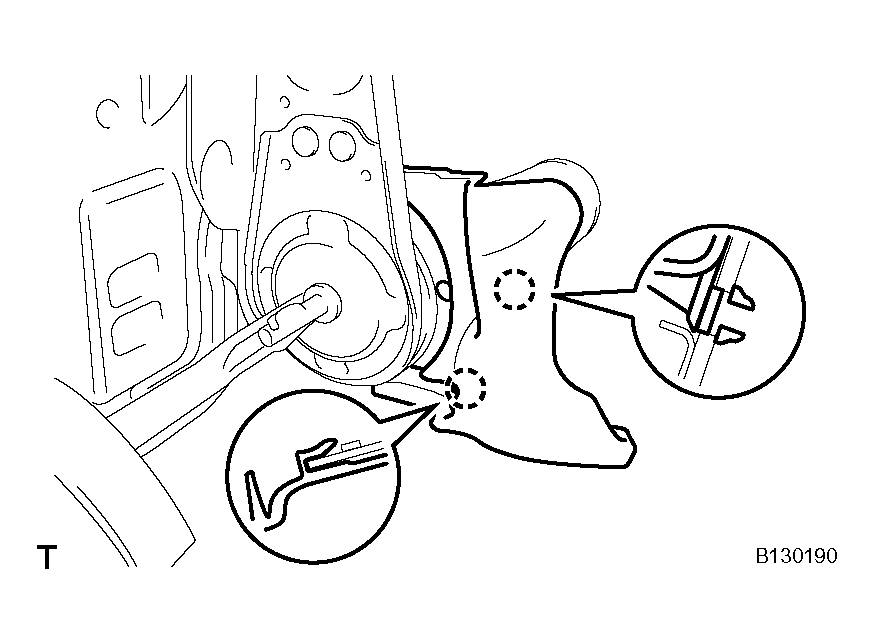

12. REMOVE REAR SEAT RECLINING INNER COVER LH
    1. Using a screwdriver, detach the 2 claws and remove the inner cover.

       HINT:

       Tape the screwdriver tip before use.

    Fig 17: Detaching Claws To Rear Seat Reclining Inner Cover

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE REAR SEAT RECLINING INNER COVER RH

    HINT:

    Use the same procedures described for the LH side.

14. REMOVE SEATBACK LOCK CONTROL CABLE ASSEMBLY

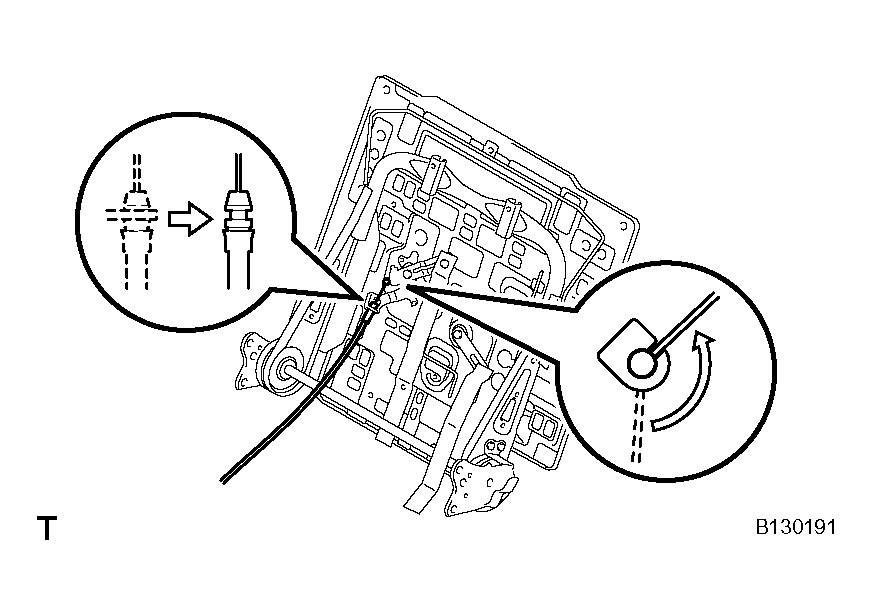

    1. Remove the cable from the seatback frame as shown in the illustration.
15. REMOVE RECLINING LOCK RELEASE BAND
    1. Remove the nut and band.
16. REMOVE SEAT LOCK RELEASE BAND
    1. Remove the nut and band.
       Fig 18: Removing Cable From Seatback Frame

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
