Rear No. 2 Seat Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

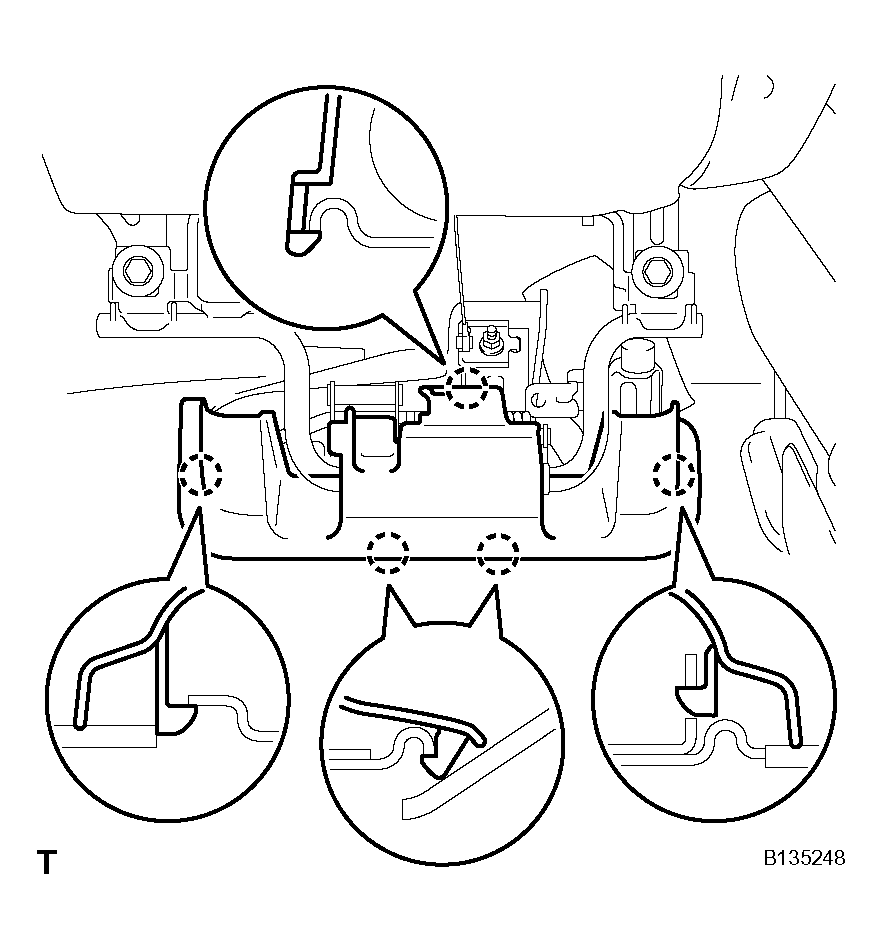

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the RH side.

REMOVE NO. 2 SEAT HINGE COVER LH
1. Fully tilt the seatback forward.
2. Attach the 2 claws and clip.

  Fig 1: Attaching Claws And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the hinge cover in the direction indicated by the arrow in the illustration to detach the 2 claws. Then, remove the hinge cover.

  Fig 2: Pulling Hinge Cover In Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 SEAT LEG COVER LH
1. Using a screwdriver, detach the 5 claws and remove the leg cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 3: Removing No. 2 Seat Leg Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 2 SEAT ASSEMBLY
1. Remove the nut and rear seat cushion wire.
2. Remove the 2 bolts. Then disconnect the seat from the rear No. 2 seat link.

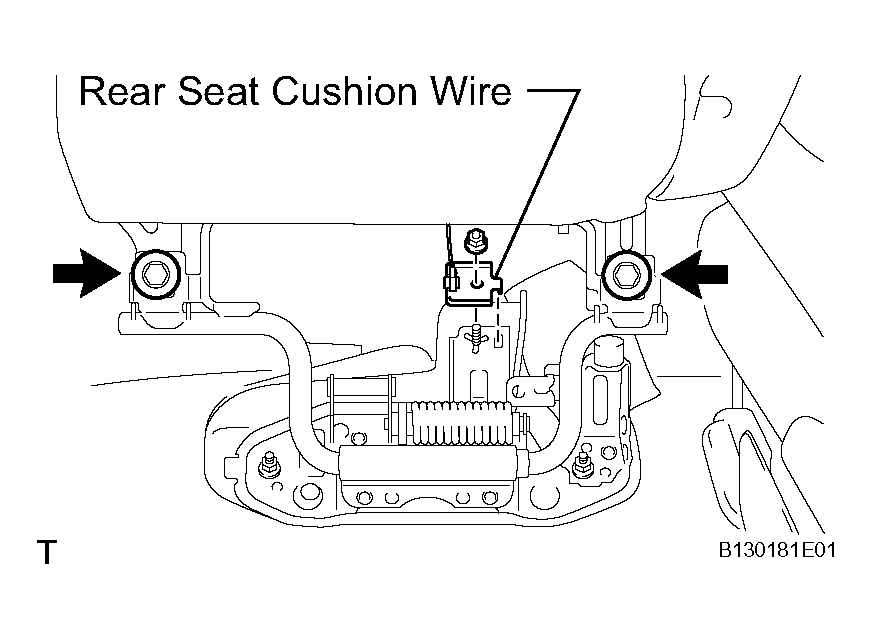

  Fig 4: Removing Nut And Rear Seat Cushion Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and the rear No. 2 seat link.

  Fig 5: Identifying Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pull the lock release band backward and release the 3 seat cushion locks from the lock strikers.
5. Lift up and remove the seat.
  NOTE: Be careful not to damage the vehicle body,
REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Fig 6: Pulling Lock Release Band
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 SEAT LEG BOX PROTECTOR.
1. Using a clip remover, remove the clip.
2. Detach the clip. Then remove the protector.

  Fig 7: Removing Clip And Remove Protector
