Lower Instrument Panel: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LOWER INSTRUMENT PANEL
    1. Connect the connectors and clamps and install the lower instrument panel.
    2. Install the 2 bolts, 3 screws and 2 clips.

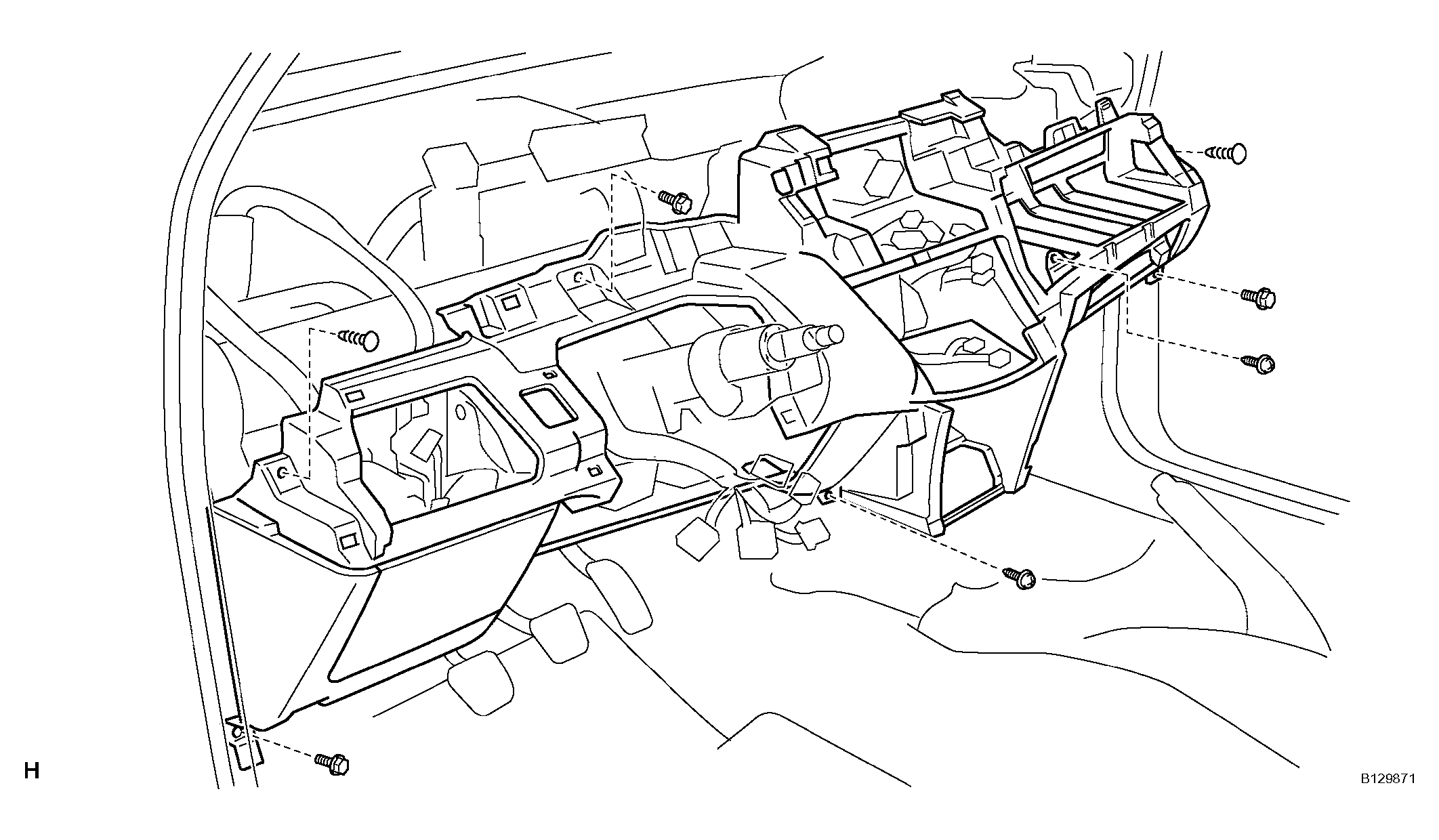

      Fig 1: Installing Lower Instrument Panel
      G04491569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER STEERING ECU ASSEMBLY
    1. Install the ECU with the 3 nuts.
    2. Connect the connectors.

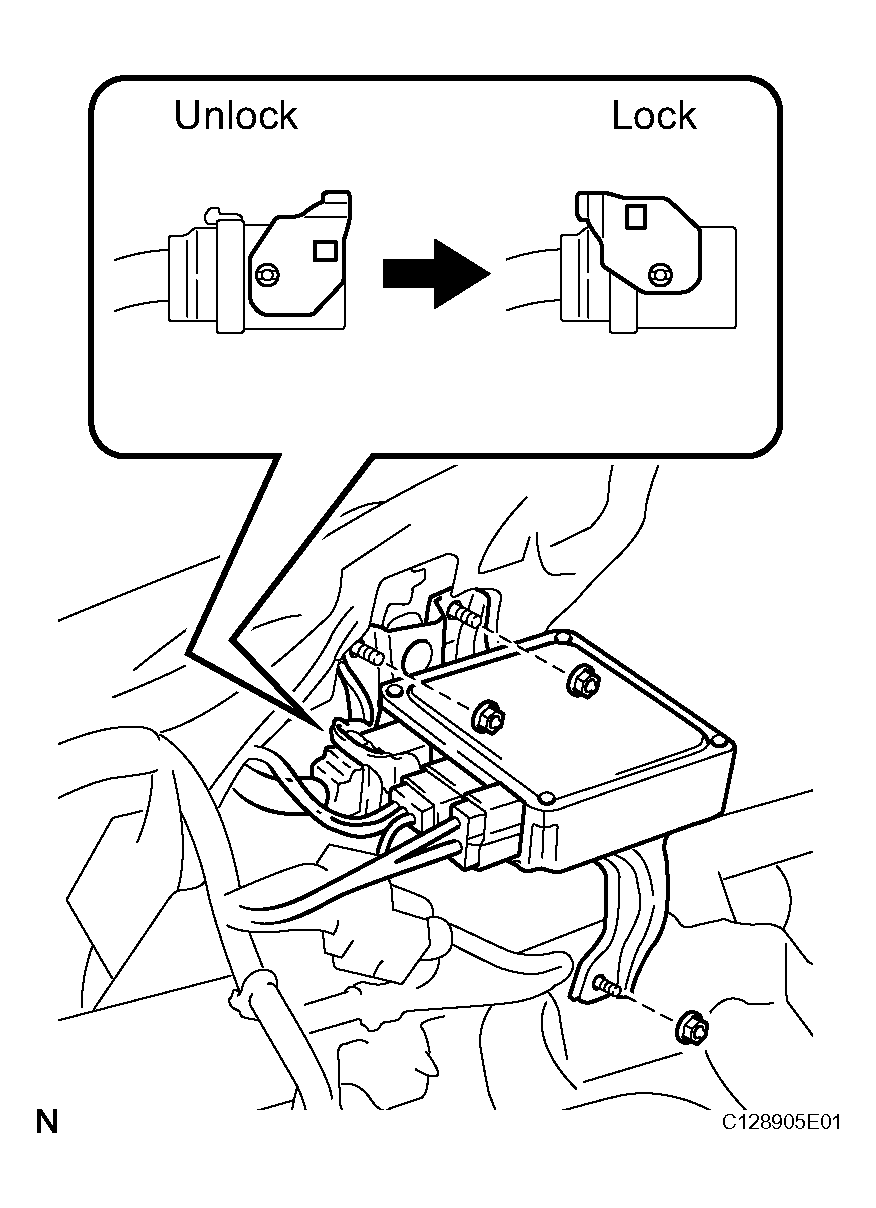

      Fig 2: Installing Power Steering ECU
      G04491570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL BOX
    1. Attach the 6 clips to install the instrument panel box.
    2. Install the screw.
      Fig 3: Installing Instrument Panel Box
      G04491571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL SAFETY PAD COVER
    1. Attach the 4 claws to install the instrument panel safety pad cover.
      Fig 4: Installing Instrument Panel Safety Pad Cover
      G04491572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 SWITCH HOLE BASE
    1. Connect the connectors.
    2. Attach the 4 clips to install the switch hole base.
      Fig 5: Installing No. 1 Switch Hole Base
      G04491573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Attach the 2 hinges to install the door.
      Fig 6: Installing Glove Compartment Door Assembly
      G04491574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw to the glove compartment door stopper.
    3. While pushing in the sides of the glove compartment door as indicated by the arrows in Fig 7, close the door to engage it to the 2 stoppers.

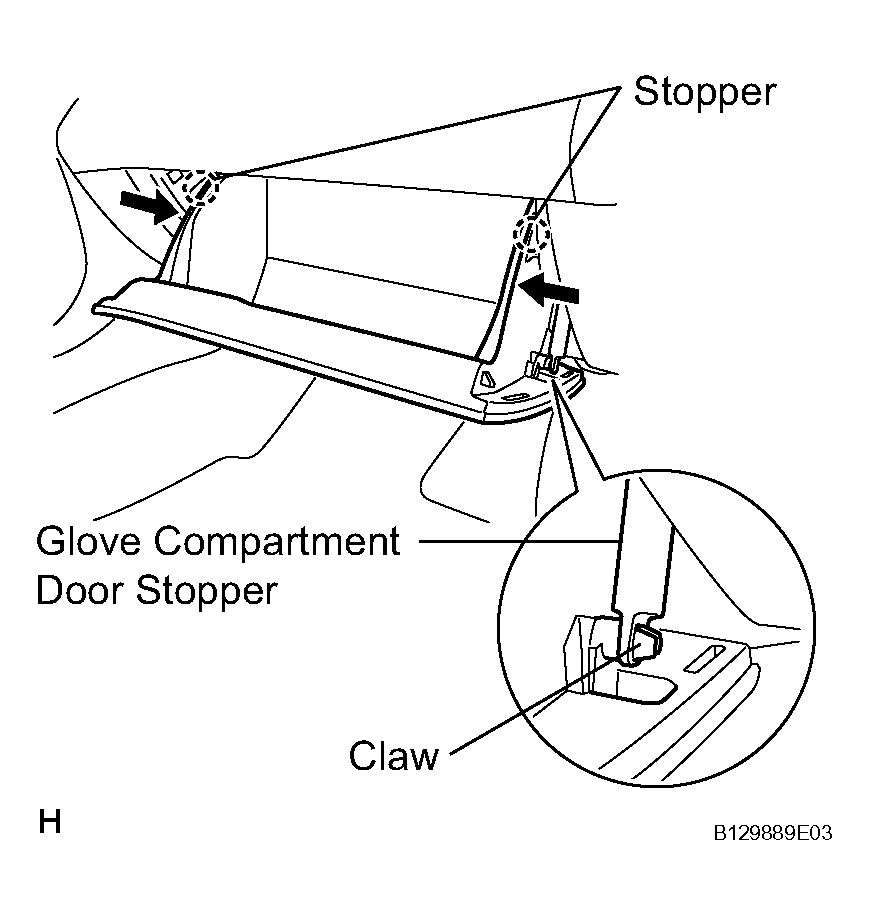

      Fig 7: Identifying Glove Compartment Door Stopper
      G04491575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Attach the 2 claws to install the instrument panel under cover.
      Fig 8: Installing No. 2 Instrument Panel Under Cover Sub-Assembly
      G04491576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
    1. Attach the 8 claws to install the lower instrument panel finish panel.
    2. Install the 2 screws.

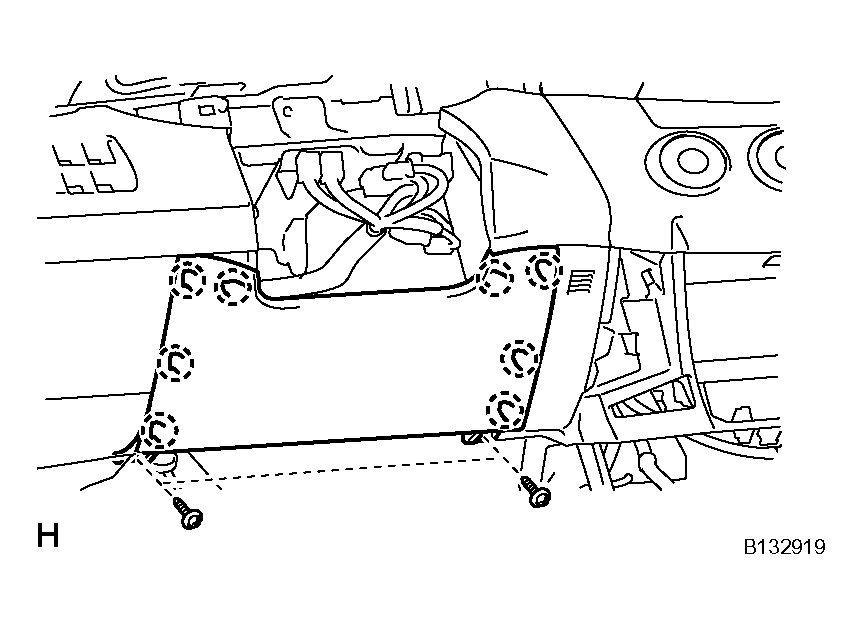

      Fig 9: Installing Lower Instrument Panel Finish Panel
      G04491577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
    1. Connect the connector.
    2. Install the rear console box with the 2 bolts and 2 screws.
    3. Install the console box carpet.

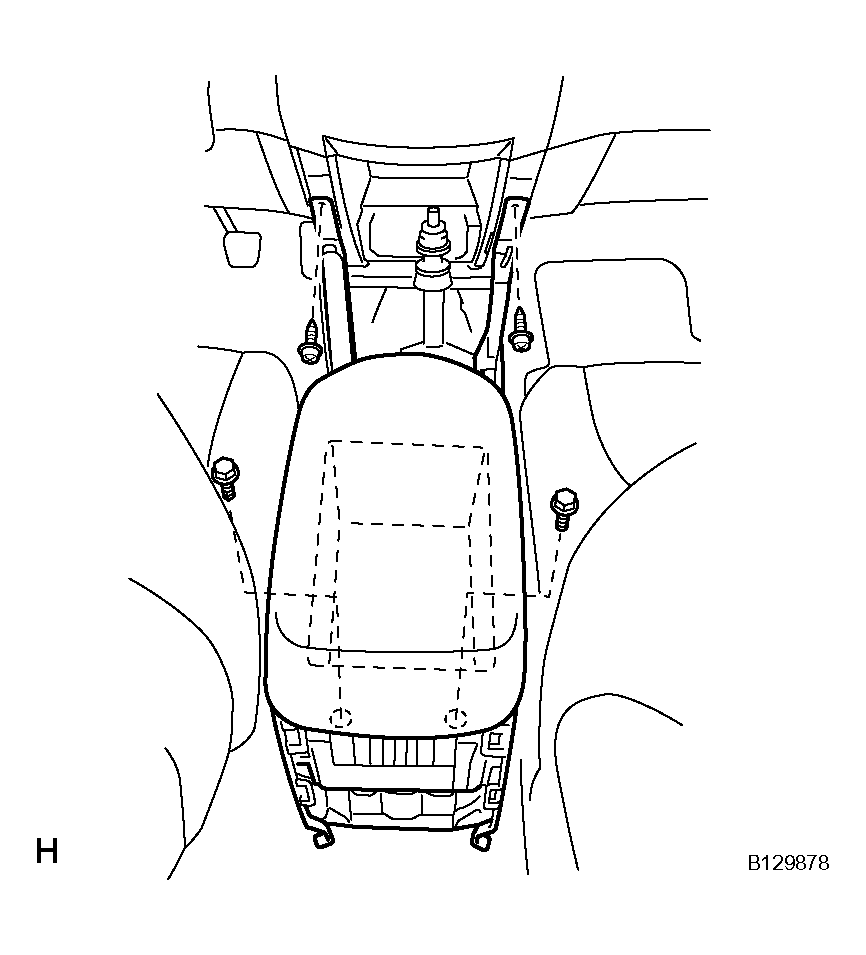

      Fig 10: Installing Rear Console Box Sub-Assembly
      G04491578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
    1. Attach the 2 claws to install the instrument panel bracket cover.
      Fig 11: Installing No. 1 Instrument Panel Bracket Cover Inner LH
      G04491579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
    1. Attach the 2 claws to install the instrument panel bracket cover.
      Fig 12: Installing No. 1 Instrument Panel Bracket Cover Inner RH
      G04491580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL CONSOLE REAR END PANEL
    1. Attach the 6 claws to install the console rear end panel.
      Fig 13: Installing Console Rear End Panel
      G04491581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL CONSOLE REAR END PANEL (RSE Type)
    1. Attach the 2 clips and 4 claws to install the console rear end panel.
      Fig 14: Installing Console Rear End Panel (RSE Type)
      G04491582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL UPPER REAR CONSOLE PANEL SUBASSEMBLY
    1. Connect the connector.
    2. Attach the 4 clips to install the upper rear console panel.
      Fig 15: Installing Upper Rear Console Panel Sub-assembly
      G04491583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL CONSOLE CUP HOLDER BOX
    1. Attach the 2 clips to install the cup holder box.
    2. Install the 2 screws.

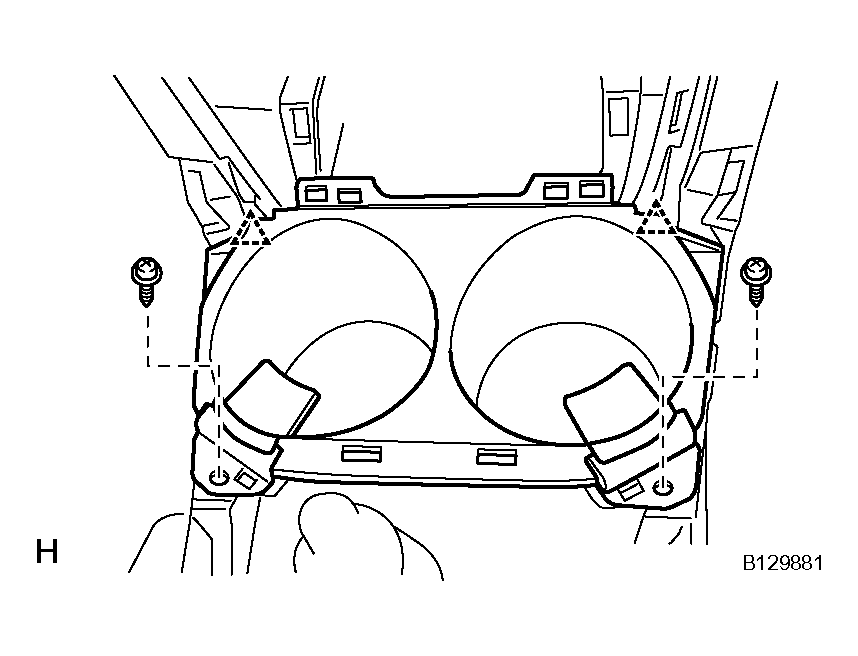

      Fig 16: Installing Console Cup Holder Box
      G04491584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL SWITCH BASE
    1. Connect the connectors.
    2. Attach the 2 clips and 2 claws to install the switch base.
      Fig 17: Installing Switch Base
      G04491585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips and 4 claws to install the upper console panel.
    3. Install the shift lever knob.
      Fig 18: Installing Upper Console Panel Sub-Assembly
      G04491586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Attach the 4 clips to install the upper panel garnish.
      Fig 19: Installing No. 2 Console Upper Panel Garnish
      G04491587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Attach the 4 clips to install the upper panel garnish.
      Fig 20: Installing No. 1 Console Upper Panel Garnish
      G04491588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL HEATER CONTROL SUB-ASSEMBLY (for Automatic Air Conditioning System) (See  INSTALLATION  )
  21. INSTALL HEATER CONTROL SUB-ASSEMBLY (for Manual Air Conditioning System) (See  INSTALLATION  )
  22. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
  23. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
  24. INSTALL SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  25. INSTALL STEERING COLUMN COVER (See appropriate step(s) under  INSTALLATION  )
  26. INSTALL STEERING WHEEL ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  27. INSTALL STEERING PAD ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  28. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the instrument panel (see REASSEMBLY  ).
  29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  30. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
