Front Door: Reassembly

1. Install the 2 cushions.
   Fig 1: Identifying Cushions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side (see INSTALLATION ).

1. Using "Torx" socket wrench T30, install the front door outside handle frame with the screw.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

   NOTE: A cover should be inserted between the nut and the door panel.
   Fig 2: Identifying Front Door Outside Handle Frame Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 3 claws and install the front door outside handle front pad.
   Fig 3: Identifying Front Door Outside Handle Front Pad Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the front door outside handle rear pad.
   Fig 4: Identifying Front Door Outside Handle Rear Pad Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. While pushing the front door outside handle in the direction of the arrow mark shown in Fig 5, install the front door outside handle.

1. Engage the 2 claws and install the front door outside handle cover.
   Fig 6: Identifying Front Door Outside Handle Cover Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using "Torx" socket wrench T30, install the cover with the door lock key cylinder.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   HINT:

   Make sure that the door lock key cylinder rod is inserted.

3. Install the hole plug.
   Fig 7: Identifying Cover With Door Lock Key Cylinder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the sliding and rotating areas of the front door window regulator.
   NOTE: Do not apply grease to the window regulator spring.
2. Install the front door window regulator with the 6 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE: Do not drop the window regulator as it may be damaged.
3. Connect the connector.
   Fig 8: Identifying Front Door Window Regulator Sub-Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door glass onto the front door window regulator with the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE: Do not damage the glass.
   Fig 9: Identifying Front Door Glass Sub-Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hole plug.
   Fig 10: Identifying Hole Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door window frame rear lower, and temporarily tighten the bolt.
   Fig 11: Identifying Front Door Window Frame Rear Lower Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door lower frame bracket garnish with the bolt and 2 screws.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   Fig 12: Identifying Front Door Lower Frame Bracket Garnish Bolt & Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door frame sub-assembly front lower with the screw.
2. Temporarily tighten the bolt.
   Fig 13: Identifying Front Door Frame Sub-Assembly Front Lower Screw & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door glass run.
   Fig 14: Identifying Front Door Glass Run

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the front door window frame rear lower to the specified torque with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   Fig 15: Identifying Front Door Window Frame Rear Lower Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the front door frame sub-assembly front lower to the specified torque with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   Fig 16: Identifying Front Door Frame Sub-Assembly Front Lower Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the hole plug.
   Fig 17: Identifying Hole Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

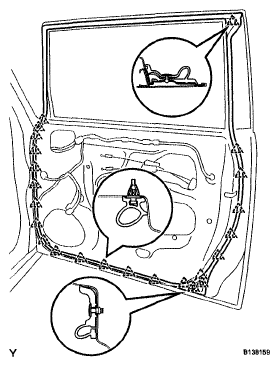

1. Install the front door weatherstrip.
   Fig 18: Identifying Front Door Weatherstrip Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the sliding areas of the door check.
2. Install the front door check onto the door panel with the 2 nuts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

3. Apply adhesive to the threads of the bolt.

   Adhesive: Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.

4. Install the front door check onto the body panel with the bolt.

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   Fig 19: Identifying Front Door Check Nuts & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front door inside panel plate with the 4 screws.
   Fig 20: Identifying Front Door Inside Panel Plate Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply butyl tape to the door panel, then install the new front door service hole cover.
   Fig 21: Identifying New Front Door Service Hole Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • When installing the service hole cover, pull the links out through service hole.
   • There should be no wrinkles or folds after attaching the service hole cover.
   • After attaching the service hole cover, check the quality of the seal.

HINT:

Use the same procedure as for the LH side (See INSTALLATION ).

HINT:

Use the same procedure as for the LH side (See INSTALLATION ).

1. Install the front No. 2 door service hole cover with the 4 screws.
   Fig 22: Identifying Front No. 2 Door Service Hole Cover Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the front door lock remote control cable and front door inside locking cable.
   Fig 23: Identifying Front Door Lock Remote Control Cable & Inside Locking Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 10 clips and install the front door trim board.
   Fig 24: Identifying Front Door Trim Board Sub-Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the 2 screws.
   Fig 25: Identifying Front Door Trim Board Sub-Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. for LH side.

   Close the 2 covers.

   Fig 26: Closing Covers (For LH Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. for RH side:

   Close the 2 covers.

   Fig 27: Closing Covers (For RH Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 3 claws and clip and install the front armrest base upper panel.
   Fig 28: Identifying Front Armrest Base Upper Panel Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
