Ignition Coil: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. DRAIN ENGINE COOLANT  (See ON-VEHICLE INSPECTION )
  3. REMOVE WINDSHIELD WIPER LINK ASSEMBLY  (See REMOVAL )
  4. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY  (See REMOVAL )
  5. REMOVE V-BANK COVER SUB-ASSEMBLY  (See REMOVAL )
  6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  (See REMOVAL )
  7. REMOVE INTAKE AIR SURGE TANK ASSEMBLY  (See REMOVAL )
  8. REMOVE NO. 1 SURGE TANK STAY
    1. Remove the bolt and disconnect the harness clamp.
      Fig 1: Locating Harness Clamp
      G04975497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 1 surge tank stay.
    Fig 2: Locating No. 1 Surge Tank Stay Bolt
    G04975498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 6 ignition coil connectors.
    2. Remove the 6 bolts and 6 ignition coils.

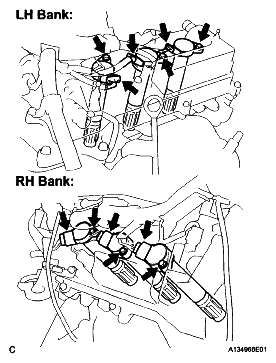

    Fig 3: Locating Ignition Coil Bolts
    G04975499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
