Instrument Panel Safety Pad: Removal

  1. BOLTS, SCREWS AND NUTS TABLE

    HINT:

    All bolts, screws and nuts relevant to installing the instrument panel are shown along with their alphabet code in the table below.

    1. Remove of bolts, screws and nuts table.
    NOTE: Be sure to tape the tip of the screwdriver when using it to disengage the meshing of the clips and claws.

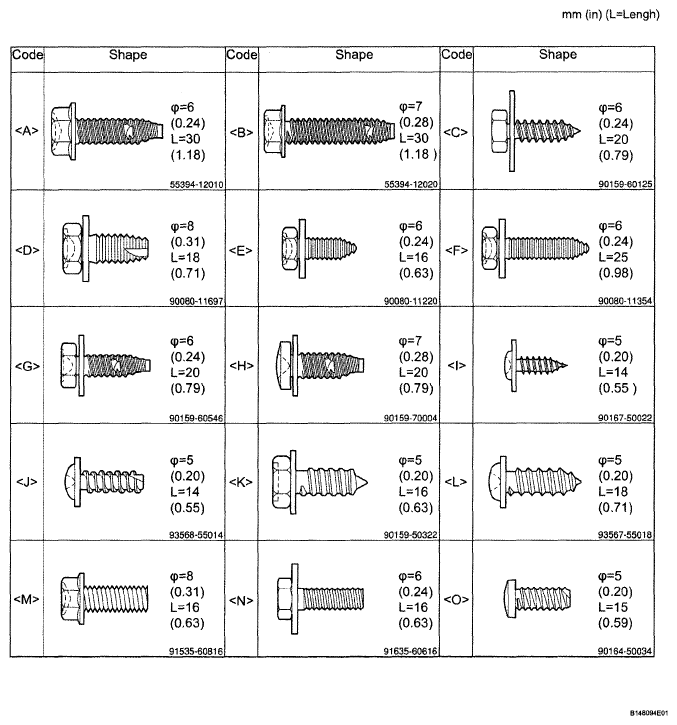

    Fig 1: Bolts, Screws And Nuts Table
    G05196288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING PAD  (See REMOVAL )
  5. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  6. REMOVE METER HOOD SUB-ASSEMBLY
    1. Remove the clip.
    2. Using a screwdriver, disengage the 7 claws, then remove the meter hood sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Identifying Meter Hood Sub-Assembly Claws
      G05196289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  8. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a molding remover, disengage the 4 claws, then remove the No. 1 instrument panel register assembly.
      Fig 3: Removing No. 1 Instrument Panel Register Assembly
      G05196290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedures for the No. 3 register assembly and No. 1 register assembly.

  10. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Turn the shift lever knob sub-assembly counterclockwise and remove the shift lever knob sub-assembly.
  11. REMOVE UPPER CONSOLE PANEL
    1. Using a screwdriver, disengage the 6 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connector, then remove the upper console panel.
      Fig 4: Identifying Upper Console Panel Claws
      G05196291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE HEATER CONTROL KNOB
  13. REMOVE INSTRUMENT CLUSTER FINISH PANEL
    1. Remove the screw < J> or < O>.
    2. Using a screwdriver, disengage the 4 clips and 4 claws, then remove the instrument cluster finish panel.

      HINT:

      Tape the screwdriver tips before use.

    3. Disconnect the connectors.
    NOTE: Do not pull the lid of auxiliary box.
    Fig 5: Disengaging Instrument Cluster Finish Panel Clips And Claws
    G05196292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 4 claws < K>.
    2. Using a screwdriver, disengage the 2 clips and 4 claws, then remove the center instrument cluster finish panel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connectors.
    Fig 6: Identifying Center Instrument Cluster Finish Panel Sub-Assembly Clips And Claws
    G05196293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (for Automatic Transaxle)
    1. Remove the screw < l> from the glove compartment door stopper sub-assembly.
    2. Deform the upper part of the glove compartment door assembly to release the stoppers.
    3. Pull the glove compartment door assembly upward to remove it.
    Fig 7: Identifying Glove Compartment Door Stopper
    G05196294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT PILLAR GARNISH LH
    1. Disengage the clip.
    2. Pull the front pillar garnish LH upward and disengage the 2 claws, then remove the front pillar garnish LH.
      Fig 8: Removing Front Pillar Garnish LH
      G05196295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and LH side.

  18. DISCONNECT PASSENGER AIRBAG CONNECTOR  (See REMOVAL )
  19. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the bolt < D> or < M> and 2 screws < J>.

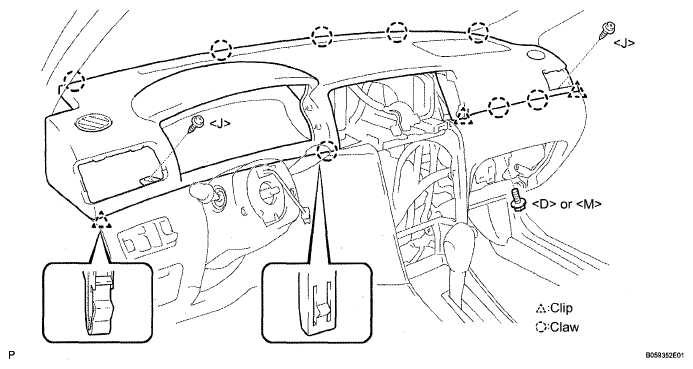

      Fig 9: Disengaging Upper Instrument Panel Sub-Assembly Clips And Claws
      G05196296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 3 clips and 8 claws.
    3. Remove the upper instrument panel sub-assembly.
  20. REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY  (See REMOVAL )
  21. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  22. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY  (See REMOVAL )
  23. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See  REMOVAL  )
  24. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Disengage the clip then remove the glove compartment door stopper sub-assembly.
    Fig 10: Removing Glove Compartment Door Stopper Sub-Assembly
    G05196297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws, then remove the parking brake hole cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      Fig 11: Disengaging Parking Brake Hole Cover Claws
      G05196298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE CONSOLE BOX CARPET
  27. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
    1. for Automatic transaxle:
      1. Remove the 2 bolts < F> or < N>, 4 screws < J> or < O> and rear console box sub-assembly.
    2. for Manual transaxle:
      1. Remove the 2 bolts < F> or < N>, 2 screws < J> or < O> and rear console box sub-assembly.
    Fig 12: Removing Rear Console Box Sub-Assembly
    G05196299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, disengage the 7 claws, then remove the front door scuff plate LH.

      HINT:

      Tape the screwdriver tip before use.

      Fig 13: Disengaging Front Door Scuff Plate Claws
      G05196300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  30. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
    2. Disengage the clip, then remove the cowl side trim board LH.
      Fig 14: Disengaging Cowl Side Trim Board Clip
      G05196301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures for the RH side and LH side.

  32. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Disconnect the DLC3 connector.
    2. Remove the hood lock control lever.
    3. Remove the 3 screws < G> or < H>.
    4. Remove the 2 bolts < E> or < N>.
    5. Remove the bolts < A> or.
    6. Remove the bolts < C>.
    7. Remove the 8 clips and lower instrument panel sub-assembly.

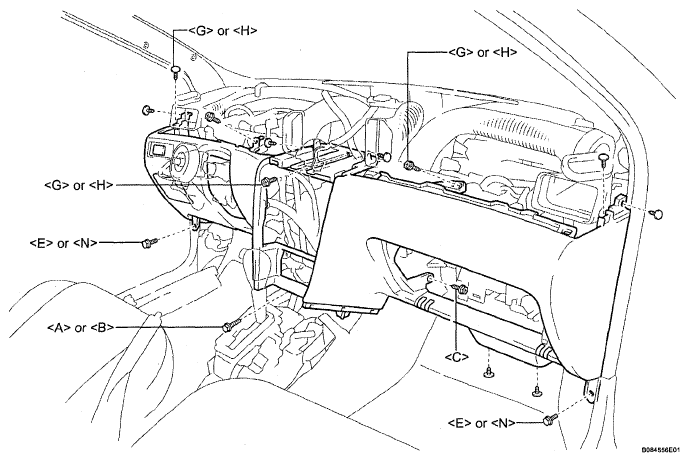

    Fig 15: Removing Lower Instrument Panel Sub-Assembly Clips
    G05196302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INSTRUMENT PANEL BOX
  34. REMOVE INSTRUMENT PANEL BOX SPRING
