Front Passenger Airbag Assembly: Removal

  1. PRECAUTION
    CAUTION: Be sure to read "PRECAUTION " thoroughly before servicing (see ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

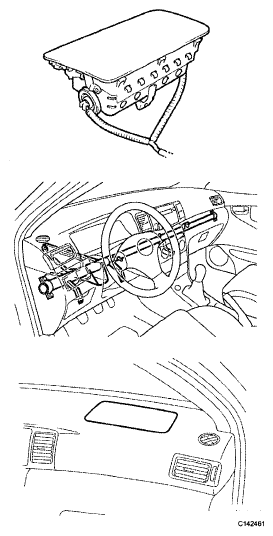

    Fig 1: Identifying Front Passenger Airbag Assembly
    G05195696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the screw from the glove compartment door stopper sub-assembly.
    2. Pull the glove compartment door assembly to remove it.
    Fig 2: Removing Glove Compartment Door Assembly
    G05195697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT FRONT PASSENGER AIRBAG ASSEMBLY CONNECTOR
    1. Disconnect the connector from the front passenger airbag assembly.
    NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    Fig 3: Disconnecting Connector From Front Passenger Airbag Assembly
    G05195698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
    1. Remove the bolt and the 2 nuts.
    2. Remove the front passenger airbag assembly.
    Fig 4: Removing Front Passenger Airbag Assembly
    G05195699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
