Parking Brake Cable: Removal

HINT:

Replace the parking brake cable assembly No.2 using the same procedures as for the parking brake cable assembly No.3.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH  (See REMOVAL )
3. REMOVE REAR DISC
4. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING  (See DISASSEMBLY )
5. REMOVE PARKING BRAKE SHOE STRUT LH  (See DISASSEMBLY )
6. REMOVE PARKING BRAKE SHOE  (See INSPECTION )
7. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
8. REMOVE POSITION INDICATOR HOUSING ASSEMBLY  (See REMOVAL )
9. REMOVE CONSOLE BOX UPPER
10. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
11. REMOVE CONSOLE BOX ASSEMBLY  (See REMOVAL )
12. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO. 4  (See REMOVAL )
13. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.3
    1. Remove the clip and separate the parking brake cable assembly No.3 from the parking brake equalizer.
       Fig 1: Locating Parking Brake Cable Assembly Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the parking brake cable assembly No.3 from the backing plate.
       Fig 2: Removing Parking Brake Cable Assembly From the Backing Plate

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and nut as shown in the illustration, then remove the parking brake cable assembly No.3.

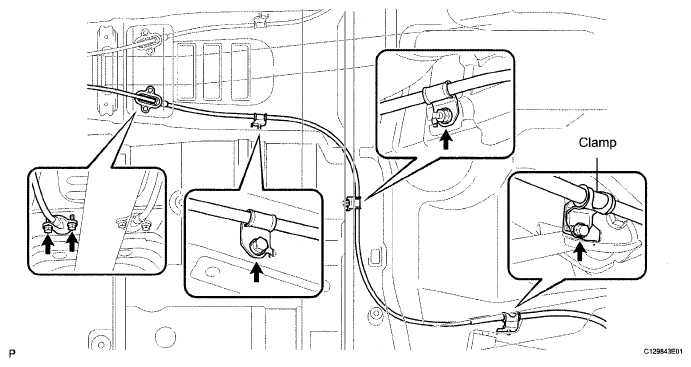

       Fig 3: Locating Parking Brake Cable Assembly Bolts And Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clamp from the parking brake cable assembly No.3.
