Parking Brake Pedal: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL  (See ON-VEHICLE INSPECTION )
  2. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH  (See REMOVAL )
  3. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH  (See REMOVAL )
  4. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER  (See REMOVAL )
  5. REMOVE REAR SEAT TRACK BRACKET COVER INNER LH  (See REMOVAL )
  6. REMOVE FRONT LH SEAT ASSEMBLY  (See REMOVAL )
  7. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  8. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  9. REMOVE INSTRUMENT SIDE PANEL LH  (See REMOVAL )
  10. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH  (See REMOVAL )
  11. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1  SeeREMOVAL
  12. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  13. REMOVE POSITION INDICATOR HOUSING ASSEMBLY  (See REMOVAL )
  14. REMOVE CONSOLE BOX UPPER
  15. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER  (See REMOVAL )
  16. REMOVE CONSOLE BOX ASSEMBLY  (See REMOVAL )
  17. REMOVE CONSOLE BOX FRONT  (See REMOVAL )
  18. REMOVE CONSOLE BOX DUCT NO.1
  19. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY  (SeeREMOVAL )
  20. REMOVE SHIFT & SELECT LEVER SUPPORT
    1. Remove the 4 bolts and shift & select lever support from the body.
      Fig 1: Locating Shift And Lever Support Bolts
      G05001737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO. 4
    1. Release the parking brake.
    2. Hold the nut on the parking brake cable assembly No.1 using a wrench. Loosen and disconnect the turnbuckle of the parking brake cable assembly No. 4 from the parking brake cable assembly No.1 using a wrench.
      Fig 2: Locating Turnbuckle Of Parking Brake Cable Assembly
      G05001738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the boot as shown in the illustration.
      Fig 3: Sliding Boot
      G05001739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the parking brake cable assembly No. 4 from the parking brake equalizer as shown in the illustration.
      Fig 4: Removing Parking Brake Cable Assembly
      G05001740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Remove the clip and separate the parking brake cable assembly No.1 from the cable support bracket.

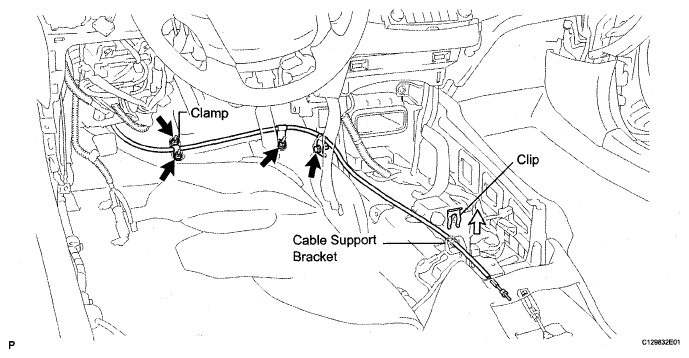

      Fig 5: Identifying Clip And Parking Brake Cable Assembly Support Bracket
      G05001741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 3 nuts and clamp, and separate the parking brake cable assembly No.1 from the body.
    3. Disconnect the connector.
    4. Remove the bolt, 2 nuts and parking brake control pedal assembly from the body.
      Fig 6: Locating Parking Brake Control Pedal Assembly Bolt And Nuts From Body
      G05001742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
