Brake Pedal: Removal
- DISCONNECT BATTERY NEGATIVE TERMINAL (See REMOVAL
)
- REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See step 2 under REMOVAL
)
- REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See step 2 under REMOVAL
)
- REMOVE COWL TOP VENTILATOR LOUVER (See step 3 under REMOVAL
)
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See step 4 under REMOVAL
)
- REMOVE COWL TOP PANEL OUTER (See step 5 under REMOVAL )
- DRAIN BRAKE FLUID
- REMOVE AIR CLEANER ASSEMBLY
- REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY (See step 3 under REMOVAL )
- DISCONNECT VACUUM HOSE ASSEMBLY (See step 9 under REMOVAL )
- REMOVE FRONT BRAKE TUBE NO.5 (See step 10 under REMOVAL )
- REMOVE FRONT DOOR SCUFF PLATE (See step 18 under REMOVAL
)
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY (See step 20 under REMOVAL
)
- REMOVE INSTRUMENT SIDE PANEL (See step 38 under REMOVAL
)
- REMOVE INSTRUMENT PANEL FINISH LOWER PANEL (See step 28 under REMOVAL
)
- REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
- REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (See step 9 under REMOVAL
)
- REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See step 10 under REMOVAL
)
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See step 15 under REMOVAL
)
- REMOVE COMBINATION METER ASSEMBLY (See step 8 under REMOVAL
)
- REMOVE PUSH ROD PIN (See step 17 under REMOVAL )
- REMOVE BRAKE BOOSTER ASSEMBLY (See step 18 under REMOVAL )
- REMOVE BRAKE BOOSTER GASKET
- REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- REMOVE BRAKE PEDAL RETURN SPRING (See step 16 under REMOVAL )
- REMOVE BRAKE PEDAL SUPPORT SUB-ASSEMBLY

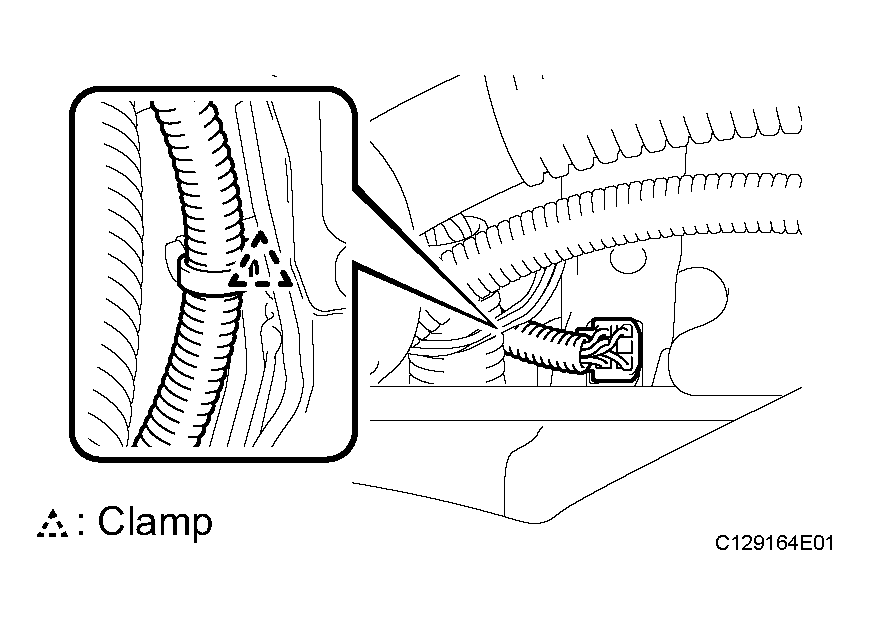

- Disconnect the stop light switch connector and wire harness clamp.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

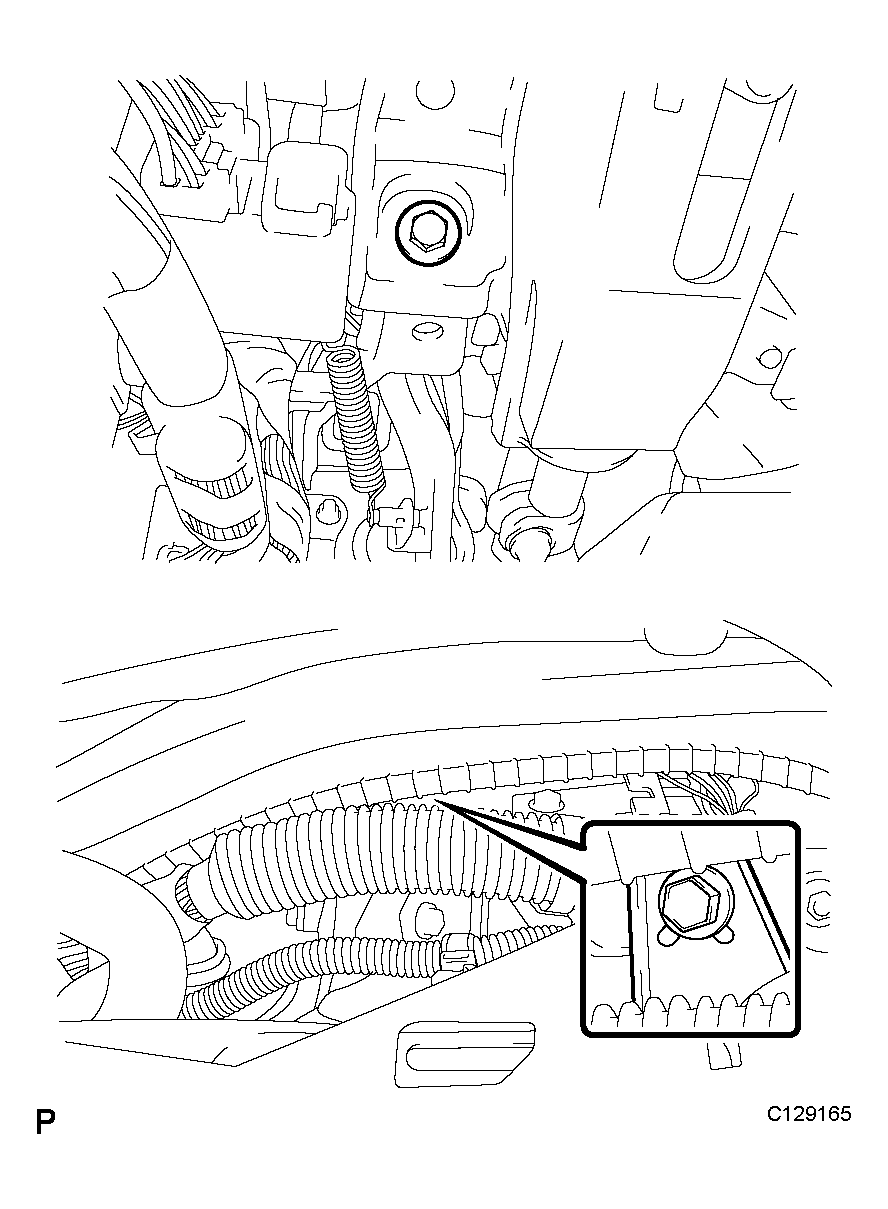

- Remove the 2 bolts and brake pedal support subassembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
