Brake Master Cylinder: Removal

  1. DRAIN BRAKE FLUID
    NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
  2. REMOVE AIR CLEANER ASSEMBLY
  3. REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY
    1. Disconnect the level warning switch connector.
    2. Using SST, disconnect the 6 brake tubes from the brake master w/ plate cylinder sub-assembly.

      SST 09023-00101

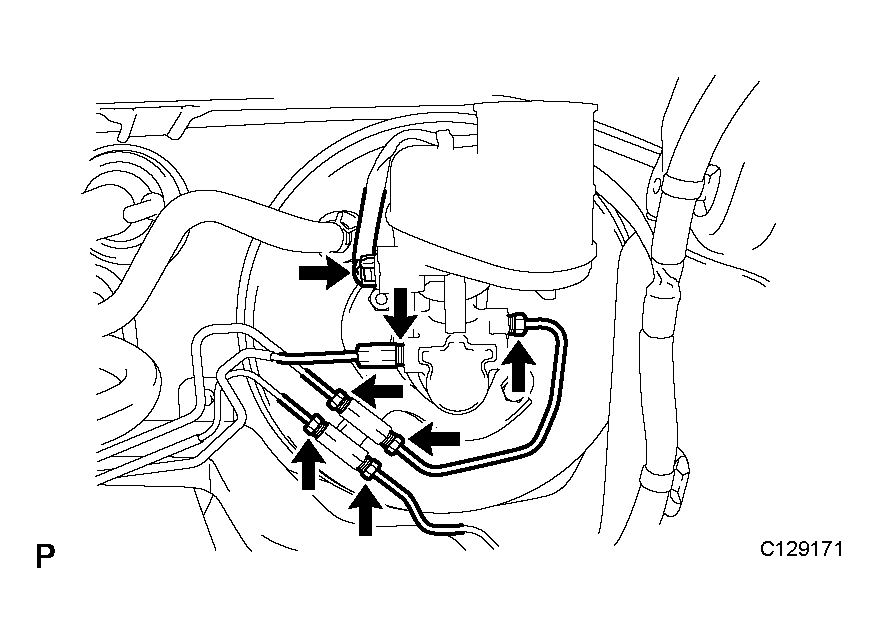

      Fig 1: Disconnecting Brake Tubes From Brake Master W/ Plate Cylinder Sub-Assembly
      G04375534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts, and pull out the 2-way and brake master w/ plate cylinder sub-assembly.

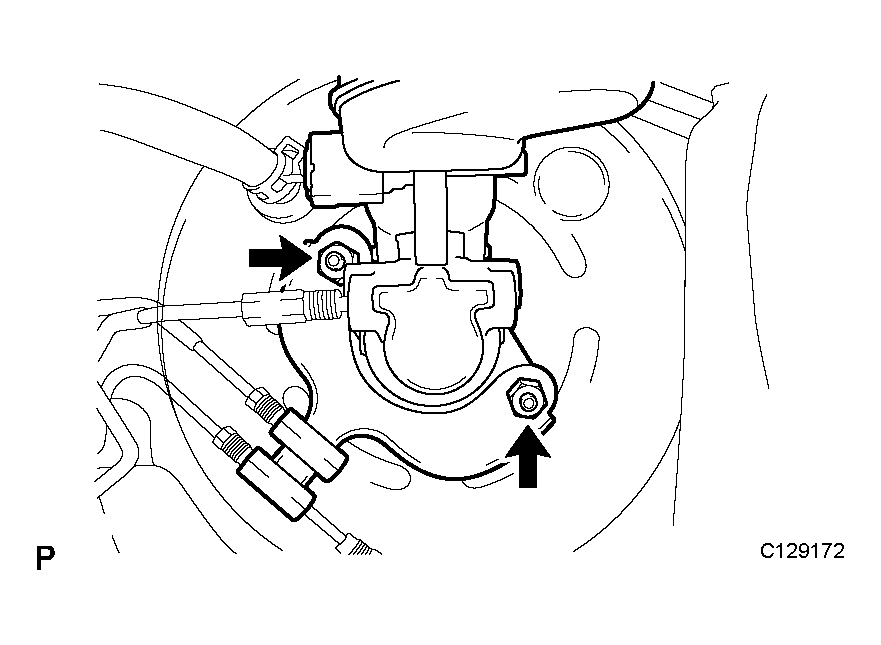

      Fig 2: Removing Nuts
      G04375535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
