Brake Booster: Removal

REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See step 1 under REMOVAL )
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See step 2 under REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER (See step 3 under REMOVAL )
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See step 4 under REMOVAL )
REMOVE COWL TOP PANEL OUTER
1. Remove the 4 bolts, 2 nuts and cowl top panel outer from the body.
DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
REMOVE AIR CLEANER ASSEMBLY
REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY
SST 09023-00101

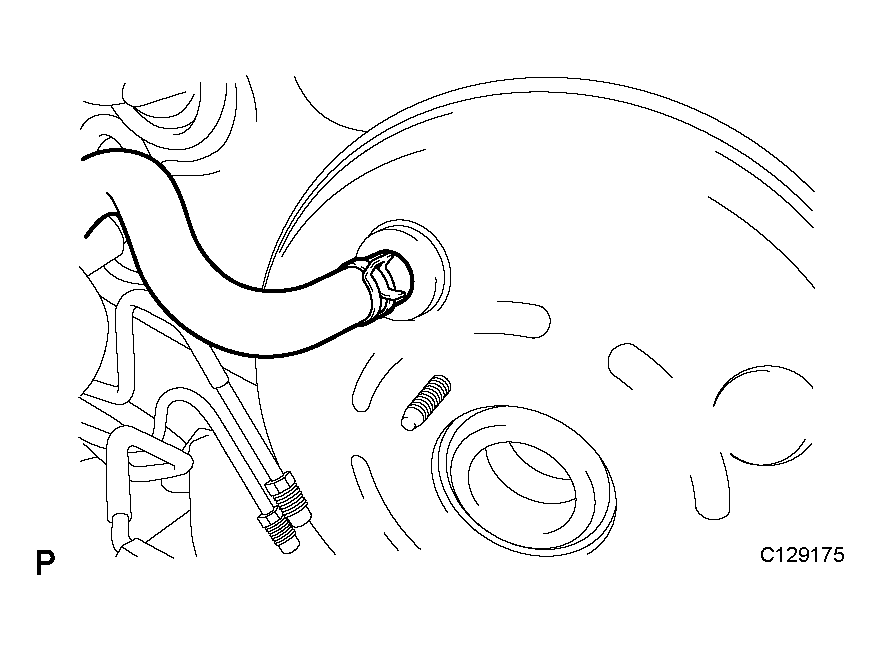

DISCONNECT VACUUM HOSE ASSEMBLY
1. Slide the clip and disconnect the vacuum hose from the brake booster assembly.

  Fig 1: Disconnecting Vacuum Hose From Brake Booster Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

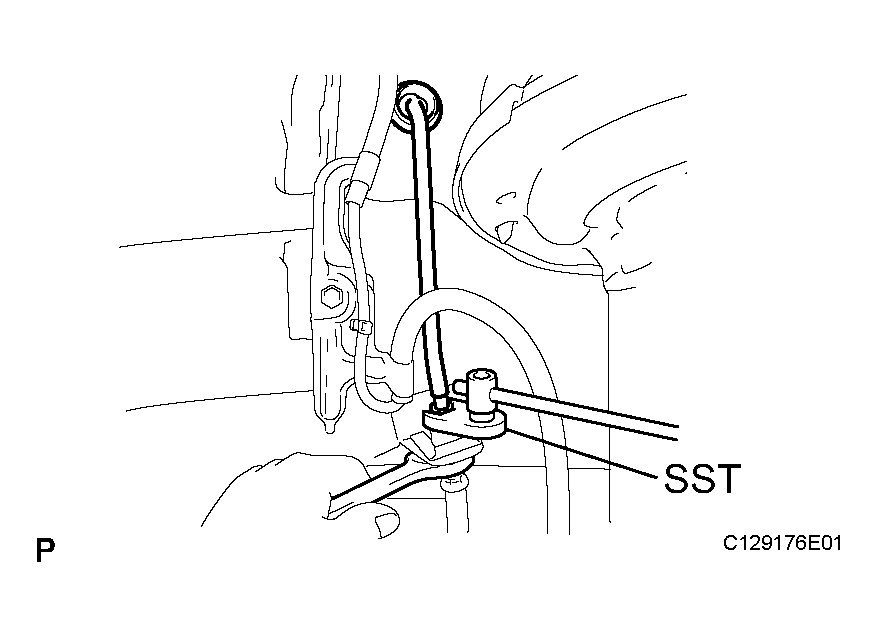

REMOVE FRONT BRAKE TUBE NO.5
1. Using SST, remove front brake tube No.5.

  Fig 2: Removing Front Brake Tube No.5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023-00101
REMOVE FRONT DOOR SCUFF PLATE (See step 18 under REMOVAL )
REMOVE COWL SIDE TRIM SUB-ASSEMBLY (See step 20 under REMOVAL )
REMOVE INSTRUMENT SIDE PANEL (See step 38 under REMOVAL )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL (See step 28 under REMOVAL )
REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1

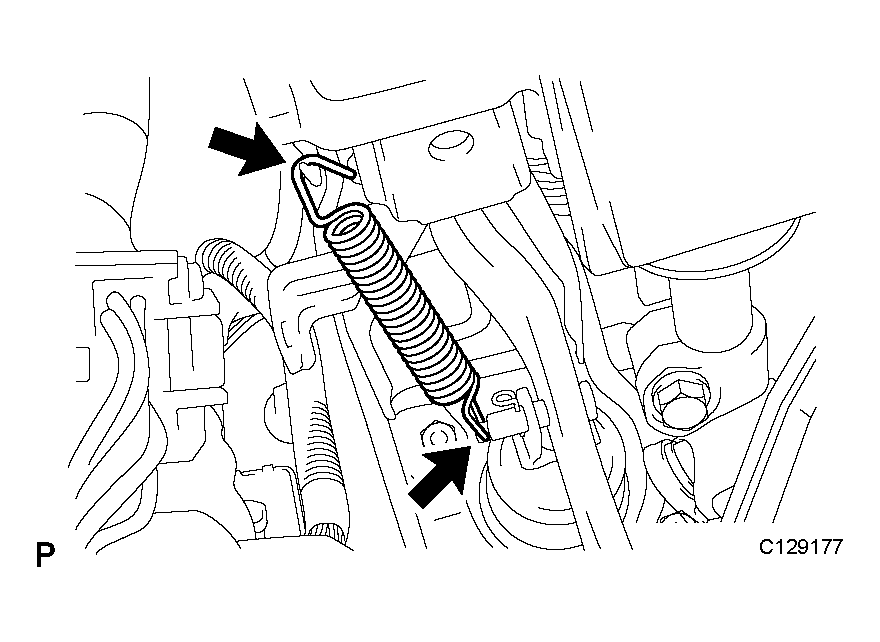

REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the brake pedal return spring.

  Fig 3: Removing Brake Pedal Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

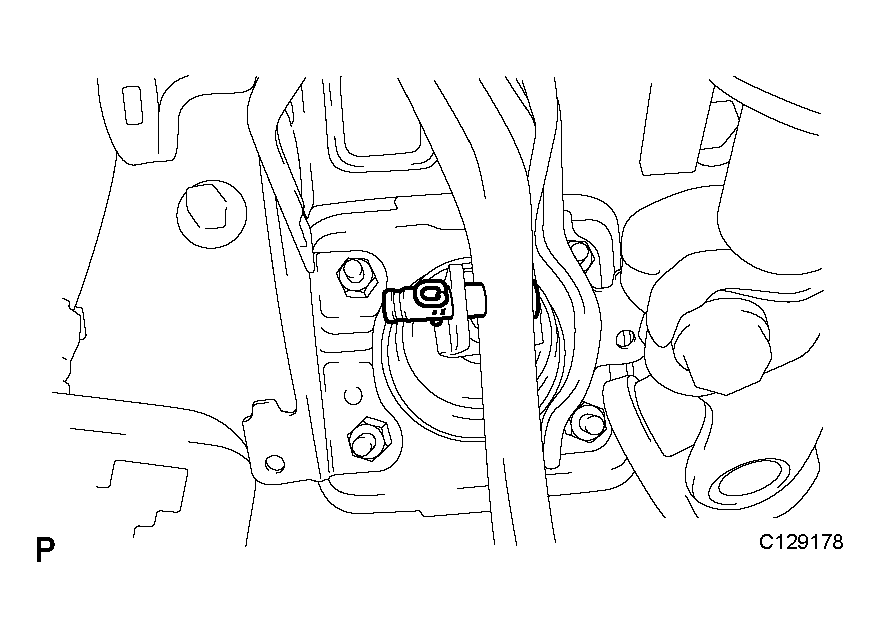

REMOVE PUSH ROD PIN
1. Remove the clip and push rod pin.

  Fig 4: Removing Clip And Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

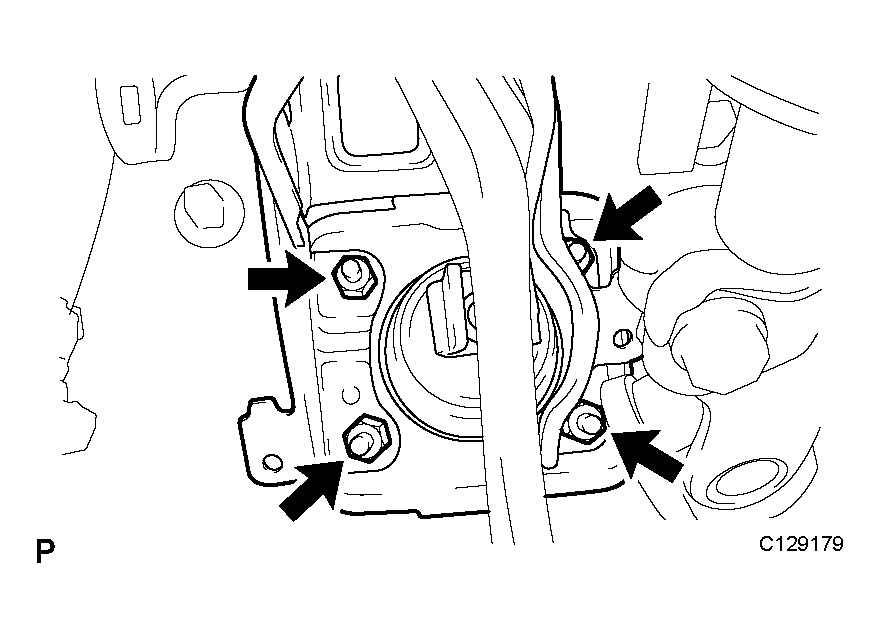

REMOVE BRAKE BOOSTER ASSEMBLY
1. Remove the 4 nuts.

  Fig 5: Removing Brake Booster Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the brake booster assembly.
  NOTE: Do not damage the brake tubes and the wire harness.
REMOVE BRAKE BOOSTER GASKET
