Steering Pad: Removal

PRECAUTION
CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing (See PRECAUTION ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE STEERING WHEEL COVER LOWER NO.3
1. Using a screwdriver, remove the steering wheel cover lower No.3.
  HINT:

  Tape up the screwdriver tip before use.

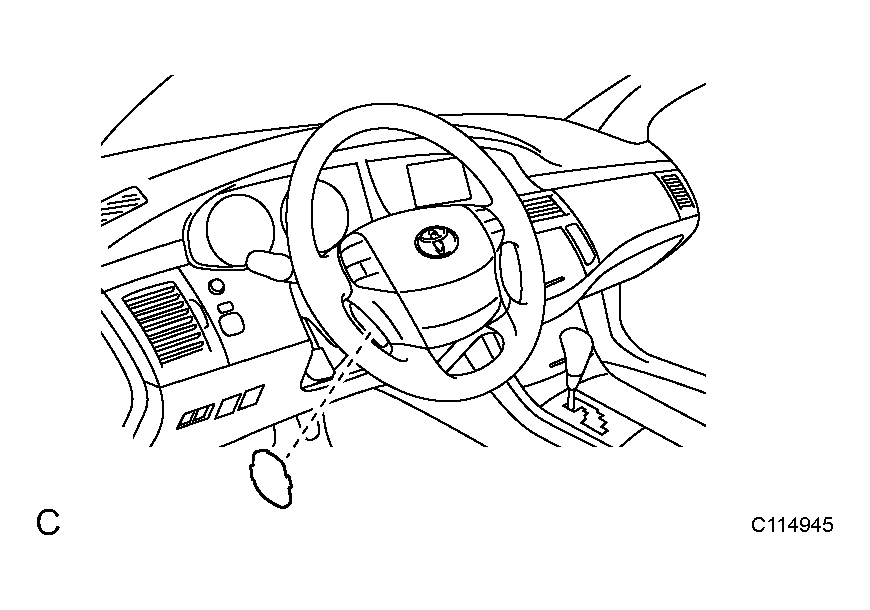

  Fig 1: Removing Steering Wheel Cover Lower No.3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING WHEEL COVER LOWER NO.2
1. Using a screwdriver, remove the steering wheel cover lower No.2.
  HINT:

  Tape up the screwdriver tip before use.

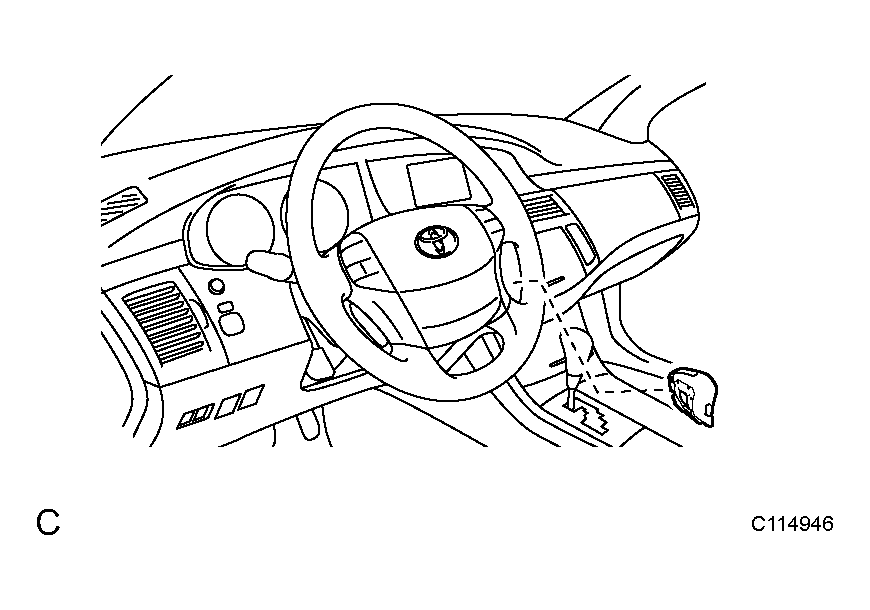

  Fig 2: Removing Steering Wheel Cover Lower No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD
1. Using a "torx" socket wrench (T30), loosen the 2 "torx" screws until the groove along the screw circumference catches on the screw case.

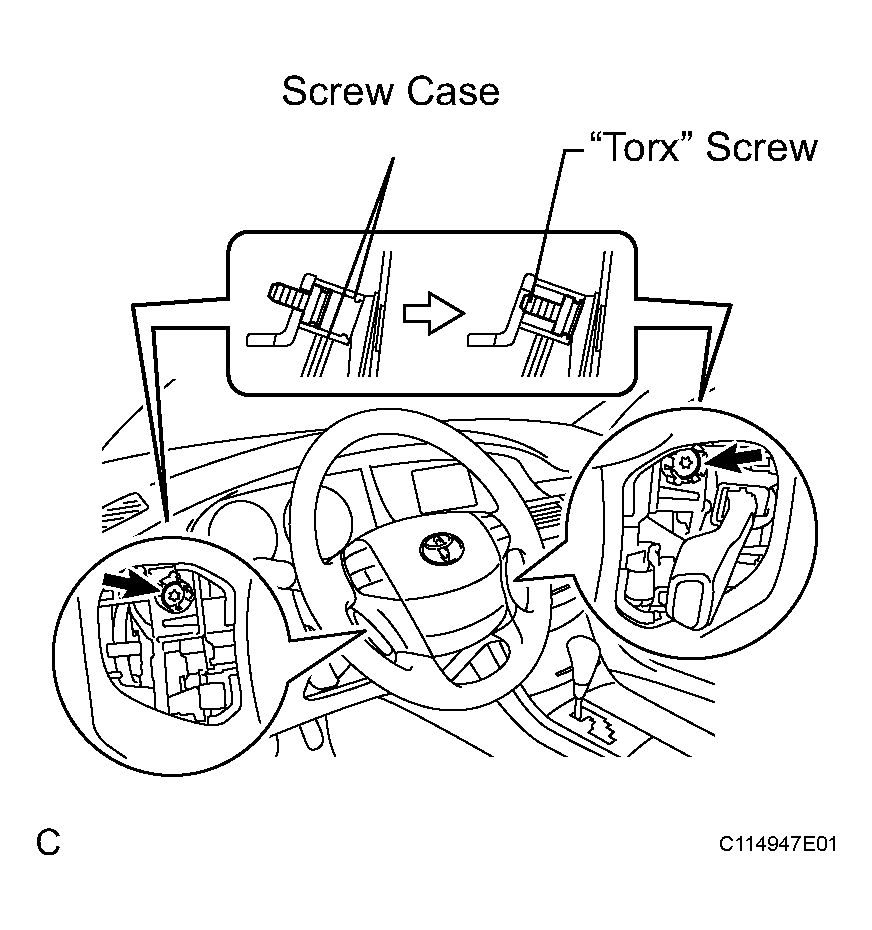

  Fig 3: Loosening 2 "Torx" Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand as shown in Fig 4.

  Fig 4: Pulling Out Steering Pad From Steering Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the horn connector.
4. Disconnect the 2 connectors from the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the steering pad.
