Parking Brake Control Pedal ASSY: Overhaul

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE PRECAUTION )
REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (SEE OVERHAUL )
REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (SEE OVERHAUL )
REMOVE FRONT SEAT TRACK COVER LH REAR OUTER (SEE OVERHAUL )
REMOVE REAR SEAT TRACK BRACKET COVER INNER LH (SEE OVERHAUL )
REMOVE FRONT LH SEAT ASSY (SEE OVERHAUL )
REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT )
REMOVE COWL SIDE TRIM SUB-ASSY LH (SEE REPLACEMENT )
REMOVE INSTRUMENT SIDE PANEL LH (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE REPLACEMENT )
REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE REPLACEMENT )
REMOVE POSITION INDICATOR HOUSING ASSY (SEE REPLACEMENT )
REMOVE CONSOLE BOX UPPER
REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT )
REMOVE CONSOLE BOX ASSY (SEE REPLACEMENT )
REMOVE CONSOLE BOX FRONT (SEE REPLACEMENT )
REMOVE CONSOLE BOX DUCT NO.1
REMOVE TRANSMISSION FLOOR SHIFT ASSY (SEE OVERHAUL )
REMOVE SHIFT & SELECT LEVER SUPPORT
1. Remove the 4 bolts and shift & select lever support from the body.

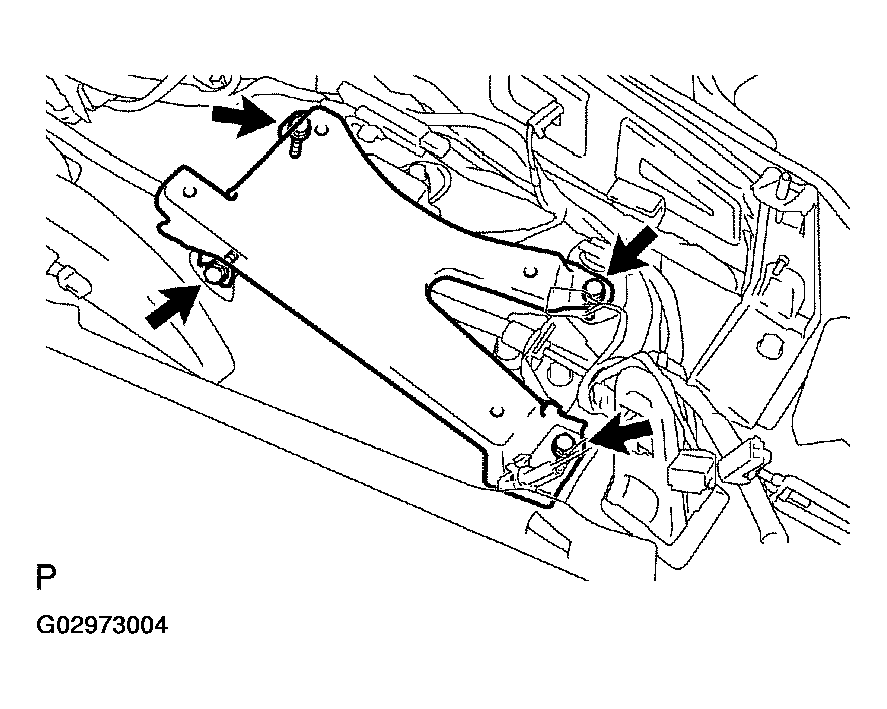

  Fig 1: Removing Shift & Select Lever Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT PARKING BRAKE CABLE ASSY NO.4
1. Release the parking brake.
2. Hold the nut on the parking brake cable assy No.1 using a wrench. Loosen and disconnect the turnbuckle of the parking brake cable assy No.4 from the parking brake cable assy No.1 using a wrench.

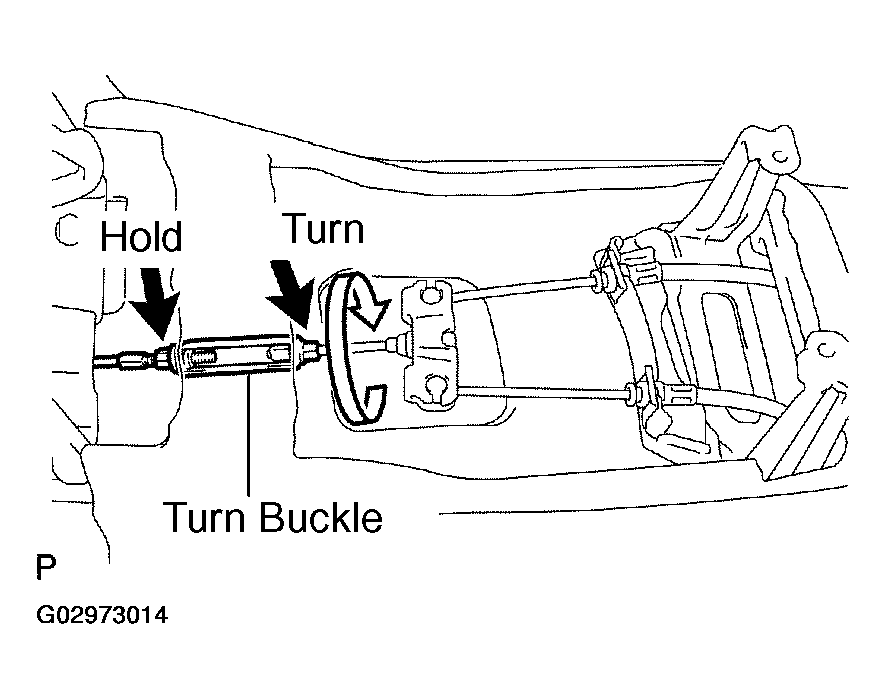

  Fig 2: Disconnecting Parking Brake Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE CONTROL PEDAL ASSY
1. Remove the clip and separate the parking brake cable assy No.1 from the cable support bracket.

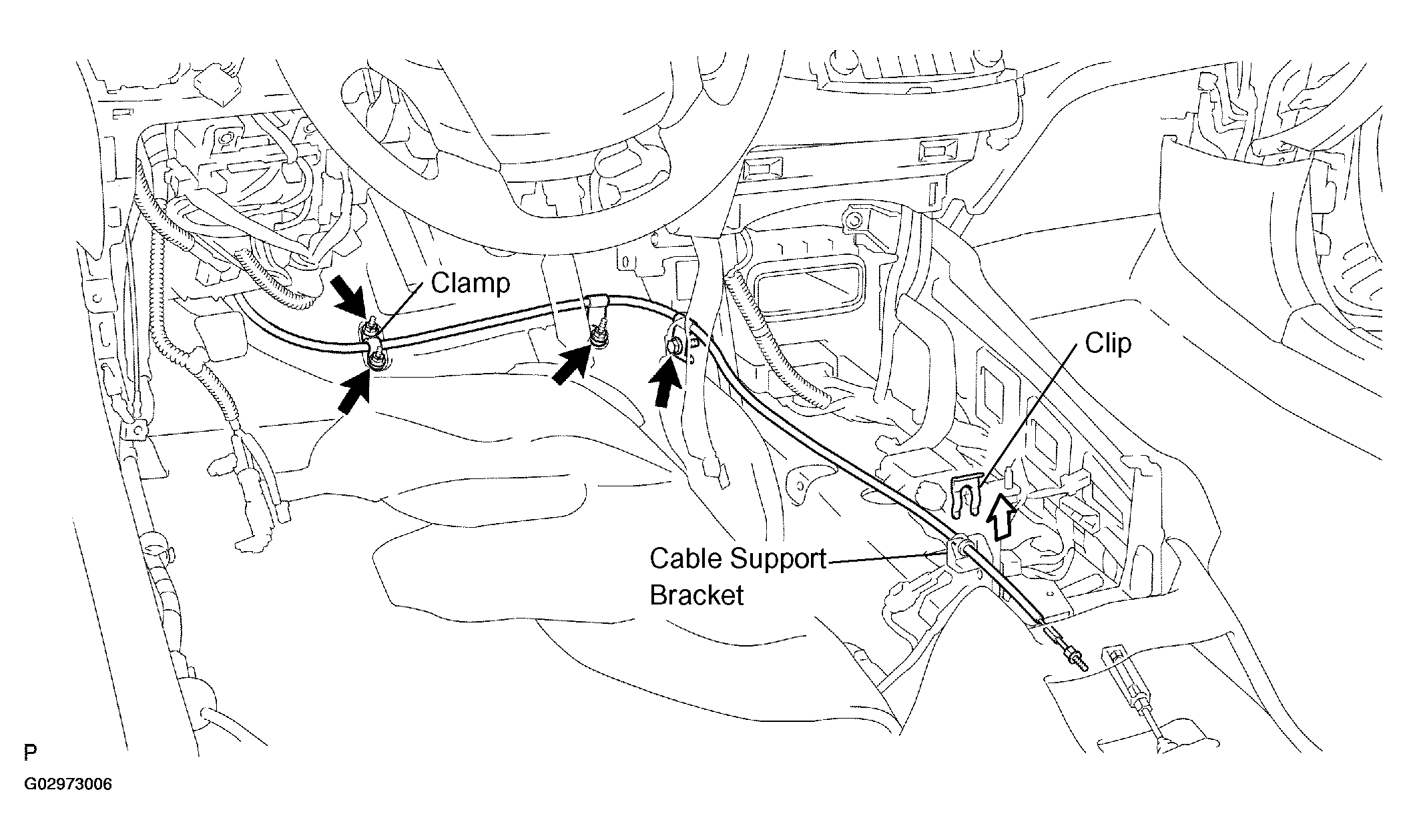

  Fig 3: Separating Parking Brake Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, 3 nuts and clamp, and separate the parking brake cable assy No.1 from the body.
3. Disconnect the connector.
4. Remove the bolt, 2 nuts and parking brake control pedal assy from the body.

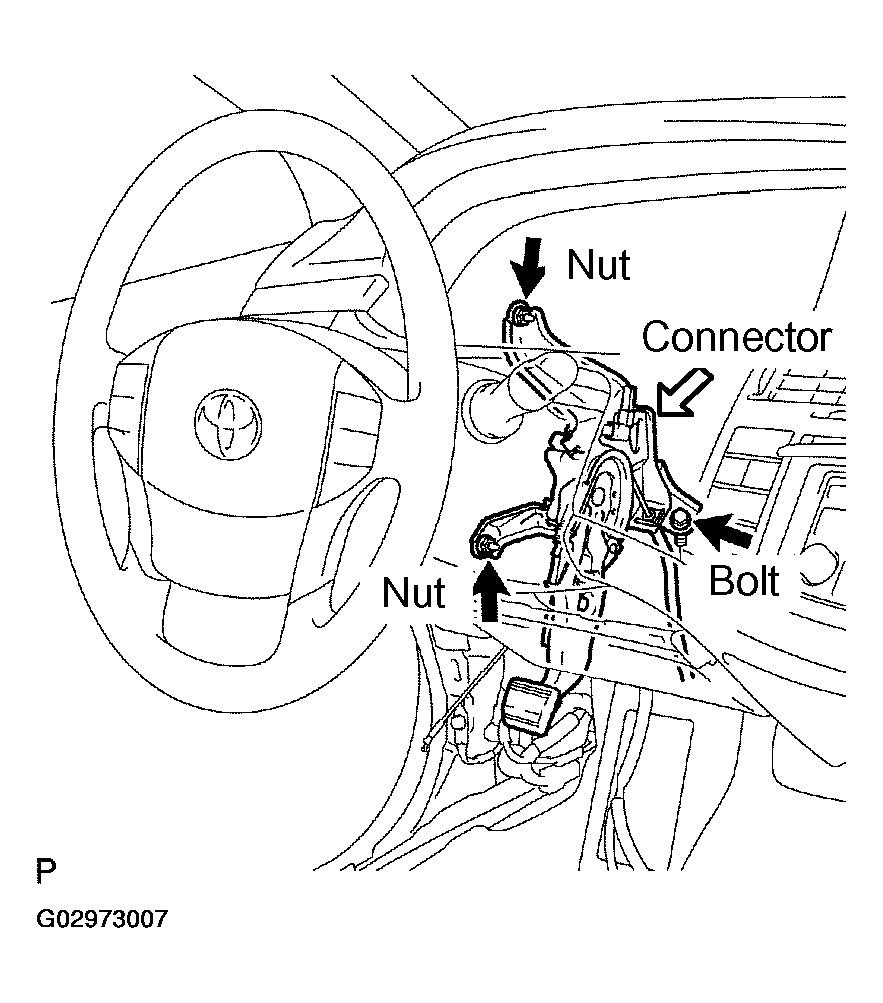

  Fig 4: Removing Bolt, Nuts And Parking Brake Control Pedal Assy From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING PEDAL PAD
1. Disengage the claw and remove the parking pedal pad from the parking brake control pedal assy.

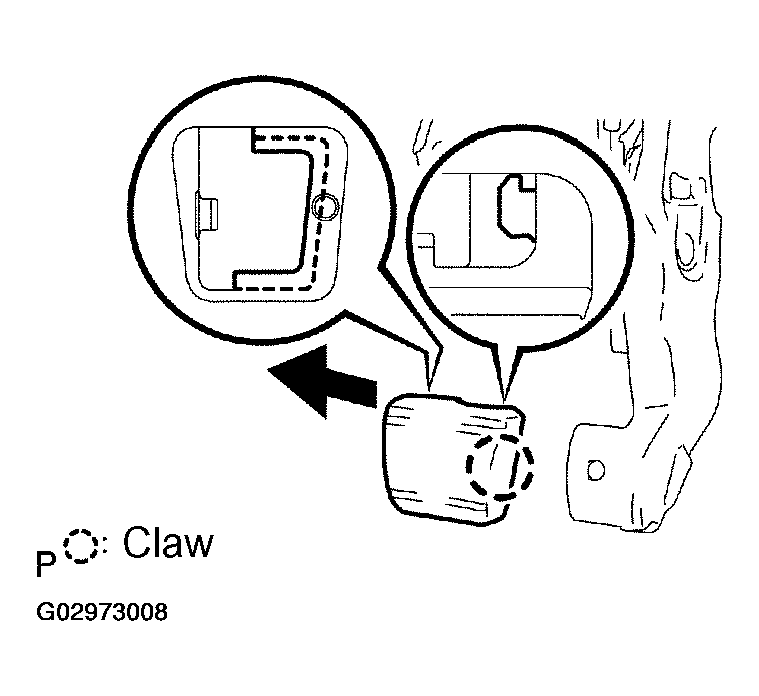

  Fig 5: Disengaging Claw And Removing Parking Pedal Pad From Parking Brake Control Pedal Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SWITCH ASSY
1. Remove the screw and parking brake switch assy from the parking brake control pedal assy.

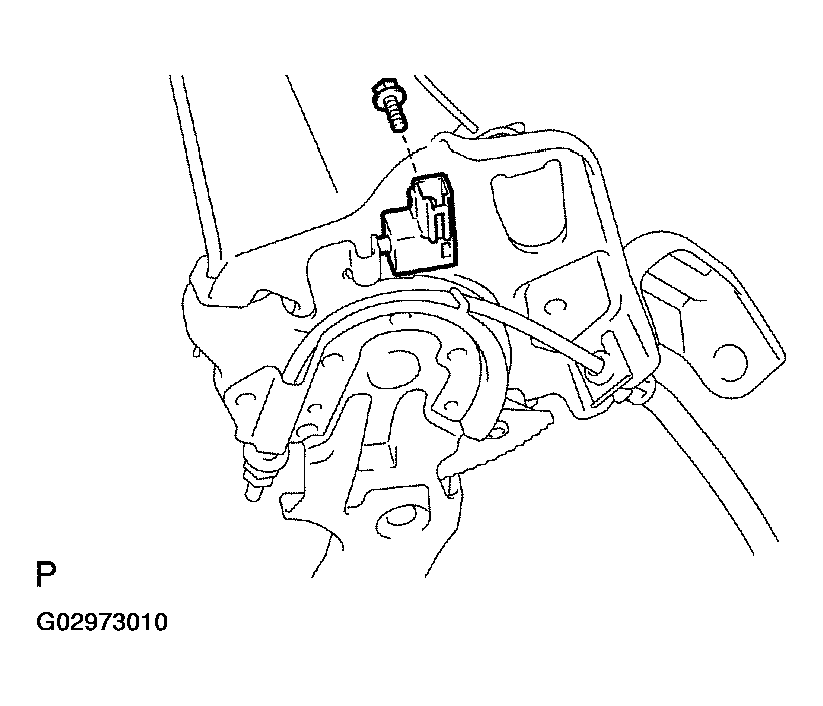

  Fig 6: Removing Screw And Parking Brake Switch Assy From Parking Brake Control Pedal Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE CABLE ASSY NO.1 (SEE REPLACEMENT )
INSTALL PARKING BRAKE CABLE ASSY NO.1 (SEE REPLACEMENT )
INSTALL PARKING BRAKE SWITCH ASSY
1. Install the parking brake switch assy with the screw.
  Torque: 0.9 N.m (9 kgf.cm, 7.8 in. lbf)

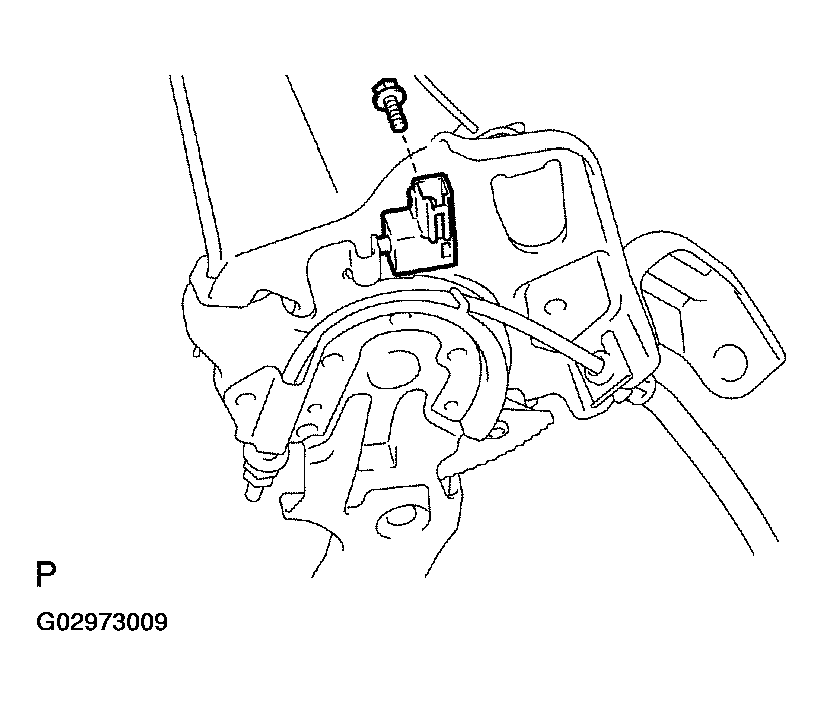

  Fig 7: Installing Parking Brake Switch Assy With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING PEDAL PAD
1. Engage the claw and install the parking pedal pad on the parking brake control pedal assy.

  Fig 8: Installing Parking Pedal Pad On Parking Brake Control Pedal Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CONTROL PEDAL ASSY
1. Install the parking brake control pedal assy with the bolt and 2 nuts.
  Torque:

  39 N.m (398 kgf.cm, 29 ft.lbf) (Bolt)

  39 N.m (398 kgf.cm, 29 ft.lbf) (Nut)
2. Connect the connector to the parking brake switch assy.

  Fig 9: Connecting Connector To Parking Brake Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the parking brake cable assy No.1 to the body with the clamp, 3 nuts and bolt.
  Torque:

  13 N.m (128 kgf.cm, 9 ft.lbf) (Bolt)

  5.4 N.m (55 kgf.cm, 48 in. lbf) (Nut)

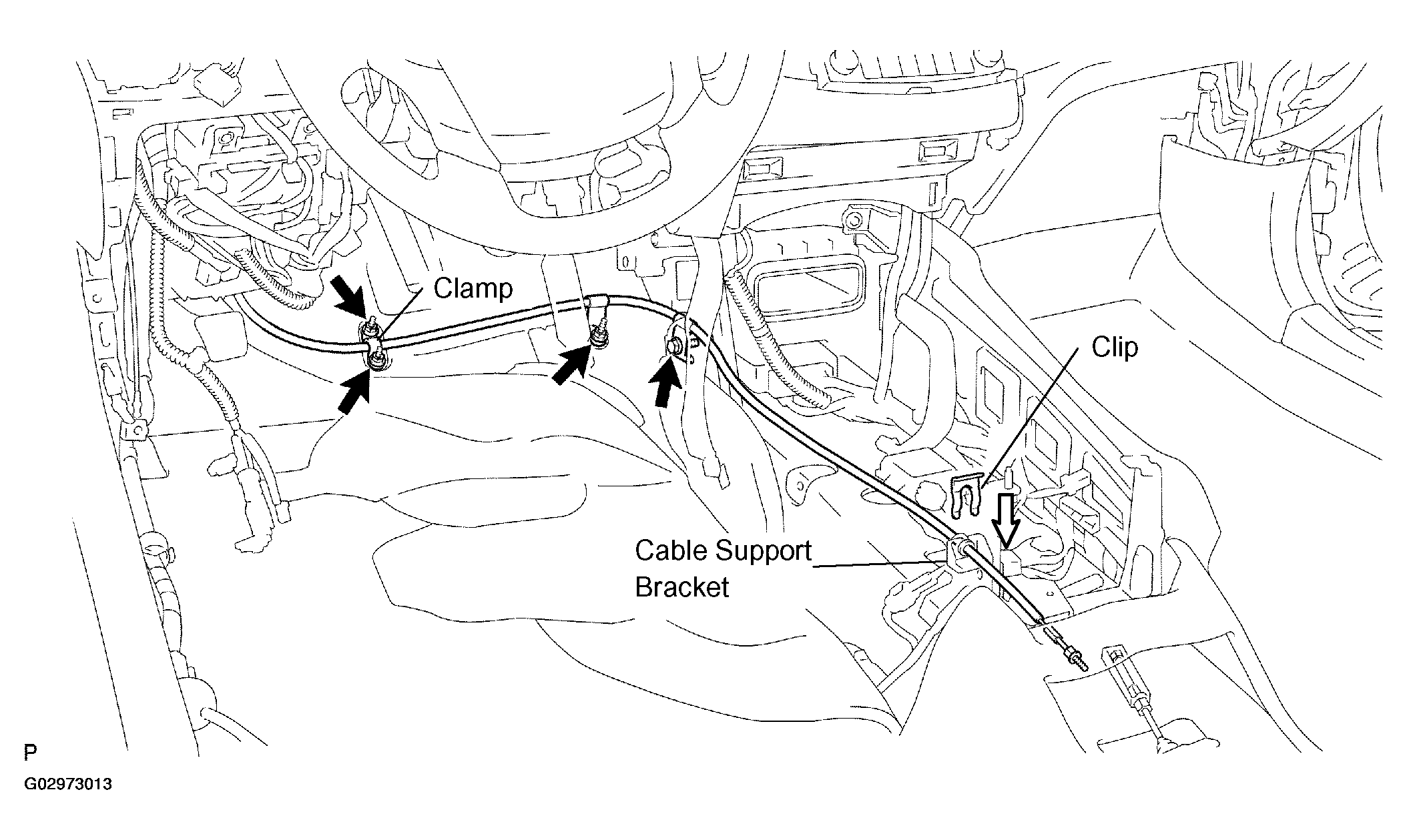

  Fig 10: Installing Parking Brake Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the parking brake cable assy No.1 to the cable support bracket with the clip.
INSTALL PARKING BRAKE CABLE ASSY NO.4
1. Hold the nut on the parking brake cable assy No.1 using a wrench. Tighten the turn buckle of the parking brake cable assy No.4 using a wrench.
  Torque: 5.4 N.m (55 kgf.cm, 48 in. lbf)

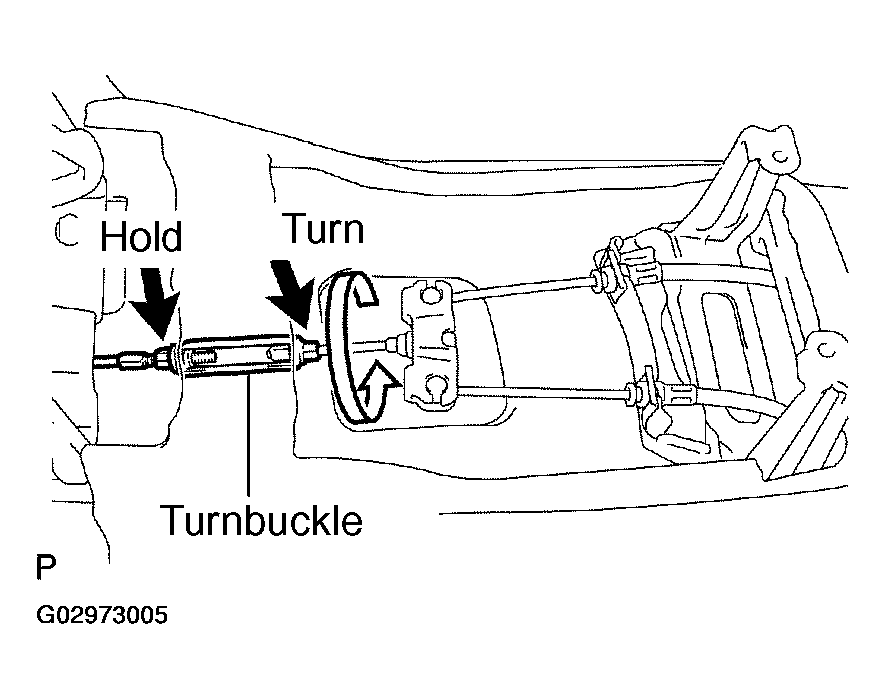

  Fig 11: Installing Parking Brake Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT & SELECT LEVER SUPPORT
1. Install the shift & select lever support to the body with the 4 bolts.

  Fig 12: Installing Shift & Select Lever Support To Body With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION FLOOR SHIFT ASSY (SEE OVERHAUL )
INSTALL CONSOLE BOX DUCT NO.1
INSTALL CONSOLE BOX FRONT
INSTALL CONSOLE BOX ASSY
INSTALL CONSOLE PANEL SUB-ASSY UPPER
INSTALL CONSOLE BOX UPPER
INSTALL POSITION INDICATOR HOUSING ASSY
INSTALL SHIFT LEVER KNOB SUB-ASSY
INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE REPLACEMENT )
INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
INSTALL INSTRUMENT SIDE PANEL LH
INSTALL COWL SIDE TRIM SUB-ASSY LH
INSTALL FRONT DOOR SCUFF PLATE LH
INSTALL FRONT LH SEAT ASSY (SEE OVERHAUL )
INSTALL REAR SEAT TRACK BRACKET COVER INNER LH
INSTALL FRONT SEAT TRACK COVER LH REAR OUTER
INSTALL SEAT TRACK BRACKET COVER INNER FRONT LH
INSTALL SEAT TRACK BRACKET COVER OUTER FRONT LH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION (SEE INITIALIZATION )
INSPECT SRS WARNING LIGHT
INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT )
