Transmission Floor Shift ASSY (ATM): Overhaul

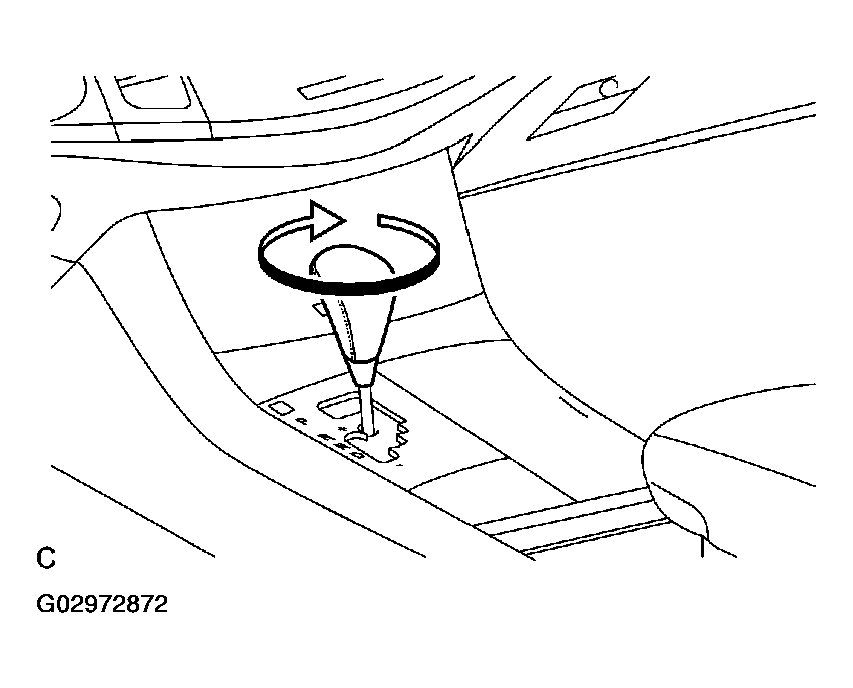

1. Remove the shift lever knob sub-assy.
   Fig 1: Removing Shift Lever Knob Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the position indicator housing assy.

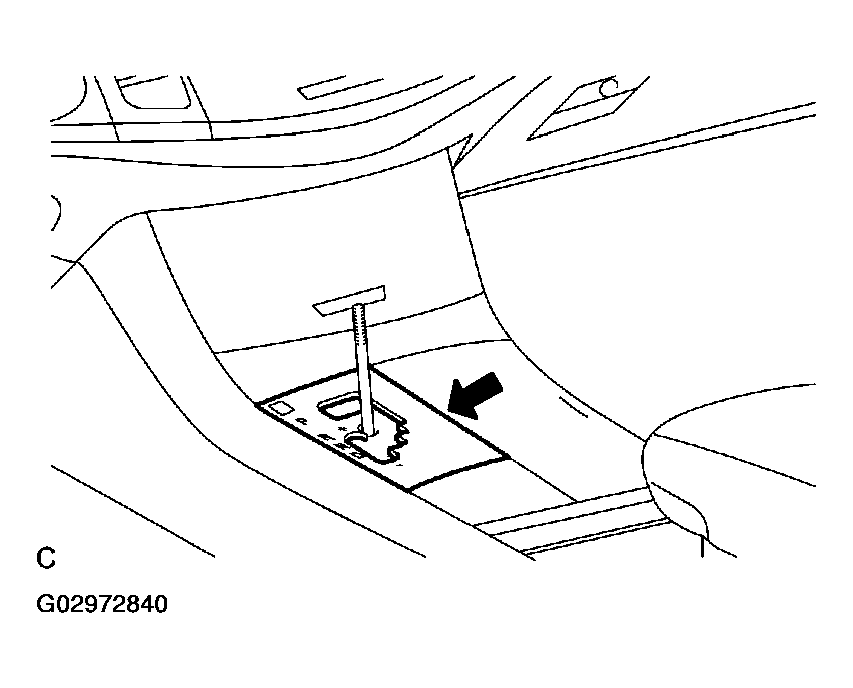

   Fig 2: Removing Position Indicator Housing Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the shift lock release button cover from the position indicator housing assy.

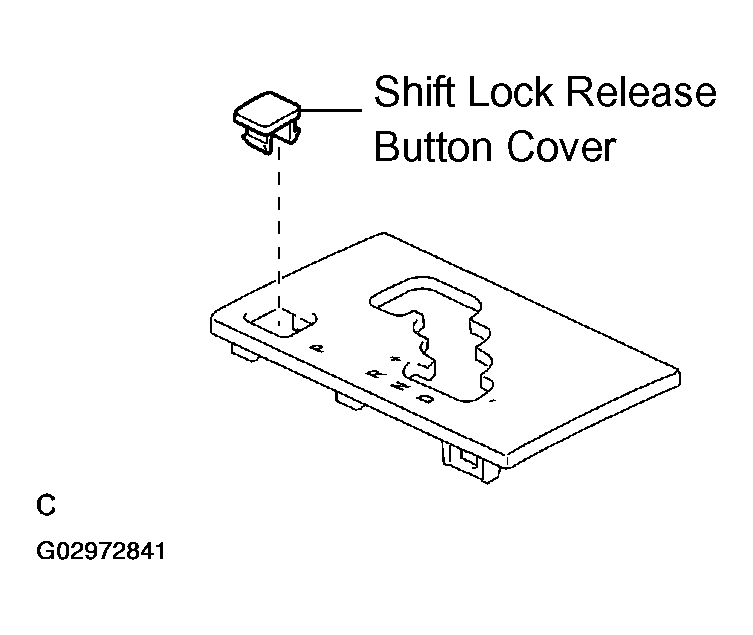

   Fig 3: Removing Shift Lock Release Button Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the transmission control cable assy from the transmission floor shift assy.

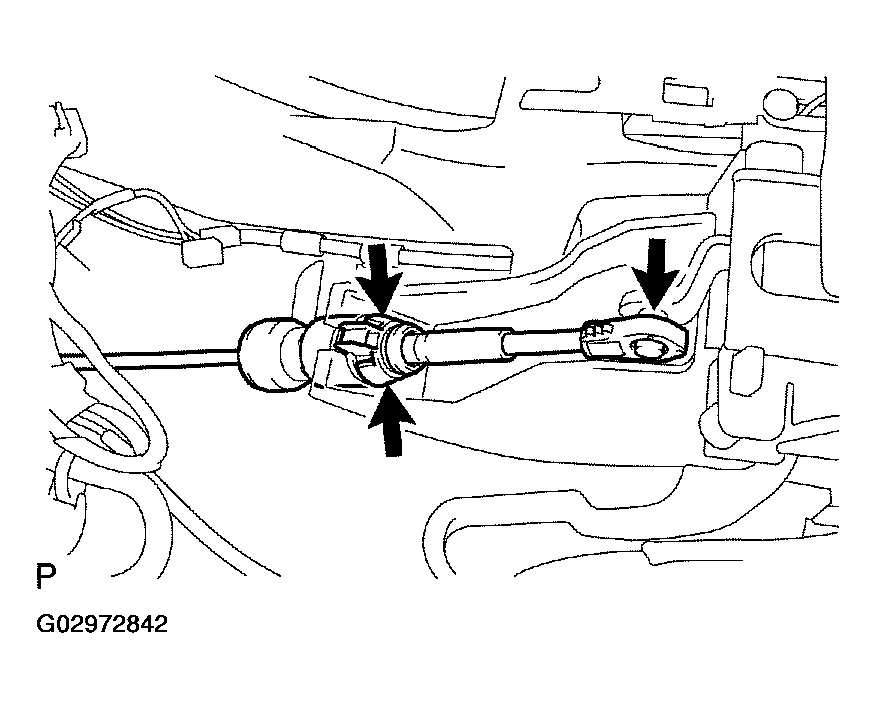

   Fig 4: Disconnecting Transmission Control Cable Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

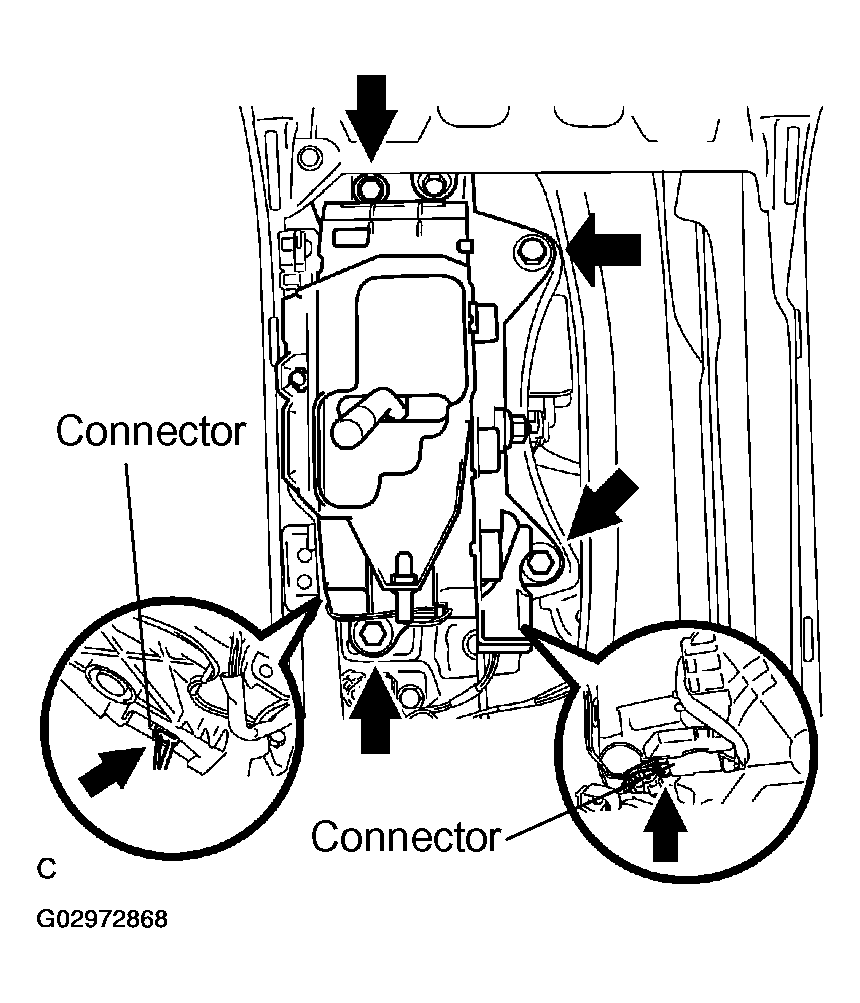

1. Disconnect the 2 connectors and clamp.
2. Remove the 4 bolts and floor shift assy.
   Fig 5: Removing Floor Shift Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the indicator light wire from the floor shift assy as shown in Fig 6 .
   Fig 6: Removing Indicator Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the position indicator bulb from the indicator light wire.
3. Remove the position indicator bulb cap from the position indicator bulb.
4. Separate the transmission control switch connector.
   Fig 7: Separating Transmission Control Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a screwdriver, release the stopper.
   Fig 8: Releasing Stopper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out from the rear.
   Fig 9: Disengaging Locking Lug Of Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the position indicator housing upper.
   NOTE: Be careful not to damage the position indicator housing upper.

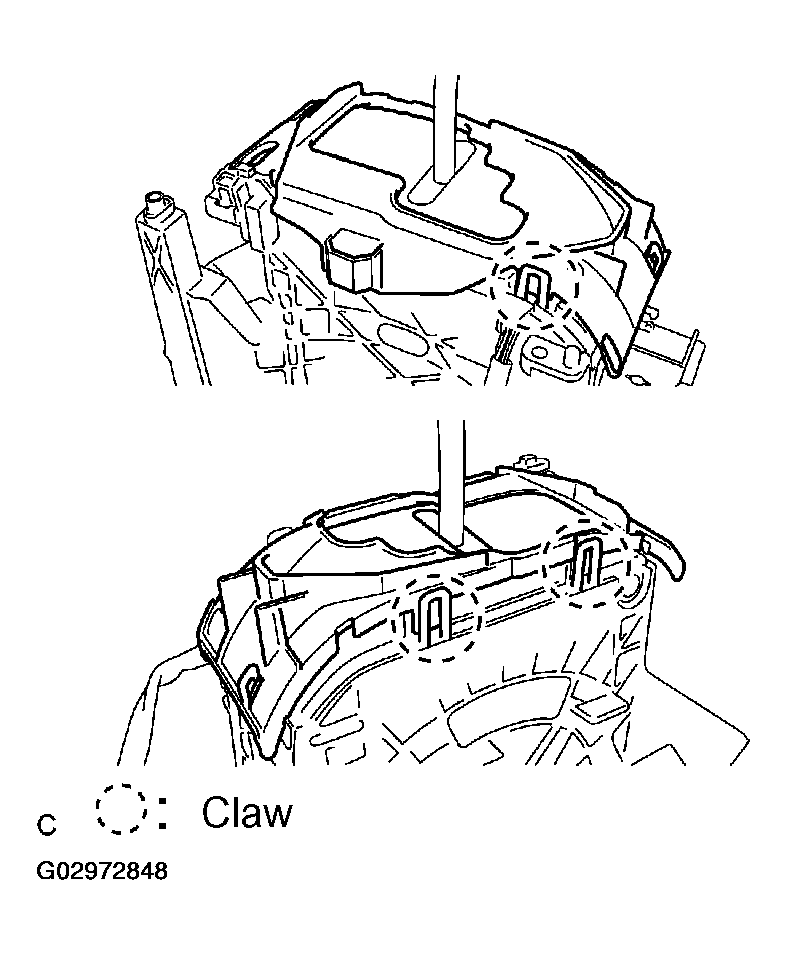

   Fig 10: Removing Position Indicator Housing Upper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the position indicator slide cover from the shift lever guide housing.

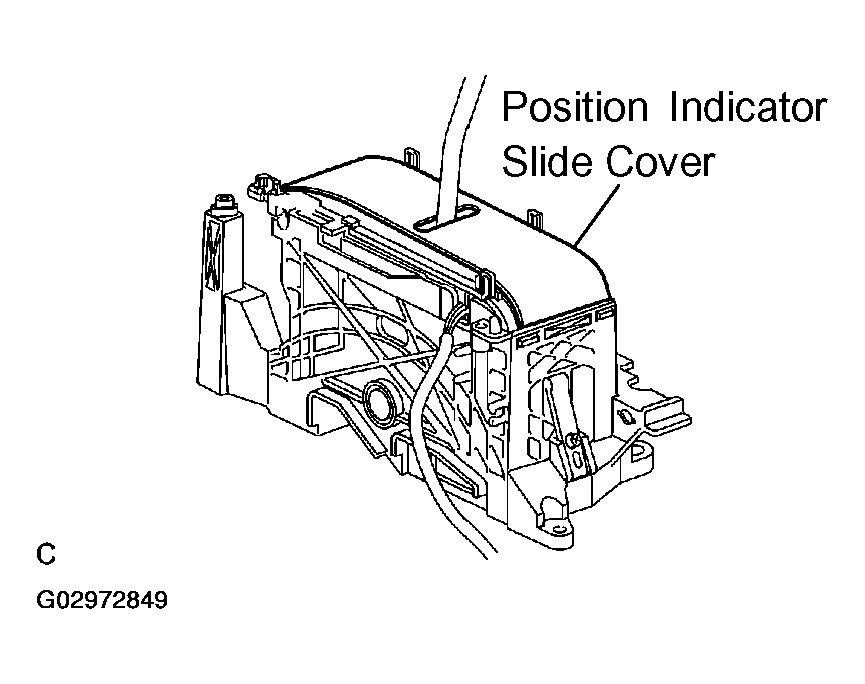

   Fig 11: Removing Position Indicator Slide Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the position indicator slide cover No. 2.
   Fig 12: Removing Position Indicator Slide Cover No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

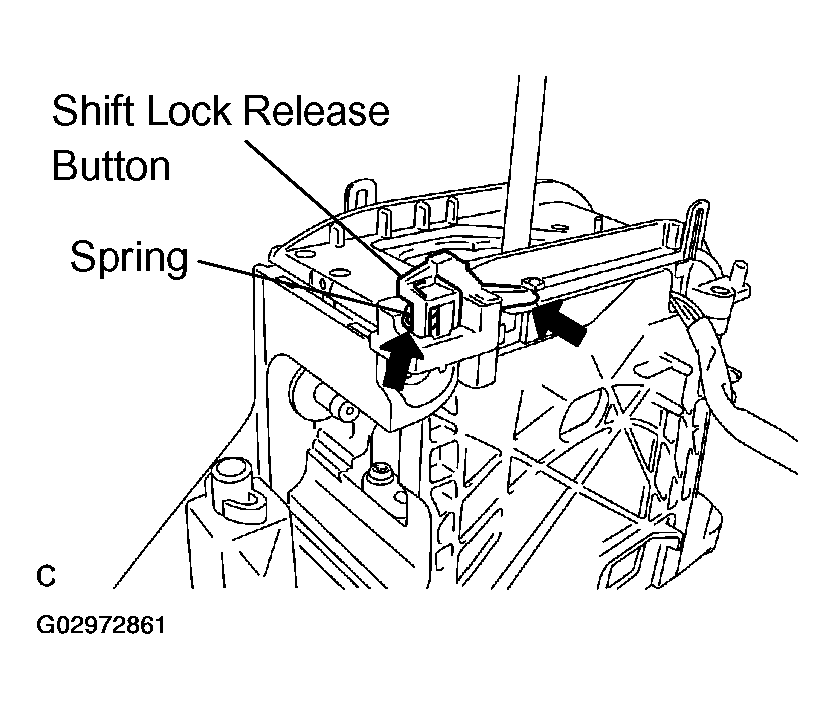

1. Remove the shift lock release button and spring from the floor shift assy.

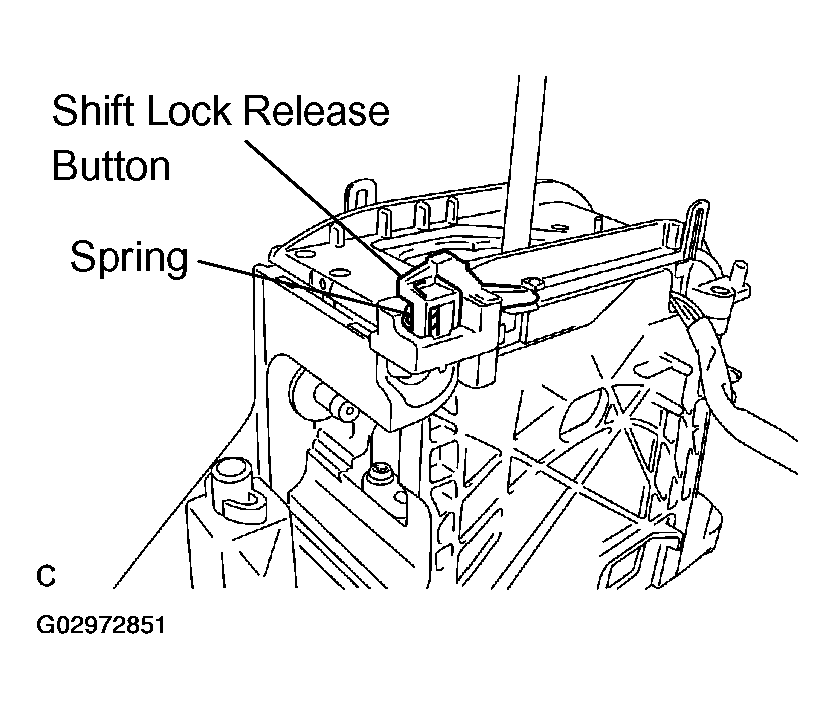

   Fig 13: Removing Shift Lock Release Button And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

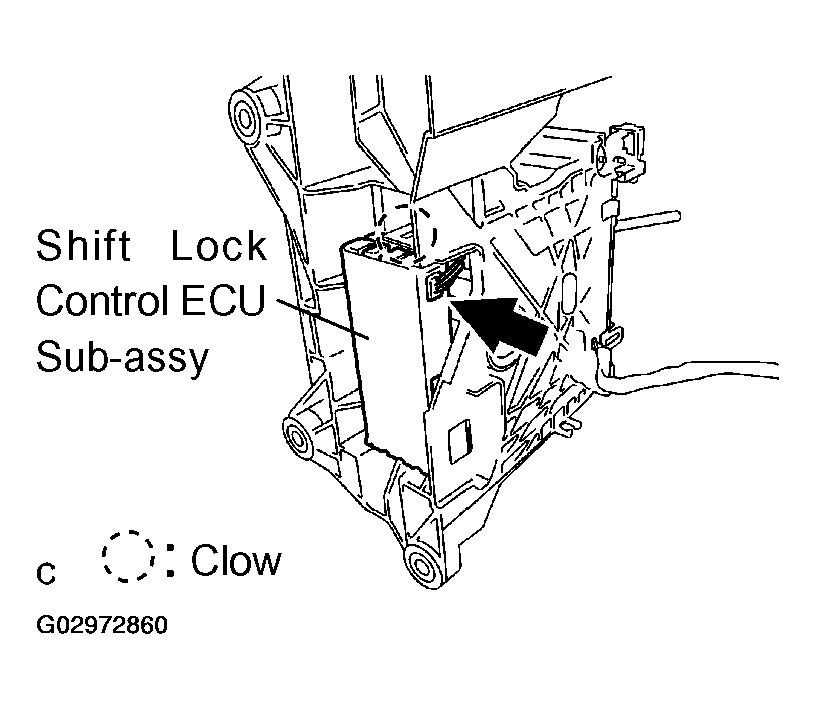

1. Disconnect the connector.
2. Using a screwdriver, remove the shift lock control ECU sub-assy.
   Fig 14: Removing Shift Lock Control ECU Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

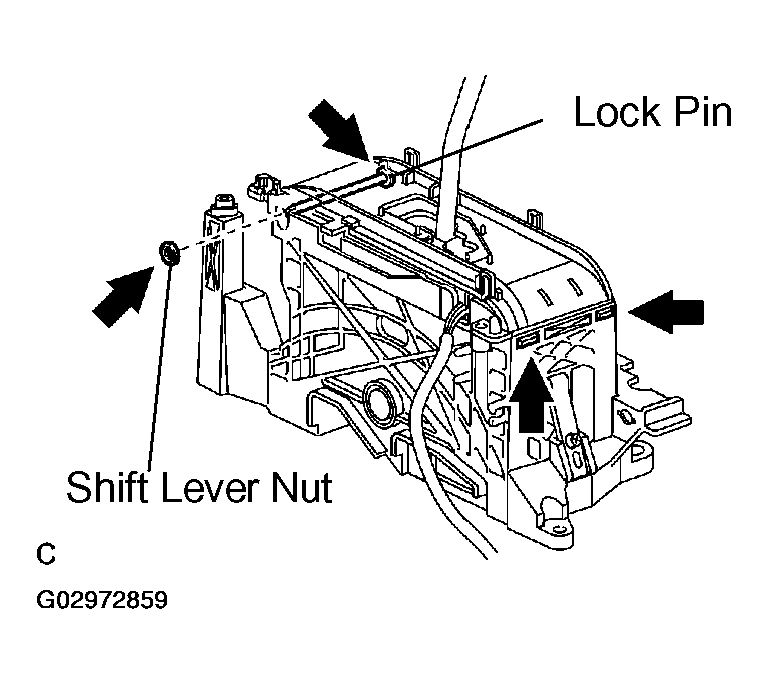

1. Remove the shift lever nut and lock pin from the floor shift assy.
2. Remove the shift lever guide housing from the floor shift assy.
   NOTE: First remove the shift lever nut and lock pin, then disengage the 2 claws.
   Fig 15: Removing Shift Lock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

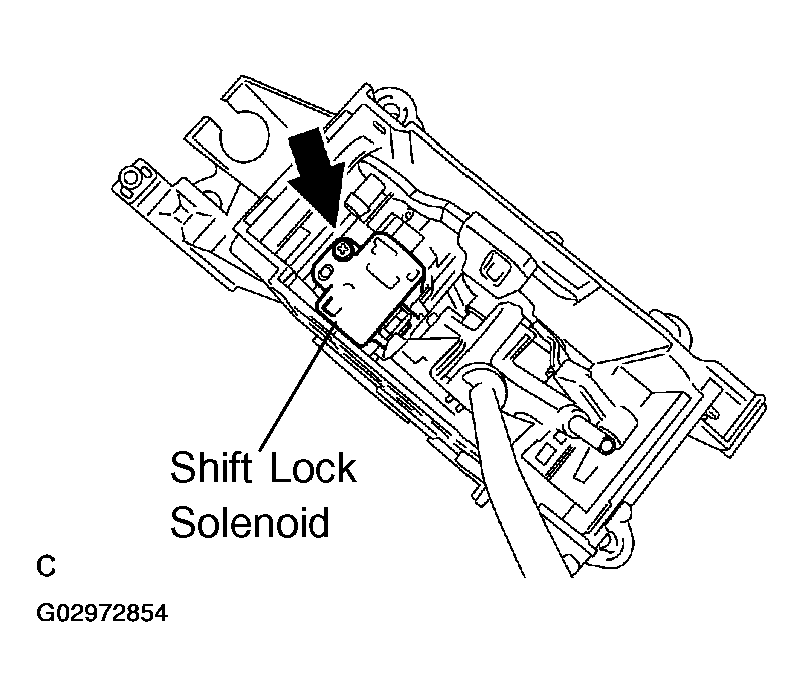

3. Remove the screw and shift lock solenoid.
   Fig 16: Removing Screw And Shift Lock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

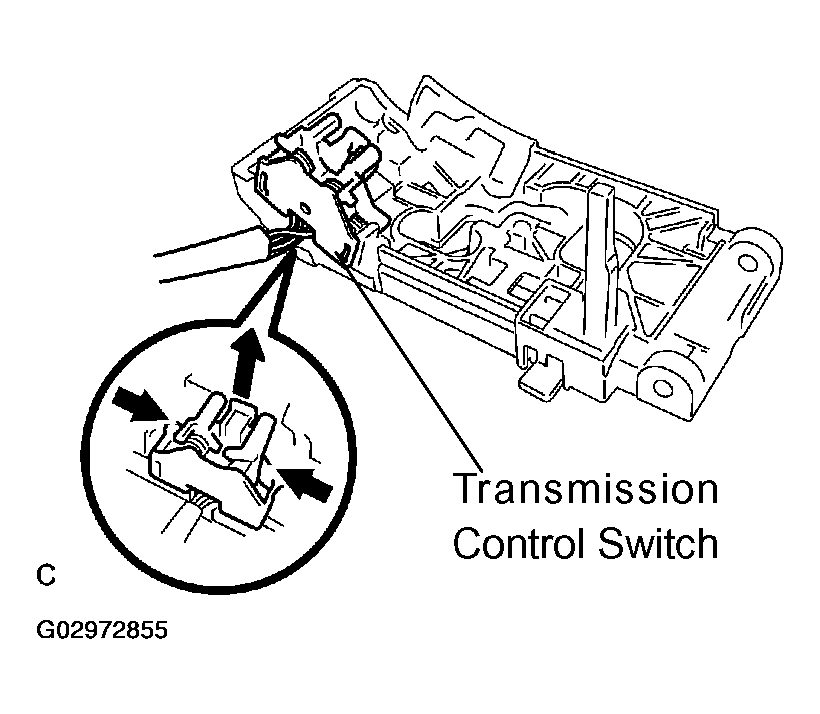

1. Remove the transmission control switch from the shift lever guide housing.

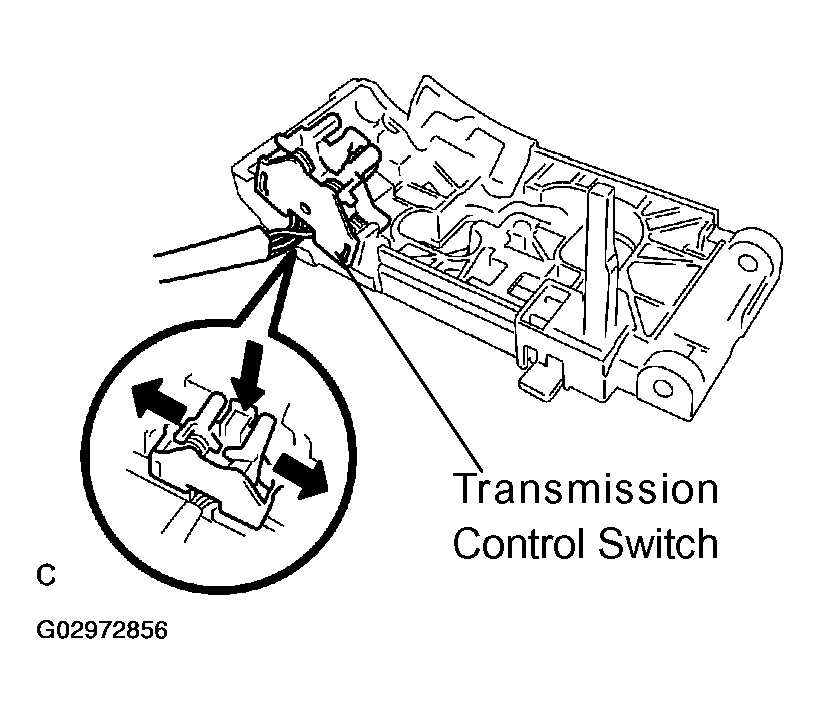

   Fig 17: Removing Transmission Control Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transmission control switch to the shift lever guide housing.

   HINT:

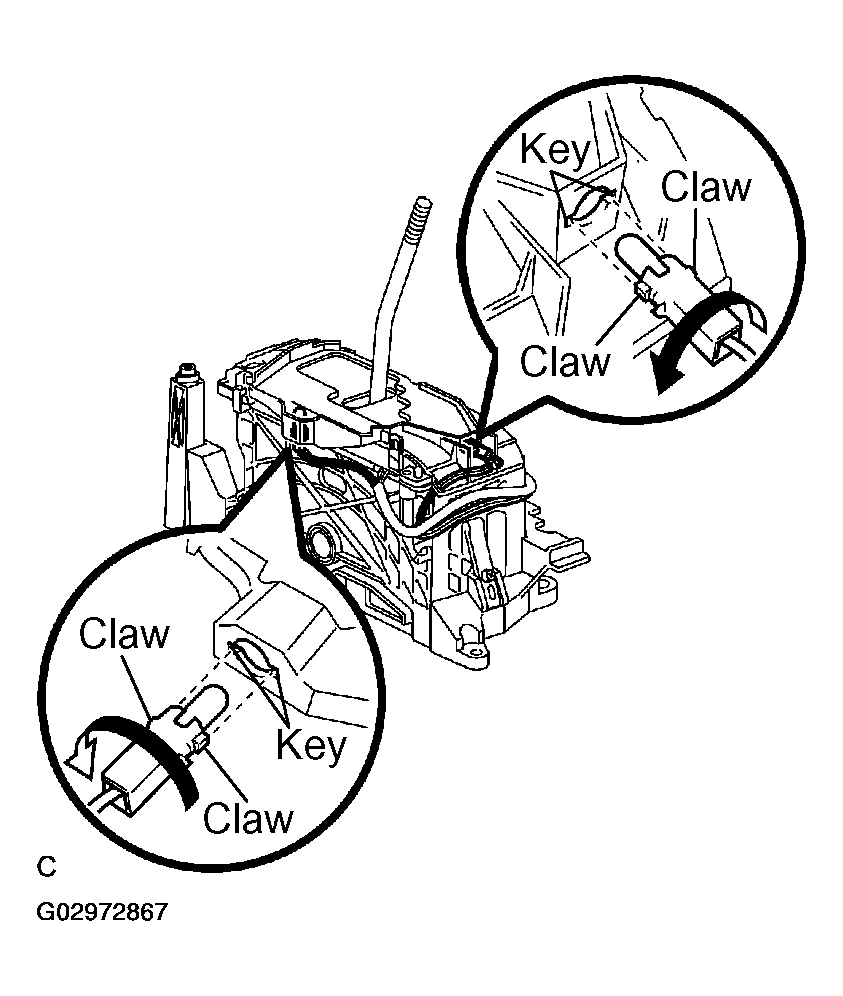

   Securely engage the claws.

   Fig 18: Installing Transmission Control Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

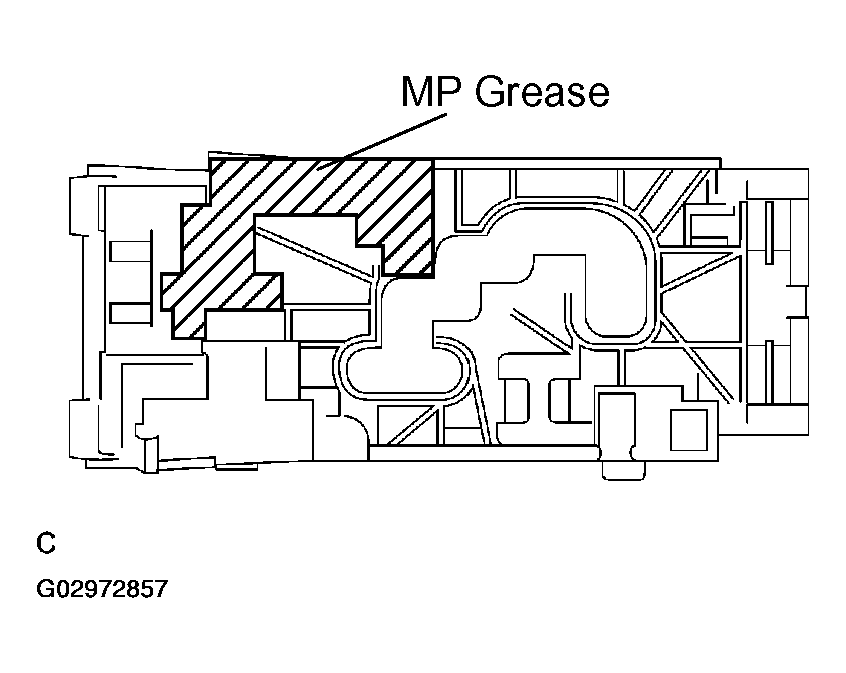

1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in Fig 19 .
   Fig 19: Applying MP Grease To Hatched Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock solenoid with the screw.
   Fig 20: Installing Shift Lock Solenoid Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the lock pin and a new shift lever nut.
   NOTE:

   • Install the shift lever nut and lock pin after engaging the 2 claws.
   • Securely engage the claws.
   Fig 21: Installing Shift Lever Guide Housing Lock Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

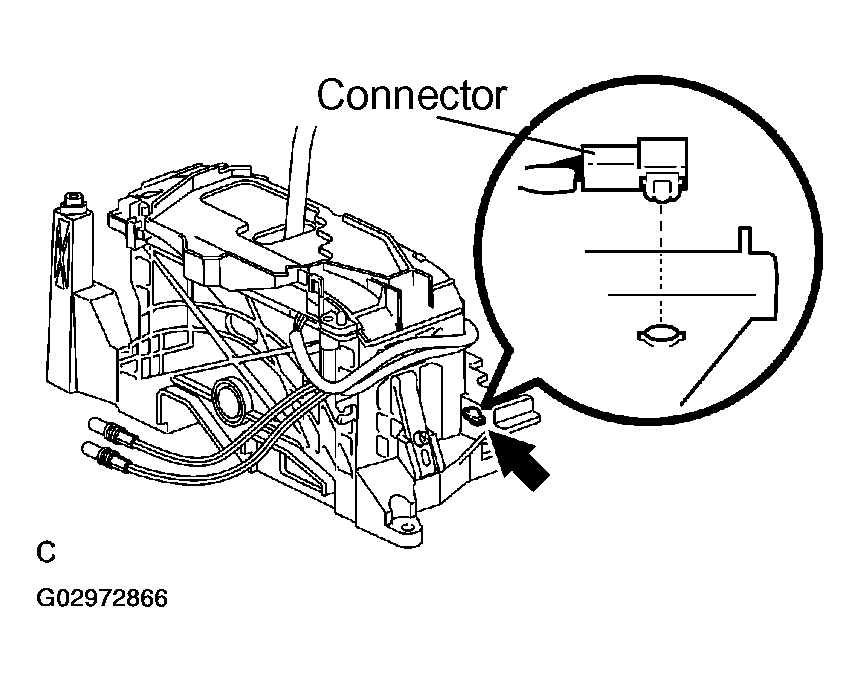

1. Install the shift lock control ECU sub-assy.
2. Connect the connector to the shift lock control ECU sub-assy.
   Fig 22: Connecting Connector To Shift Lock Control ECU Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the shift lock release button and spring in Fig 23 .
   Fig 23: Applying MP Grease To Shift Lock Release Button And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock release button and spring to the floor shift assy.

   HINT:

   Securely engage the claws.

1. Install position indicator slide cover No. 2 to the position indicator slide cover.
   Fig 24: Installing Position Indicator Slide Cover No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator slide cover to the shift lever guide housing.
   Fig 25: Installing Position Indicator Slide Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the position indicator housing upper to the shift lever guide housing.

   HINT:

   Securely engage the claws.

   Fig 26: Installing Position Indicator Housing Upper To Shift Lever Guide Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.

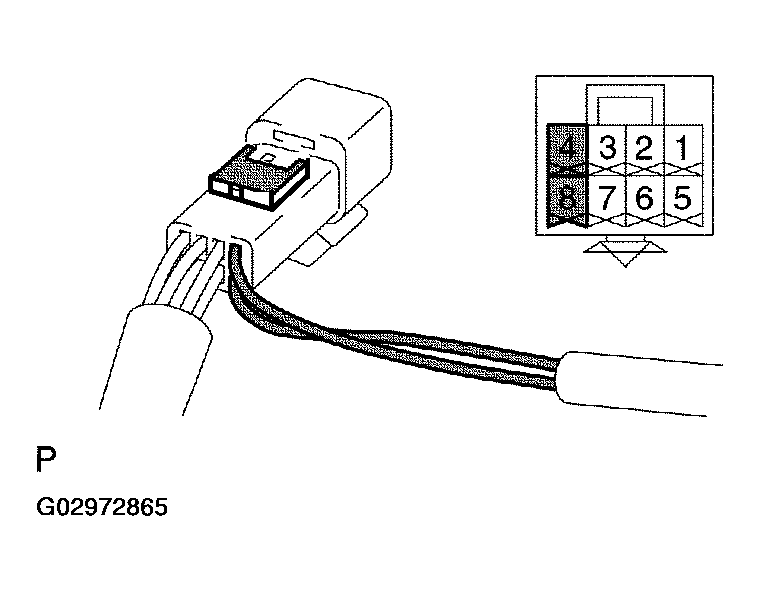

   Fig 27: Connecting Terminal To Transmission Control Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator light bulb to the indicator light wire.
3. Install the position indicator bulb cap to the position indicator light bulb.
4. Install the transmission control switch connector.
   Fig 28: Installing Transmission Control Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the indicator light wire to the position indicator housing upper.
   NOTE: Make sure that the indicator light wire is securely installed to the position indicator housing upper.
   Fig 29: Installing Indicator Light Wire To Position Indicator Housing Upper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift assy with the 4 bolts.

   Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

2. Connect the 2 connectors and clamp to the floor shift assy.
   Fig 30: Installing Floor Shift Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the transmission control cable assy to the transmission floor shift assy.

   HINT:

   • Install it with the uneven surface facing up.
   • Securely engage the claws.
     Fig 31: Installing Transmission Control Cable Assy

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lock release button cover to the position indicator housing assy.
   Fig 32: Installing Shift Lock Release Button Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

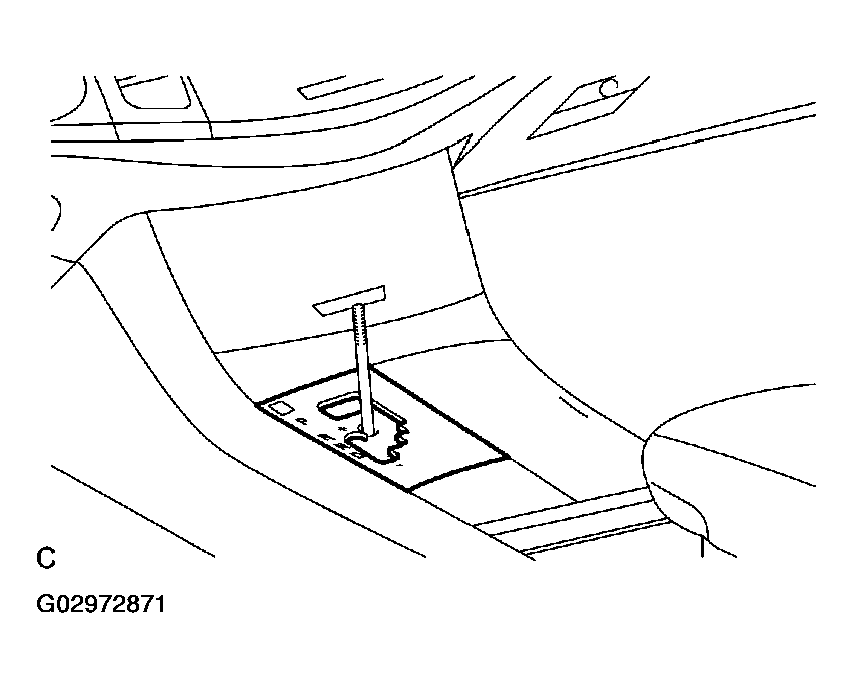

1. Install the position indicator housing.
   Fig 33: Installing Position Indicator Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lever knob sub-assy to the floor shift lever assy.
   Fig 34: Installing Shift Lever Knob Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Some systems need initialization when disconnecting the cable from the negative battery terminal.
