Parking Brake Cable ASSY No.1: Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )
  2. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (SEE  OVERHAUL  )
  3. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (SEE  OVERHAUL  )
  4. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER (SEE  OVERHAUL  )
  5. REMOVE REAR SEAT TRACK BRACKET COVER INNER LH (SEE  OVERHAUL  )
  6. REMOVE FRONT LH SEAT ASSY (SEE  OVERHAUL  )
  7. REMOVE FRONT DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
  8. REMOVE COWL SIDE TRIM SUB-ASSY LH (SEE  REPLACEMENT  )
  9. REMOVE INSTRUMENT SIDE PANEL LH (SEE  REPLACEMENT  )
  10. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (SEE  REPLACEMENT  )
  11. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE  REPLACEMENT  )
  12. REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE  REPLACEMENT  )
  13. REMOVE POSITION INDICATOR HOUSING ASSY (SEE  REPLACEMENT  )
  14. REMOVE CONSOLE BOX UPPER
  15. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
  16. REMOVE CONSOLE BOX ASSY (SEE  REPLACEMENT  )
  17. REMOVE CONSOLE BOX FRONT (SEE  REPLACEMENT  )
  18. REMOVE CONSOLE BOX DUCT NO.1
  19. REMOVE TRANSMISSION FLOOR SHIFT ASSY (SEE  OVERHAUL  )
  20. REMOVE SHIFT & SELECT LEVER SUPPORT (SEE  OVERHAUL  )
  21. DISCONNECT PARKING BRAKE CABLE ASSY NO.4 (SEE  OVERHAUL  )
  22. REMOVE PARKING BRAKE CONTROL PEDAL ASSY (SEE  OVERHAUL  )
  23. REMOVE PARKING BRAKE CABLE ASSY NO.1
    1. Pull up the parking brake pedal claw.
    2. Remove the lock nut and wire adjusting nut No.1 of the parking brake cable assy No.1 from the parking brake pedal assy.
    3. Remove the clip and parking brake cable assy No.1 from the parking brake control pedal assy.

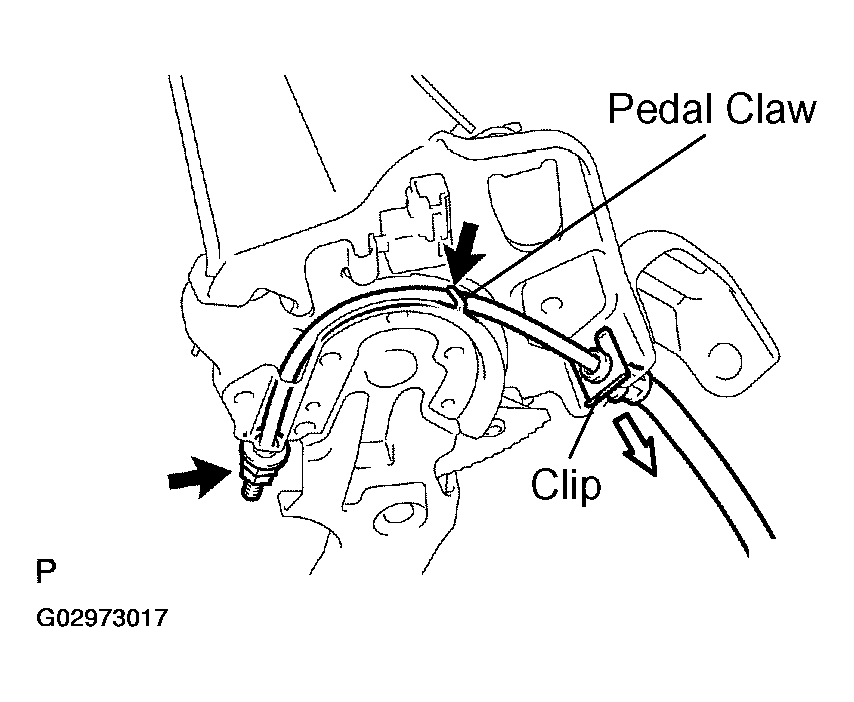

      Fig 1: Removing Parking Brake Cable Assy
      G02973017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL PARKING BRAKE CABLE ASSY NO.1
    1. Pass the parking brake cable assy No.1 through the parking brake control pedal and hold the cable with the clip.
    2. Pass the parking brake cable through the pedal guide. Temporarily tighten the wire adjusting nut No.1 and lock nut.

      HINT:

      Fully tighten the wire adjusting nut No.1 and lock nut when adjusting the parking brake pedal free play.

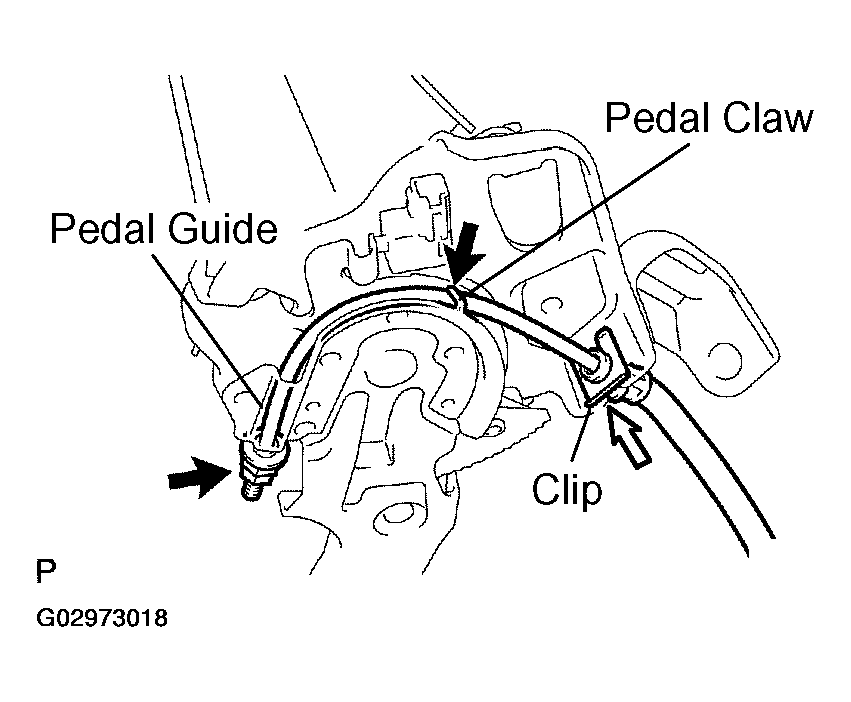

      Fig 2: Tightening Wire Adjusting Nut And Lock Nut
      G02973018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Fully bend the parking brake pedal claw.
  25. INSTALL PARKING BRAKE CONTROL PEDAL ASSY (SEE  OVERHAUL  )
  26. INSTALL PARKING BRAKE CABLE ASSY NO.4 (SEE  OVERHAUL  )
  27. INSTALL SHIFT & SELECT LEVER SUPPORT (SEE  OVERHAUL  )
  28. INSTALL TRANSMISSION FLOOR SHIFT ASSY (SEE  OVERHAUL  )
  29. INSTALL CONSOLE BOX DUCT NO.1
  30. INSTALL CONSOLE BOX FRONT
  31. INSTALL CONSOLE BOX ASSY
  32. INSTALL CONSOLE PANEL SUB-ASSY UPPER
  33. INSTALL CONSOLE BOX UPPER
  34. INSTALL POSITION INDICATOR HOUSING ASSY
  35. INSTALL SHIFT LEVER KNOB SUB-ASSY
  36. INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE  REPLACEMENT  )
  37. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
  38. INSTALL INSTRUMENT SIDE PANEL LH
  39. INSTALL COWL SIDE TRIM SUB-ASSY LH
  40. INSTALL FRONT DOOR SCUFF PLATE LH
  41. INSTALL FRONT LH SEAT ASSY (SEE  OVERHAUL  )
  42. INSTALL REAR SEAT TRACK BRACKET COVER INNER LH
  43. INSTALL FRONT SEAT TRACK COVER LH REAR OUTER
  44. INSTALL SEAT TRACK BRACKET COVER INNER FRONT LH
  45. INSTALL SEAT TRACK BRACKET COVER OUTER FRONT LH
  46. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  47. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
  48. INSPECT SRS WARNING LIGHT
  49. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL (SEE  ADJUSTMENT  )
