Camshaft (LH Bank) (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  3. REMOVE FRONT WHEEL RH
  4. REMOVE V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  5. REMOVE RADIATOR HOSE INLET
  6. REMOVE IGNITION COIL ASSY
  7. REMOVE CYLINDER HEAD COVER SUB-ASSY LH (See  ADJUSTMENT   )
  8. REMOVE FRONT FENDER APRON SEAL RH
  9. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  10. REMOVE VANE PUMP V BELT (See  REPLACEMENT   )
  11. REMOVE ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  12. REMOVE ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  13. REMOVE GENERATOR BRACKET NO. 2 (See  REPLACEMENT   )
  14. REMOVE CRANKSHAFT PULLEY (See  REPLACEMENT   )

    SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

  15. REMOVE TIMING BELT NO. 1 COVER
  16. REMOVE TIMING BELT NO. 2 COVER (See  REPLACEMENT   )
  17. REMOVE ENGINE MOUNTING BRACKET RH (See  REPLACEMENT   )
  18. REMOVE TIMING BELT GUIDE NO. 2
  19. REMOVE TIMING BELT (See  REPLACEMENT   )
  20. REMOVE TIMING BELT IDLER SUB-ASSY NO. 2
  21. REMOVE CAMSHAFT TIMING PULLEY (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-01000), 09249-63010

  23. REMOVE TIMING BELT NO. 3 COVER (See  REPLACEMENT   )
  24. REMOVE NO. 3 CAMSHAFT SUB-ASSY
    NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being removed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.
    1. Align the timing marks (1 dot marks) of the camshaft drive and driven gears by turning the camshaft with a wrench.

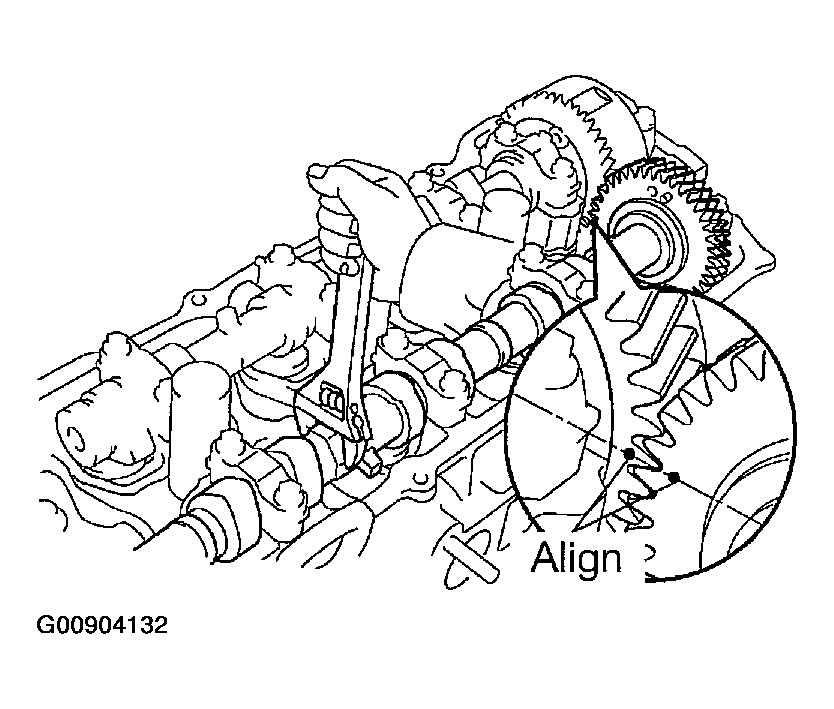

      Fig 1: Identifying Camshaft Gears Timing Mark
      G00904132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Secure the exhaust camshaft sub gear to the main gear with a service bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

      Recommended service bolt

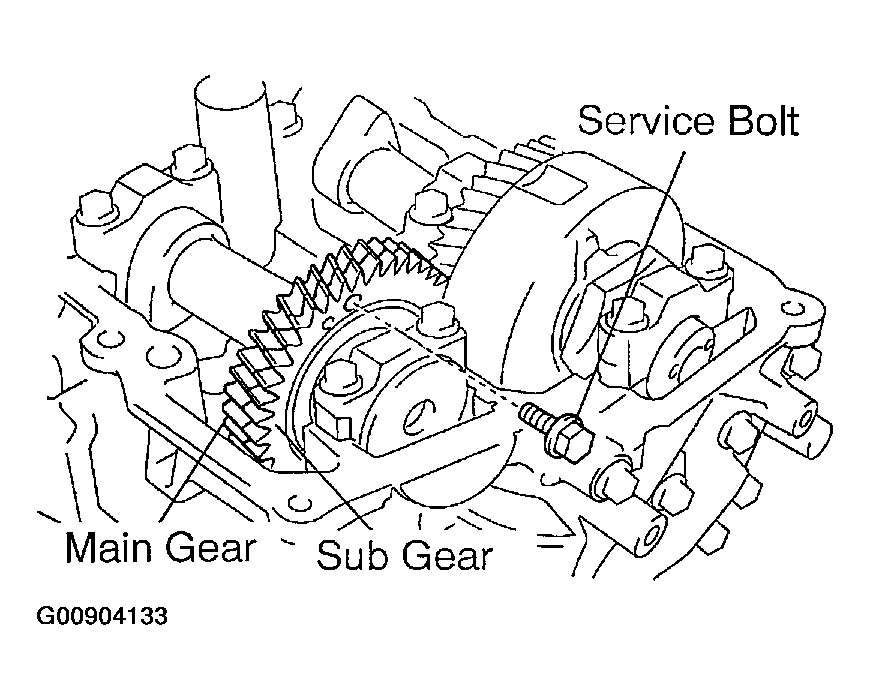

      Fig 2: Identifying Service Bolt
      G00904133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

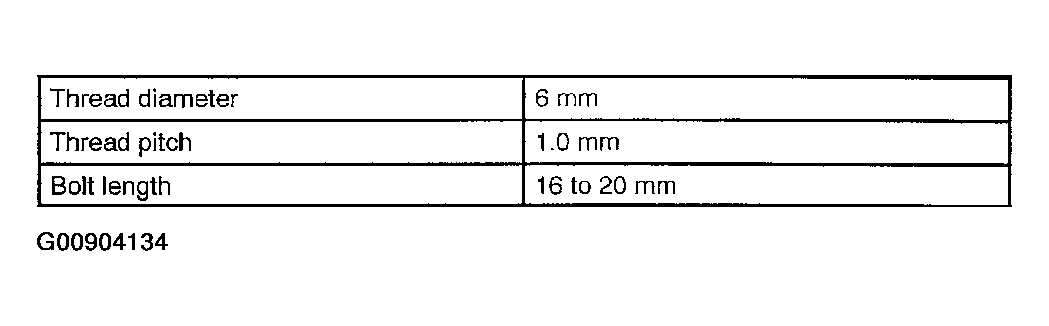

      Fig 3: Service Bolt Specification
      G00904134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When removing the camshaft, make certain that the torsional spring force of the sub gear has been eliminated by installation of the service bolt.

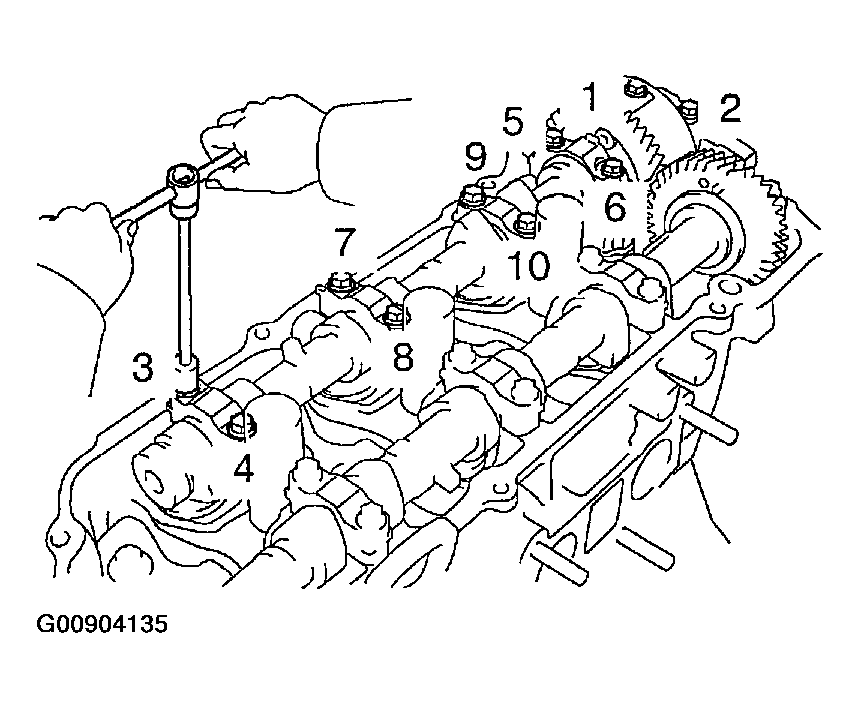

      Fig 4: Identifying Cap Bolts Loosening Sequence
      G00904135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using several steps, loosen and remove the 10 bearing cap bolts uniformly in the sequence shown in the illustration. Remove the 5 bearing caps and No. 3 camshaft.
    NOTE:
    • Do not pry out the camshaft.
    • Be careful not to damage the contact surface of the cylinder head that receives the shaft thrust.

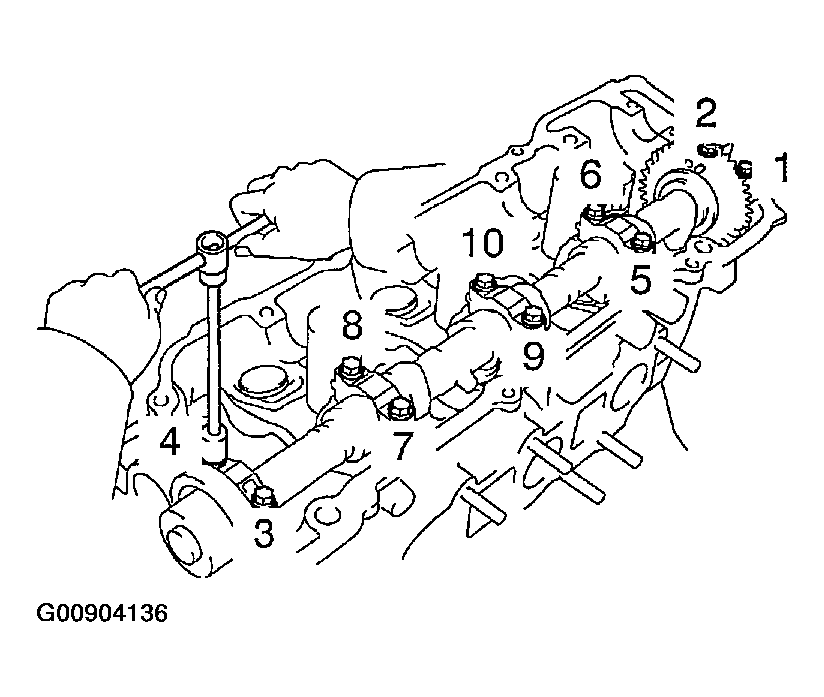

      Fig 5: Identifying Bolts Tightening Sequence
      G00904136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO.4 CAMSHAFT SUB-ASSY
    1. Using several steps, loosen and remove the 10 bearing cap bolts uniformly in the sequence shown in the illustration. Remove the 5 bearing caps and No. 4 camshaft.
      NOTE:
      • Do not pry out the camshaft.
      • Be careful not to damage the contact surface of the cylinder head that receives the shaft thrust.
    2. Remove the oil seal from the No. 4 camshaft.
  26. REMOVE CAMSHAFT TIMING GEAR ASSY (See  REPLACEMENT   )
  27. REMOVE CAMSHAFT SUB GEAR NO. 3 (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-00500)

  28. INSTALL CAMSHAFT SUB GEAR NO. 3 (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-00500)

  29. INSTALL CAMSHAFT TIMING GEAR ASSY (See  REPLACEMENT   )
  30. INSTALL NO.4 CAMSHAFT SUB-ASSY
    NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being installed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.
    1. Apply new engine oil to the thrust portion and journal of the camshaft.

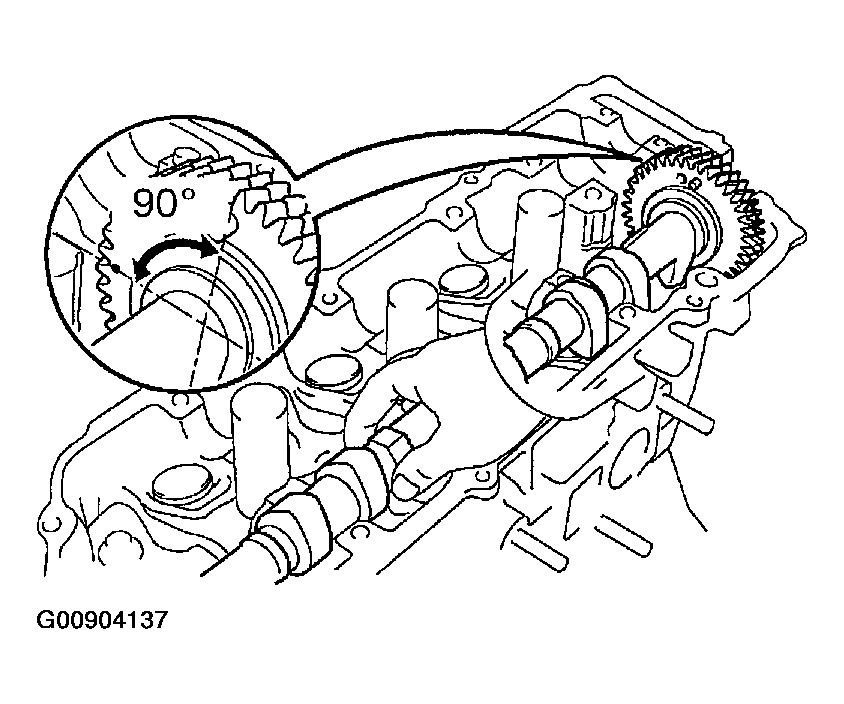

      Fig 6: Placing Camshaft At 90deg Angle Of Timing Mark
      G00904137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place the No. 4 camshaft at a 90° angle of the timing mark (1 dot marks) on the cylinder head.
    3. Apply multi-purpose grease to a new oil seal lip.

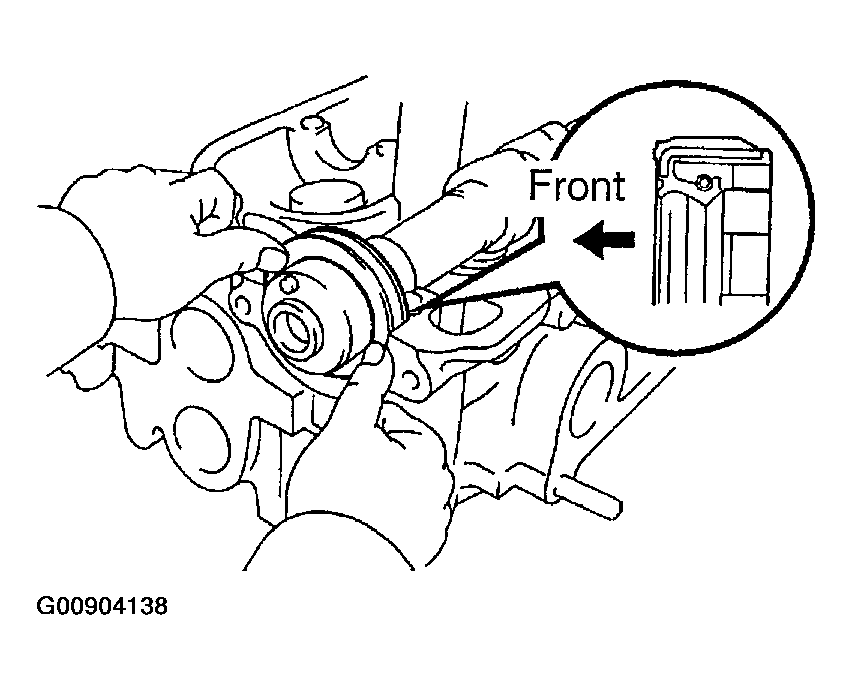

      Fig 7: Identifying Front Side Of Camshaft
      G00904138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the oil seal to the camshaft.
      NOTE:
      • Do not turn over the oil seal lip.
      • Insert the oil seal until it stops.
    5. Remove any old packing material from the contact surface.

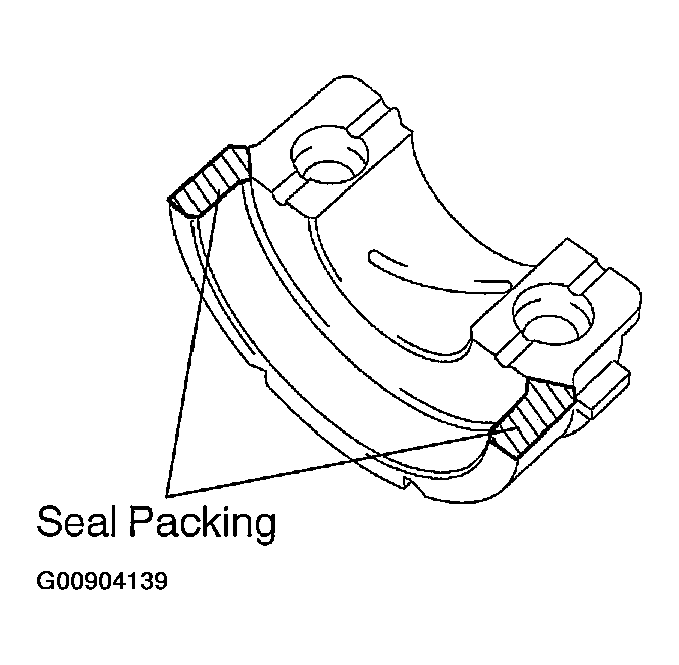

      Fig 8: Identifying Seal Pack Of Bearing
      G00904139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Apply seal packing to the bearing cap No. 1 as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

      NOTE:
      • Install the bearing cap No. 1 within 5 minutes after applying seal packing.
      • Do not expose the seal packing to engine oil within 2 hours after installing.

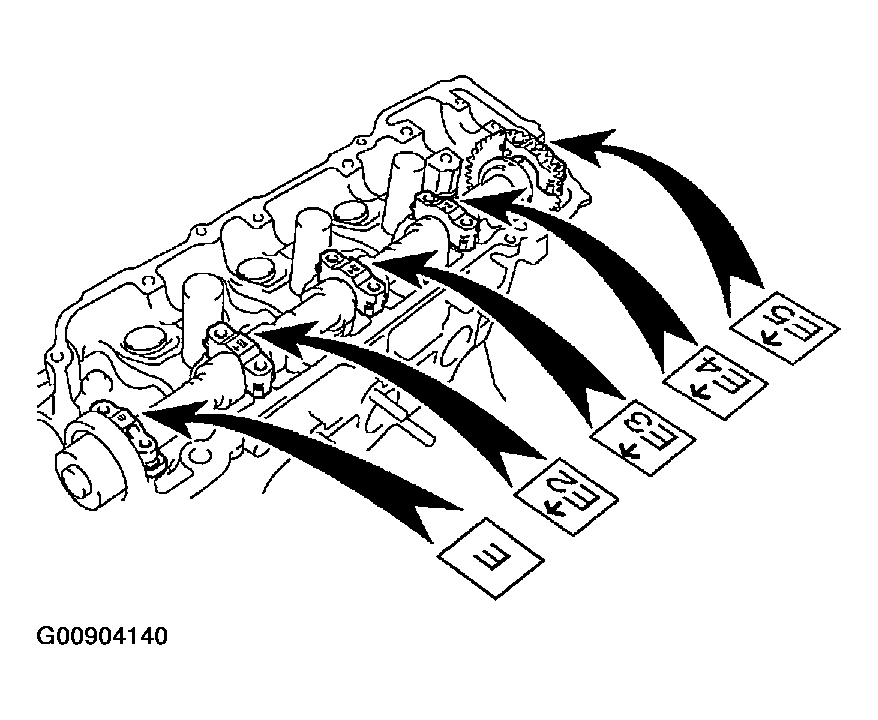

        Fig 9: Installing Bearing Cap
        G00904140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the 5 bearing caps in their proper locations.
    8. Apply a light coat of engine oil to the threads of the bearing cap bolts.

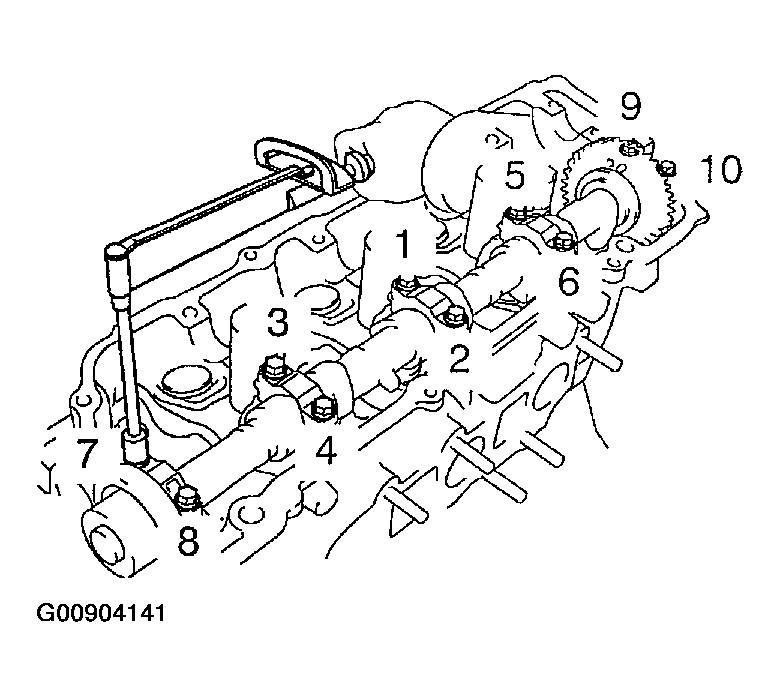

      Fig 10: Installing Tightening Bearing Cap
      G00904141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Using several steps, install and tighten the 10 bearing cap bolts uniformly in the sequence shown in the illustration.

      Torque: 16 N.m (163 kgf.cm, 12 ft.lbf)

  31. INSTALL NO. 3 CAMSHAFT SUB-ASSY
    NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being installed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.
    1. Apply new engine oil to the thrust portion and journal of the camshaft.

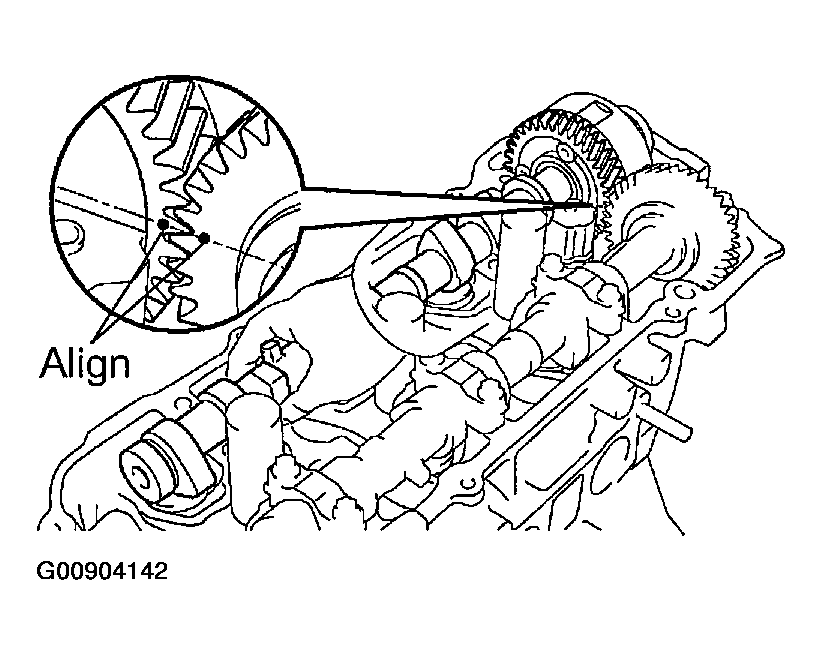

      Fig 11: Aligning Timing Marks
      G00904142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the timing marks (1 dot marks) of the camshaft drive and driven gears.
    3. Place the camshaft to the cylinder head.

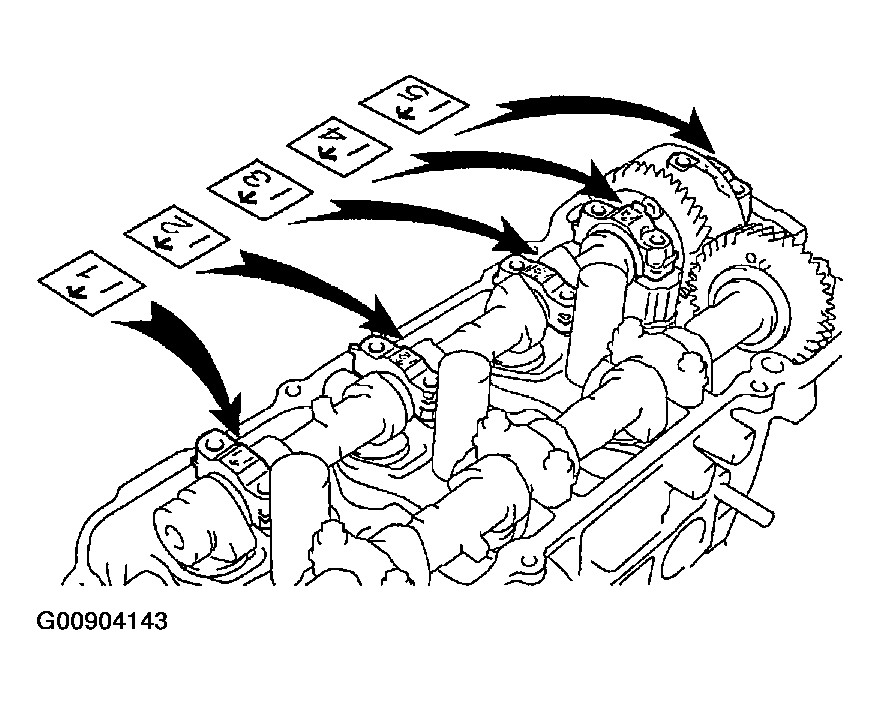

      Fig 12: Installing Bearing Caps
      G00904143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 5 bearing caps in their proper locations.
    5. Apply a light coat of engine oil to the threads of the bearing cap bolts.

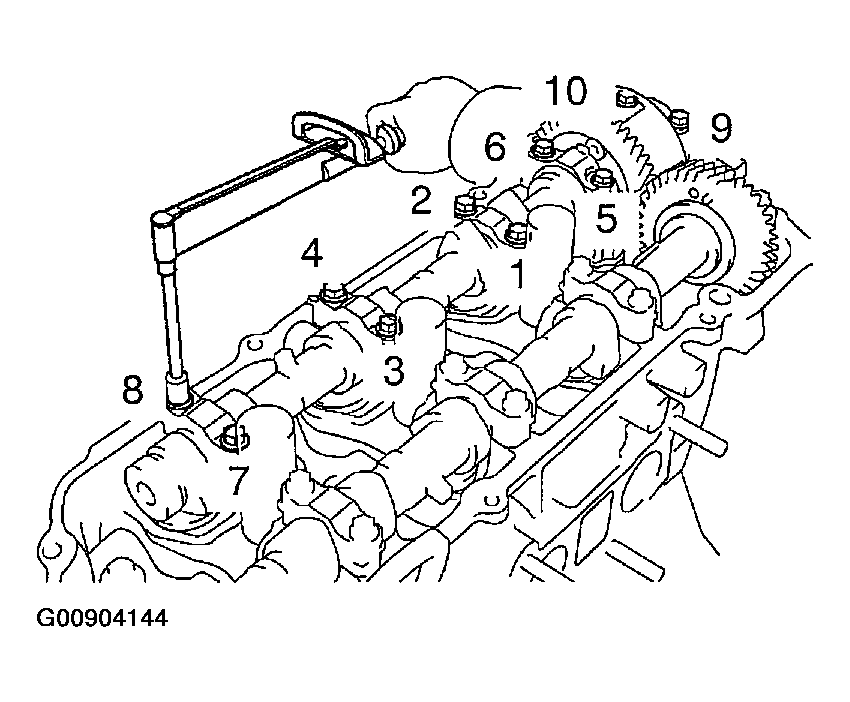

      Fig 13: Installing And Tightening Bearing Cap Bolts
      G00904144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using several steps, install and tighten the 10 bearing cap bolts uniformly in the sequence shown in the illustration.

      Torque: 16 N.m (163 kgf.cm, 12 ft.lbf)

    7. Remove the service bolt.
  32. INSTALL TIMING BELT NO. 3 COVER (See  REPLACEMENT   )
  33. INSTALL CAMSHAFT TIMING PULLEY (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-01000), 09249-63010

  34. INSTALL TIMING BELT IDLER SUB-ASSY NO. 2 (See  REPLACEMENT   )
  35. INSPECT TIMING BELT (See  REPLACEMENT   )
  36. INSTALL TIMING BELT (See  REPLACEMENT   )

    SST 09960-10010 (09962-01000, 09963-01000)

  37. INSTALL TIMING BELT TENSIONER ASSY (See  REPLACEMENT   )
  38. INSTALL TIMING BELT GUIDE NO. 2 (See  REPLACEMENT   )
  39. INSTALL ENGINE MOUNTING BRACKET RH (See  REPLACEMENT   )
  40. INSTALL TIMING BELT NO. 2 COVER (See  REPLACEMENT   )
  41. INSTALL TIMING BELT NO. 1 COVER (See  REPLACEMENT   )
  42. INSTALL CRANKSHAFT PULLEY (See  REPLACEMENT   )

    SST 09213-54015 (91651-60855), 09330-00021

  43. INSTALL GENERATOR BRACKET NO. 2 (See  REPLACEMENT   )
  44. INSTALL ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  45. INSTALL ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  46. INSPECT VALVE CLEARANCE (See  ADJUSTMENT   )
  47. ADJUST VALVE CLEARANCE (See  ADJUSTMENT   )

    SST 09248-55040 (09248-05410, 09248-05420)

  48. INSTALL VANE PUMP V BELT (See  REPLACEMENT   )
  49. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  50. INSPECT DRIVE BELT DEFLECTION AND TENSION (See  INSPECTION   )
  51. INSTALL CYLINDER HEAD COVER SUB-ASSY LH (See  ADJUSTMENT   )
  52. INSTALL IGNITION COIL ASSY (See  ADJUSTMENT   )
  53. INSTALL V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  54. INSTALL FRONT WHEEL RH (See  REPLACEMENT   )
  55. ADD ENGINE COOLANT (See  REPLACEMENT  )
  56. CHECK FOR ENGINE COOLANT LEAKS (See  INSPECTION  )
  57. SYSTEM INITIALIZATION (See  PRECAUTION  )
