Shifter Fork and Rod: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>SWITCHES AND HARNESS>REMOVAL
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSFER CASE AND EXTENSION CASE>REMOVAL
  4. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION CASE>REMOVAL
  5. Remove the drive pinion shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>DRIVE PINION SHAFT>REMOVAL
  6. Remove the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>MAIN SHAFT>REMOVAL
  7. Remove the front differential assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>FRONT DIFFERENTIAL>REMOVAL
  8. Remove the reverse idler gear assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>REVERSE IDLER GEAR>REMOVAL

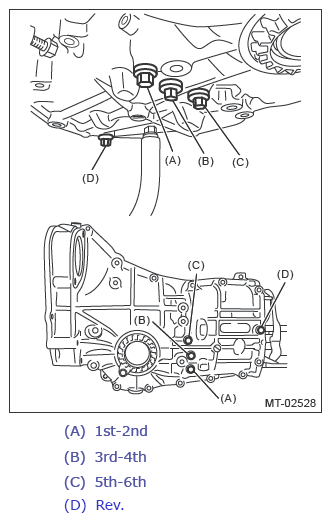

  9. Remove the check ball plugs, check ball springs and check balls.
    G14611898Courtesy of SUBARU OF AMERICA, INC.

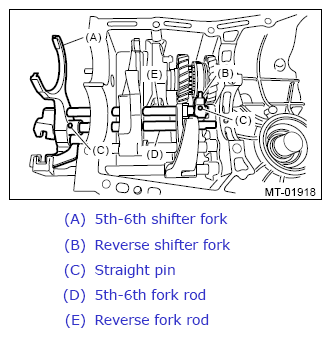

  10. Use the ST (REMOVER) to push out the straight pin of 5th-6th shifter fork and reverse shifter fork, and remove the 5th-6th shifter fork, reverse shifter fork, 5th-6th fork rod and reverse fork rod.
    CAUTION:

    Since removing in the neutral position is impossible due to the narrow clearance to the transmission case, set the gear into the reverse position when tapping out the straight pin.

    G14611899Courtesy of SUBARU OF AMERICA, INC.

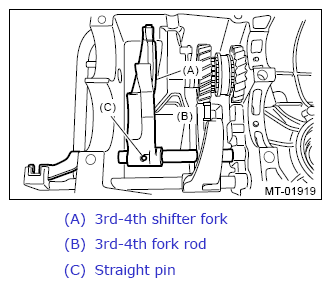

  11. Drive out the straight pin by tapping with the ST (REMOVER), and remove the 3rd-4th shifter fork and 3rd-4th fork rod.
    CAUTION:

    When removing the 3rd-4th fork rod, set the other fork rods in neutral position.

    G14611900Courtesy of SUBARU OF AMERICA, INC.

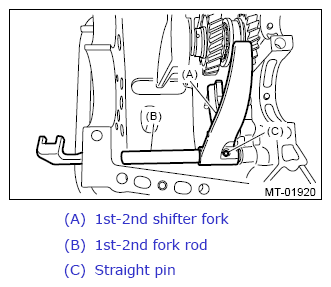

  12. Drive out the straight pin by tapping with the ST (REMOVER), and remove the 1st-2nd shifter fork and 1st-2nd fork rod.
    G14611901Courtesy of SUBARU OF AMERICA, INC.
