Drive Pinion Shaft: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL
  2. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSFER CASE AND EXTENSION CASE>REMOVAL
  3. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION CASE>REMOVAL

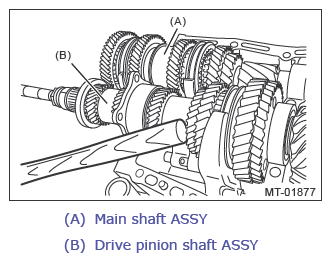

  4. Remove the drive pinion shaft assembly.
    NOTE:

    Use a hammer handle, etc. to remove if too tight.

    G14611802Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>MAIN SHAFT>REMOVAL
