Forward Clutch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>AIR BREATHER HOSE>REMOVAL .
  3. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>CONTROL VALVE BODY>REMOVAL .
  4. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION HARNESS>REMOVAL .
  5. Remove the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TURBINE SPEED SENSOR>REMOVAL .
  6. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>SECONDARY SPEED SENSOR>REMOVAL .
  7. Remove the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PRIMARY SPEED SENSOR>REMOVAL .
  8. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>INHIBITOR SWITCH>REMOVAL .
  9. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>ELECTRIC FLUID PUMP>REMOVAL .
  10. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>EXTENSION CASE>REMOVAL .
  11. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER CLUTCH>REMOVAL .
  12. Remove the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER DRIVEN GEAR>REMOVAL .
  13. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PARKING PAWL>REMOVAL .
  14. Remove the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REDUCTION DRIVEN GEAR>REMOVAL .
  15. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>OIL PAN>REMOVAL .
  16. Remove the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION CONTROL DEVICE>REMOVAL .
  17. Remove the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION CASE>REMOVAL .
  18. Remove the reduction drive gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REDUCTION DRIVE GEAR>REMOVAL .
  19. Remove the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PRIMARY PULLEY AND SECONDARY PULLEY>REMOVAL .
  20. Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>REVERSE BRAKE>REMOVAL .
  21. Remove the thrust bearing.
    G08318048Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the planetary carrier.
    G08318049Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the thrust bearing and sun gear.
    G08318050Courtesy of SUBARU OF AMERICA, INC.
  24. Remove the forward clutch.
    G08318051Courtesy of SUBARU OF AMERICA, INC.

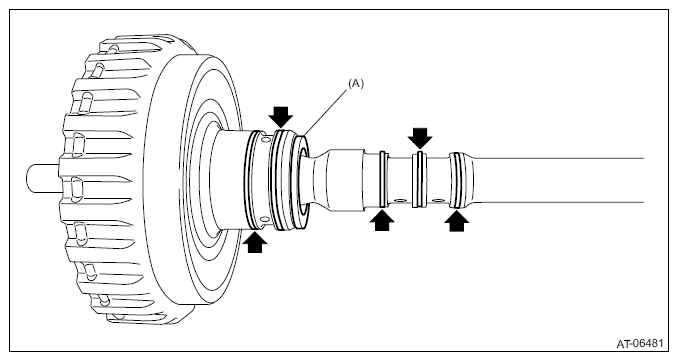

  25. Remove the thrust bearing (A) and seal ring.
G13592279Courtesy of SUBARU OF AMERICA, INC.
