Parking Pawl: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Shift the inhibitor switch to "N range".
    NOTE: Align the holes of the shifter arm and inhibitor switch.
  3. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>ELECTRIC FLUID PUMP>REMOVAL .
  4. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>EXTENSION CASE>REMOVAL .

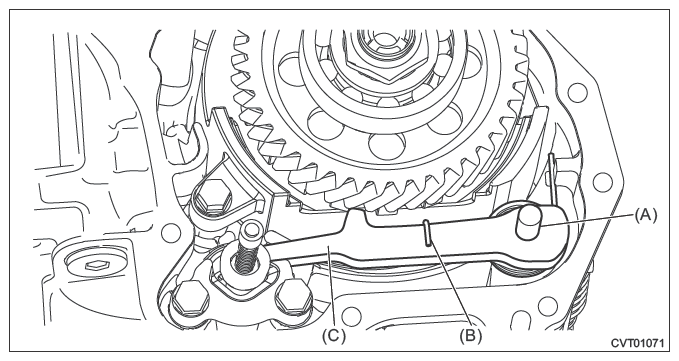

  5. Remove the parking pawl shaft (A), return spring (B) and parking pawl (C).
G13225832Courtesy of SUBARU OF AMERICA, INC.
