Reduction Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>ELECTRIC FLUID PUMP>REMOVAL .
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>EXTENSION CASE>REMOVAL .
  4. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER CLUTCH>REMOVAL .
  5. Remove the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSFER DRIVEN GEAR>REMOVAL .
  6. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>PARKING PAWL>REMOVAL .
  7. Remove the reduction driven gear and oil spacer.

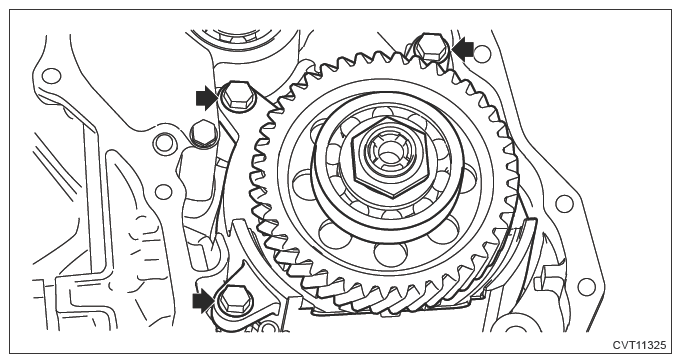

G13225834Courtesy of SUBARU OF AMERICA, INC.
