Cam Carrier RH

Remove the engine from the vehicle. Refer to MECHANICAL(W/O STI)>ENGINE ASSEMBLY>REMOVAL .
Remove the timing chain RH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>REMOVAL>TIMING CHAIN RH .
Remove the rocker cover RH. Refer to MECHANICAL(W/O STI)>ROCKER COVER>REMOVAL>ROCKER COVER RH .
Remove the oil pipe assembly. Refer to LUBRICATION(W/O STI)>OIL PIPE>REMOVAL>OIL PIPE ASSEMBLY .
Remove the clip holding the engine wiring harness from cam carrier RH.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the water pipe hose from oil pan upper and EGR cooler, and remove the water pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.
When disassembling the cam carrier RH
NOTE: When disassembling the cam carrier RH, perform the following steps also.
1. Remove the scavenge pump. Refer to LUBRICATION(W/O STI)>SCAVENGE PUMP>REMOVAL .
2. Remove the cam sprocket RH. Refer to MECHANICAL(W/O STI)>CAM SPROCKET>REMOVAL>CAM SPROCKET RH .
Set the part so that the cam carrier RH is on the upper side.

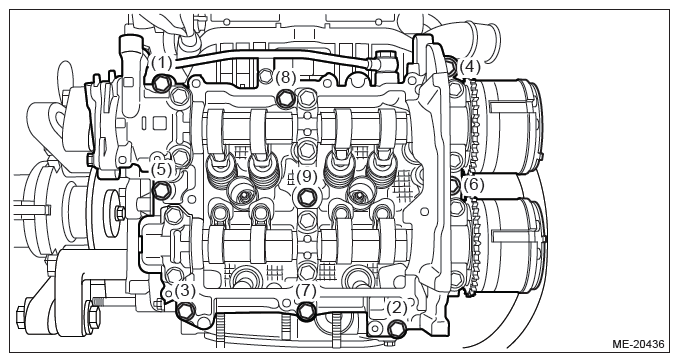

Loosen the bolts holding the cam carrier RH equally, a little at a time in numerical sequence as shown in the figure and remove the cam carrier RH.

Fig 1: Cam Carrier RH Bolts Loosening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring and the roller rocker arm from cylinder head RH.
NOTE: Be careful not to confuse the roller rocker arms.

Courtesy of SUBARU OF AMERICA, INC.
Remove the valve shim and the roller rocker arm pivot from cylinder head RH.
NOTE: Be careful not to confuse the valve shim and the roller rocker arm pivot.

Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from cam carrier RH and cylinder head RH.
