Oil Pipe Assembly

  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Remove the intake duct No. 2. Refer to INTAKE (INDUCTION) (W/O STI)>INTAKE DUCT>REMOVAL>INTAKE DUCT NO. 2 .
  4. Lift up the vehicle.
  5. Disconnect the ground cable (A) from the oil pipe assembly.
  6. Disconnect the engine oil hose (B) from the oil pipe assembly, and drain the engine oil in the oil catch tank.
    NOTE: Prepare the container for draining of engine oil.
    G12442964Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the engine oil hose from the oil catch tank.

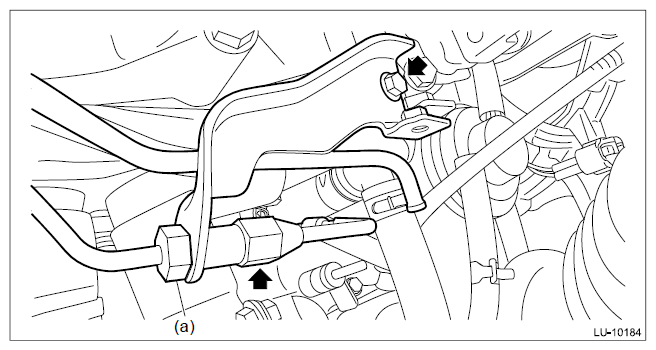

  8. Disconnect the union screw pipe assembly from the oil pipe assembly, and remove the bolt which holds the oil pipe assembly.
    CAUTION: In order to prevent damaging the oil pipe assembly, fix the section (a) shown in the figure when loosing the flare nut on the union screw pipe assembly, and avoid the part from rotating together while loosening the nut.
    G12442965Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the bolt which secures the oil pipe assembly to the cam carrier RH.
    G10267329Courtesy of SUBARU OF AMERICA, INC.
  10. Lower the vehicle.
  11. Remove the union bolts which secure the oil pipe assembly from the scavenge pump and the intake rear camshaft cap RH, and remove the oil pipe assembly.
G09476576Courtesy of SUBARU OF AMERICA, INC.
