Rocker Cover RH

NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the air cleaner case. Refer to INTAKE (INDUCTION) (W/O STI)>AIR CLEANER CASE>REMOVAL .
  2. Remove the #1 ignition coil and the #3 ignition coil. Refer to IGNITION(W/O STI)>IGNITION COIL>REMOVAL .

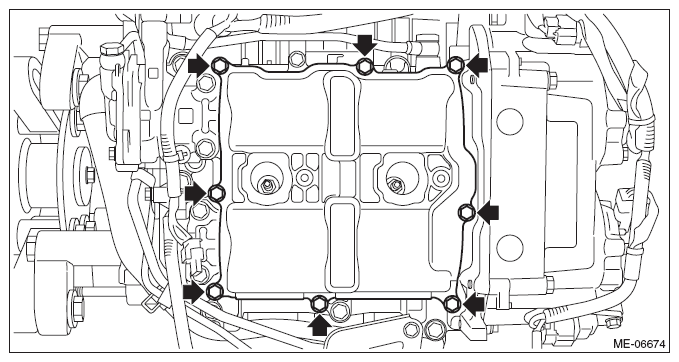

  3. Remove the rocker cover RH.
    G09480356Courtesy of SUBARU OF AMERICA, INC.

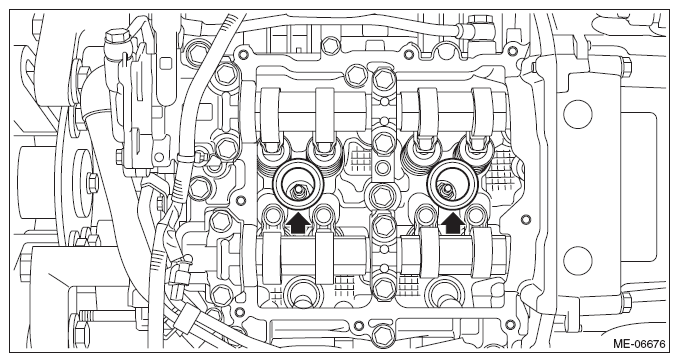

  4. Remove the rocker cover gasket RH, #1 spark plug pipe gasket and #3 spark plug pipe gasket, and remove the liquid gasket.

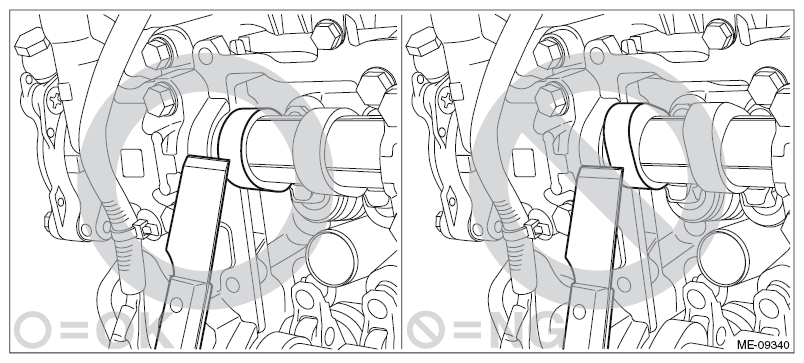

CAUTION:
  • When removing the liquid gasket from engine unit using scraper, use special care not to damage the cam lobe of camshaft RH.
  • If the cam lobe of camshaft RH interferes, turn the crankshaft to the position where the scraper does not touch.
G10291866Courtesy of SUBARU OF AMERICA, INC.
G09480358Courtesy of SUBARU OF AMERICA, INC.
